7Costs to erect, change or remove signs#

All costs associated with the manufacturing and installation of diversion route signing on the state-controlled road network shall be funded by the local Transport and Main Roads regional office. Where a diversion from the state-controlled road network uses the local government road network, Transport and Main Roads shall fund all associated signing works. These arrangements also apply to any subsequent changes, relocation or removal of signs. Where local government develop diversion routes on their road network that do not use state-controlled roads, the local authority is responsible for all associated signage costs

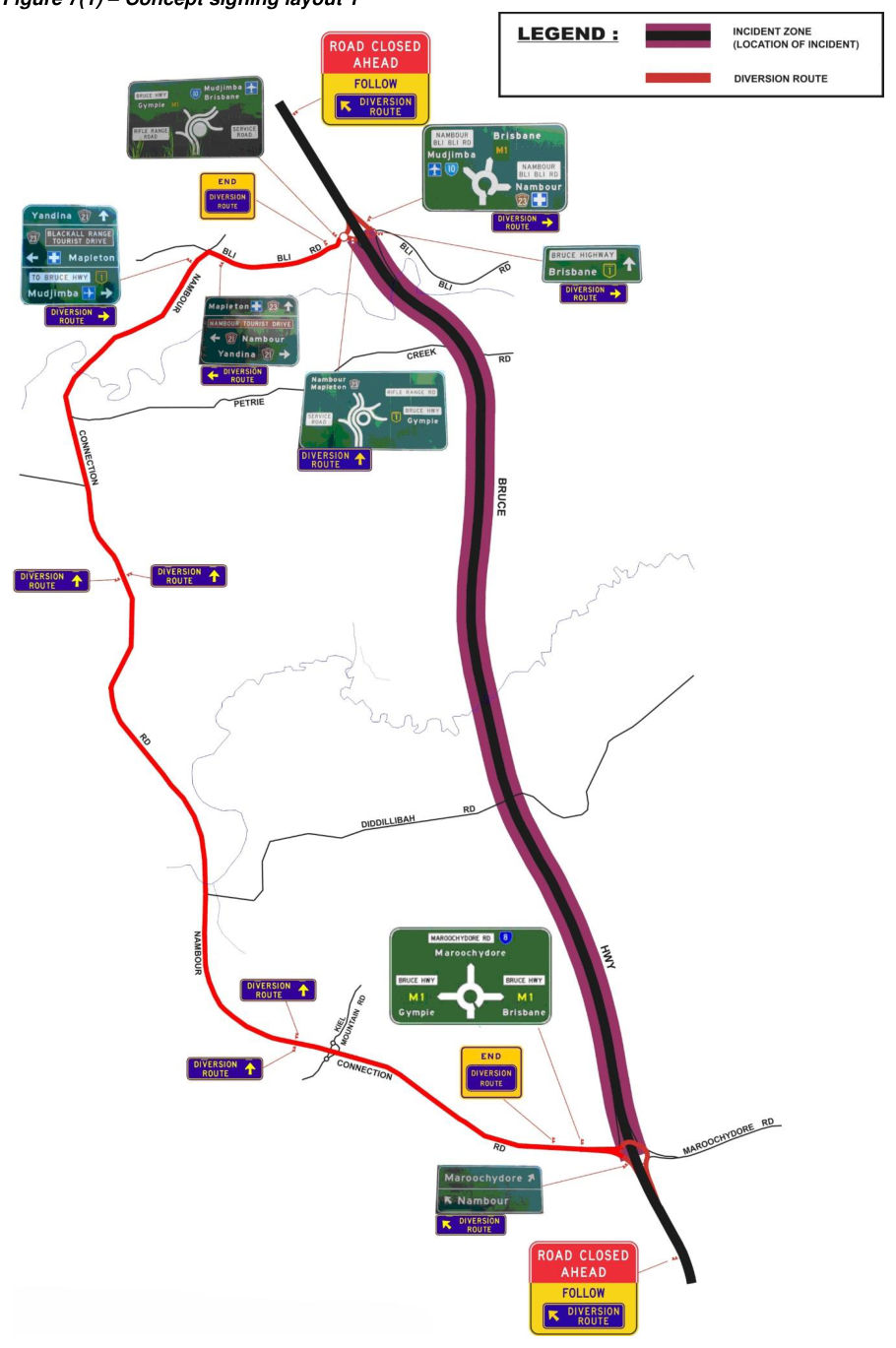

Figure 7(1) – Concept signing layout 1
Figure 7(1) – Concept signing layout 1p. 11

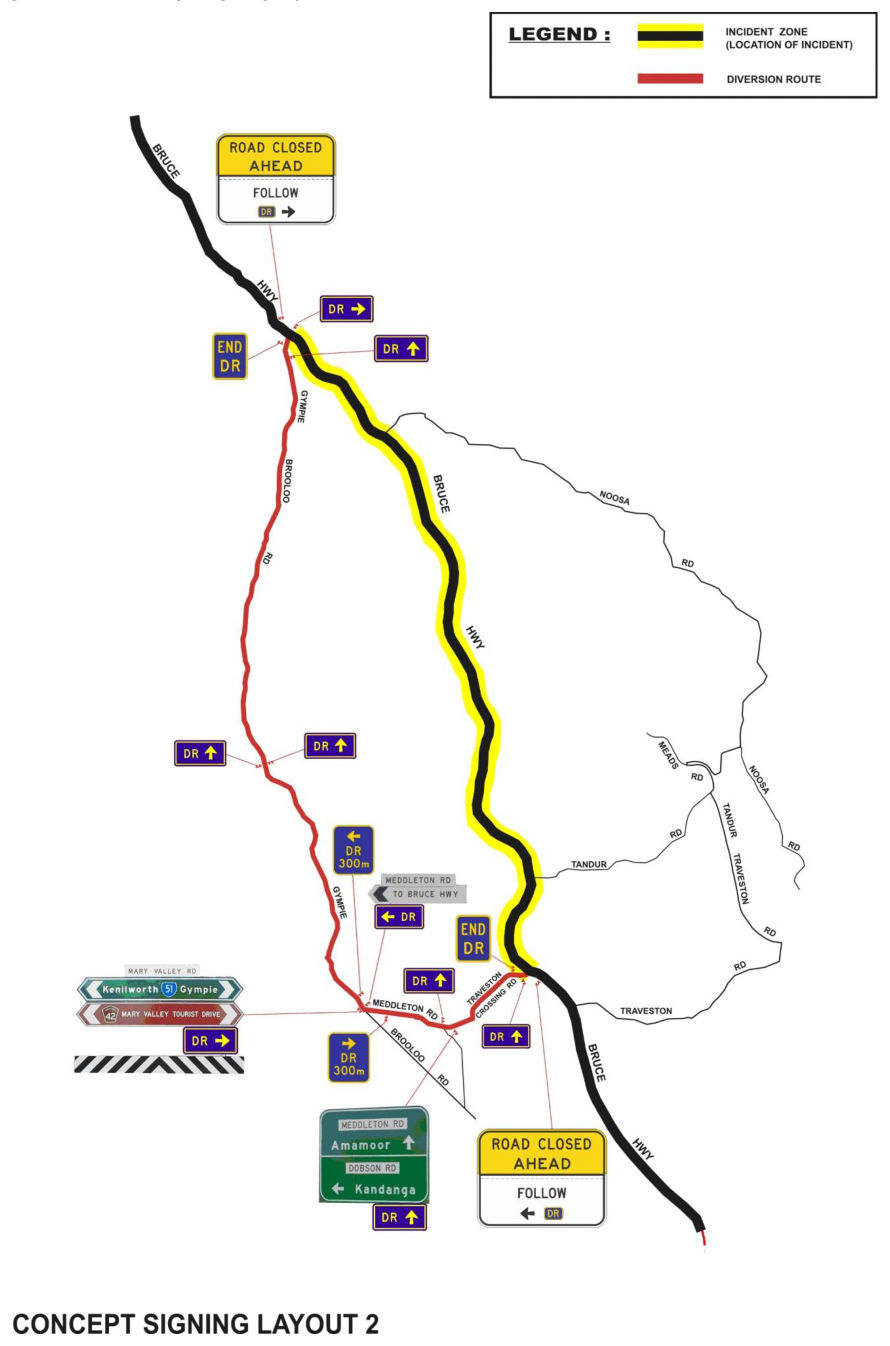

Figure 7(2) – Concept signing layout 2
Figure 7(2) – Concept signing layout 2p. 12

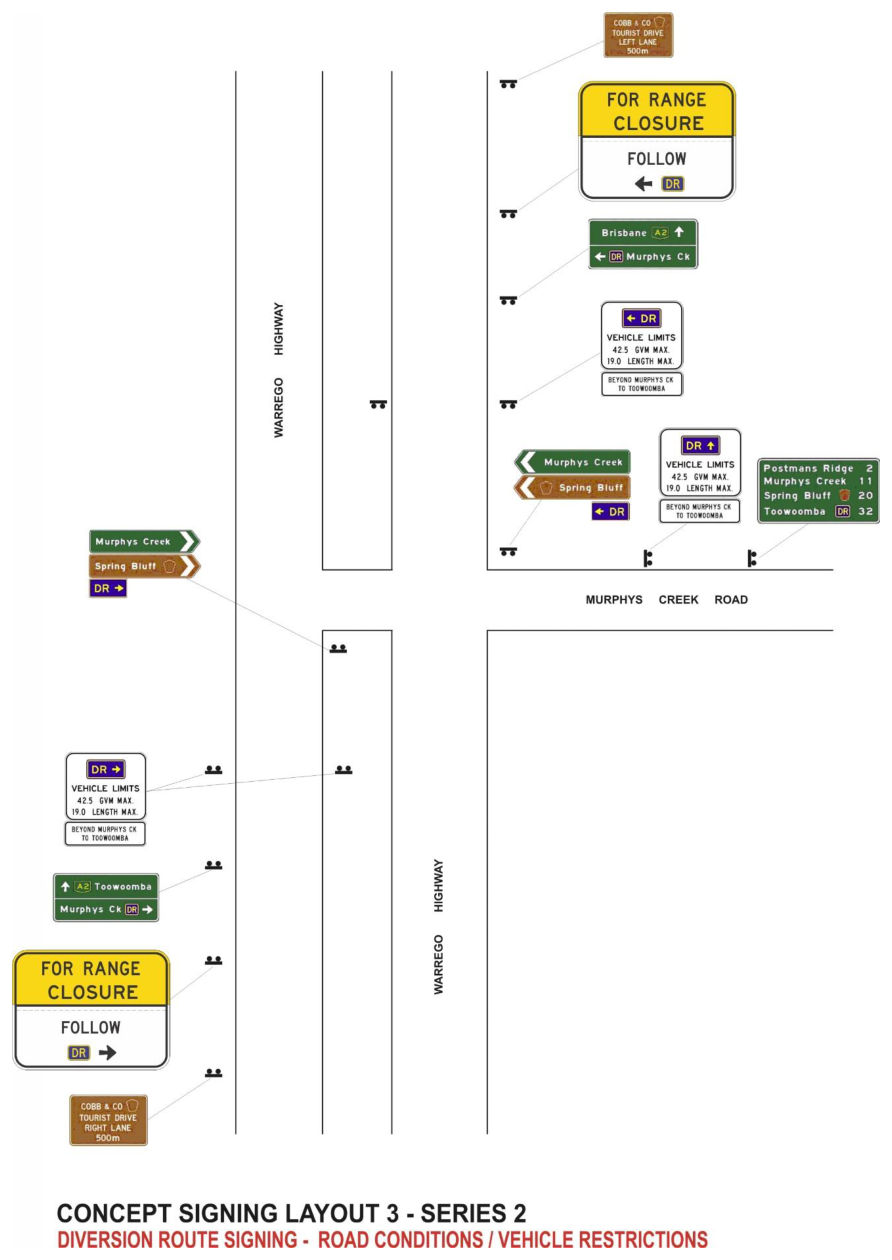

Figure 7(3) – Concept signing layout 3 – Series 2 Diversion route signing – Road conditions / vehicle restrictions
Figure 7(3) – Concept signing layout 3 – Series 2 Diversion route signing – Road conditions / vehicle restrictionsp. 13

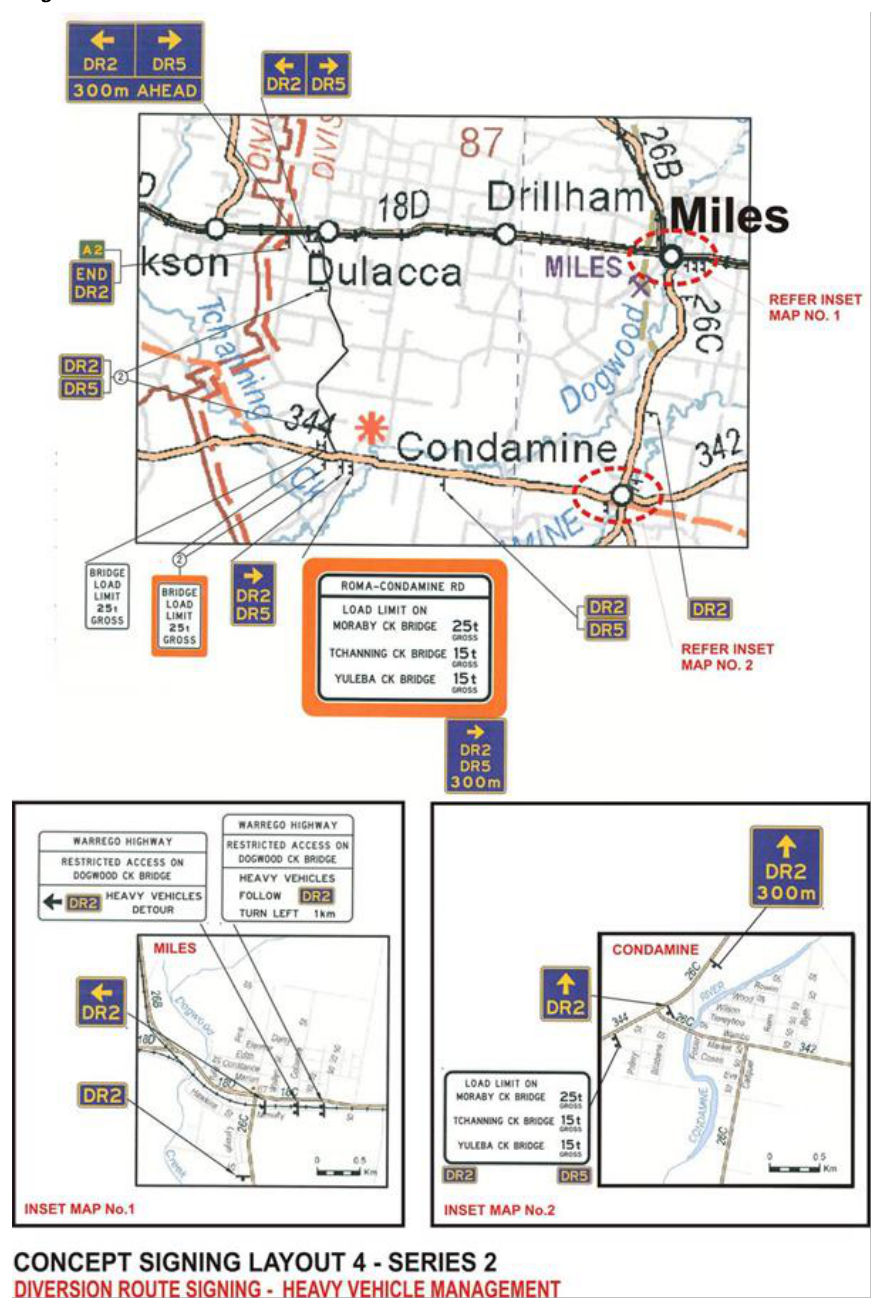

Figure 7(4) – Concept signing layout 4 – Series 2 Diversion route signing – Heavy vehicle management
Figure 7(4) – Concept signing layout 4 – Series 2 Diversion route signing – Heavy vehicle managementp. 14
Source: TRUM Vol 3 Part 9 · pages 10–14 Open PDF at this page Search this document
