14Other signs#
14.1General#
Signs described in this section provide additional guidance to pedestrians and cyclists and are listed in Table 14.1.
| Sign | Sign number | Size, mm | Clause |
|---|---|---|---|
| UNDERPASS SUBJECT TO FLOODING | G9-100-Q01_1 (TC1019) | 750 x 450 | 14.2 (a) |
| PATH SUBJECT TO FLOODING INDICATORS SHOW DEPTH | G9-100-Q01_2 (TC1831) | 750 x 450 | 14.2 (a) |
| PEDESTRIANS MUST CROSS AT SIGNALS | G9-100-Q02_1 (TC9867_1) | A 300 x 225 B 800 x 600 | 14.2 (b) |
| PEDESTRIANS MUST CROSS AT FACILITY | G9-100-Q02_2 (TC9867_2) | A 300 x 225 B 800 x 600 | 14.2 (b) |
| Pedestrian UNDERPASS | G9-100-Q03 (TC1731) | 700 x 600 | 14.2 (c) |
| Pedestrian Direction | G9-100-Q04 (TC1838) | A 600 x 450 B 800 x 600 C 1000 x 750 | 14.2 (d) |
| PEDESTRIANS MUST USE FOOTPATH | G9-100-Q05_1 (TC1839) | A 450 x 300 B 600 x 400 C 750 x 500 | 14.2 (d) |
| PEDESTRIANS MUST USE OVERPASS | G9-100-Q05_2 (TC1839) | A 450 x 300 B 600 x 400 C 750 x 500 | 14.2 (d) |
| SCHOOL WALK STOP | G9-100-Q06_1 (TC1776_1) | 600 x 225 | 14.2 (e) |
| SCHOOL BIKE STOP | G9-100-Q06_2 (TC1776_2) | 600 x 225 | 14.2 (e) |
14.2Signs#
The following signs are approved for use in Queensland:

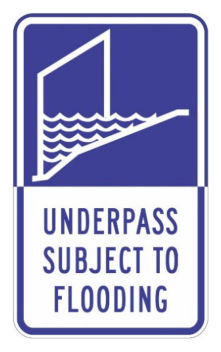

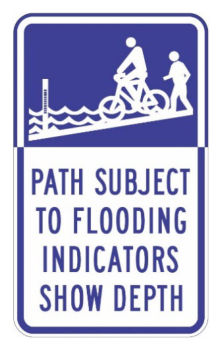

- a)UNDERPASS SUBJECT TO FLOODING (G9-100-Q01_1), PATH SUBJECT TO FLOODING INDICATORS SHOW DEPTH (G9-100-Q01_2)
G9-100-Q01_1 (TC1019) G9-100-Q01_2 (TC1831)
The UNDERPASS SUBJECT TO FLOODING (G9-100-Q01_1) sign shall be used on bikeways and paths at the approach to an underpass where the is a possibility of flooding.
The PATH SUBJECT TO FLOODING INDICATORS SHOW DEPTH (G9-100-Q01_2) sign shall only be used on bikeways and paths where flood depth indicators (G9-22 series) are installed, there is a possibility of flooding, and the pavement has been designed to be trafficable with care both during, and after, inundation.

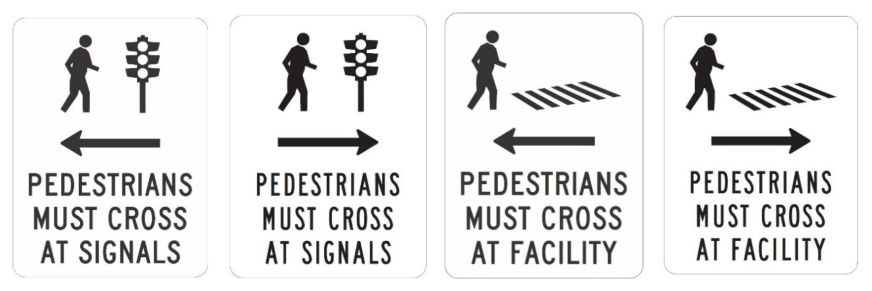

- b)PEDESTRIANS MUST CROSS AT SIGNALS (G9-100-Q02_1), PEDESTRIANS MUST CROSS AT FACILITY (G9-100-Q02_2)
G9-100-Q02_1 (L) G9-100-Q02_1 (R) G9-100-Q02_2 (L) G9-100-Q02_2 (R)
The PEDESTRIANS MUST CROSS AT SIGNALS (G9-100-Q02_1) and PEDESTRIANS MUST CROSS AT FACILITY (G9-100-Q02_2) signs may be used to encourage pedestrians near a pedestrian crossing facility to cross at a designated location. These signs shall not be installed at the designated crossing location itself.
- c)Pedestrian UNDERPASS (G9-100-Q03)
G9-100-Q03 (TC1731)
The Pedestrian UNDERPASS sign may be used on the approach to a pedestrian underpass where the location might not otherwise be apparent.
- d)Pedestrian Direction (G9-100-Q04), PEDESTRIANS MUST USE FOOTPATH (G9-100-Q05_1), PEDESTRIANS MUST USE OVERPASS (G9-100-Q05_2)
G9-100-Q04 (L) G9-100-Q04 (R)
G9-100-Q05_1 G9-100-Q05_2
The Pedestrian Direction (G9-100-Q04) sign may be used where the direction pedestrians should travel might not be apparent.
The PEDESTRIANS MUST USE FOOTPATH (G9-100-Q05_1) and PEDESTRIANS MUST USE OVERPASS (G9-100-Q05_2) signs may be used to supplement the Pedestrian Direction (G9-100-Q04) sign where applicable.

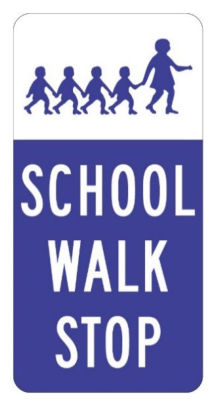

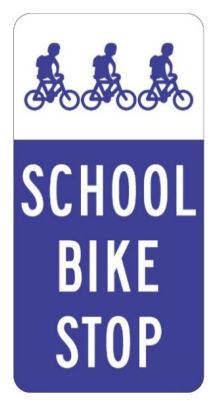

- e)SCHOOL WALK STOP (G9-100-Q06_1), SCHOOL BIKE STOP (G9-100-Q06_2)
G9-100-Q06_1 G9-100-Q06_2
The SCHOOL WALK STOP (G9-100-Q06_1) and SCHOOL BIKE STOP (G9-100-Q06_2) signs should be used to indicate a location point for the assembly / collection of school children participating in a supervised walk or bike ride to / from school as part of the school bike bus or school walking bus program. These signs shall not be installed facing road traffic, so as not to be confused with bus stop signs.
Where Federal Government, State Government, Local Government and school logos are required see G9-100-Q06_3 and G9-100-Q06_4.
