3Linear parking control signs#

3.3Panel components#

3.3.2Type of control#

Where it is required to indicate a 'tow-away' zone on No Stopping or No Parking signs, the words 'TOW AWAY' shall be placed on the relevant panel immediately above the directional arrow on a narrow panel or beside it on a wide panel as shown in Figure 3.3.2.

Alternatively, where it is desired to provide drivers of towed vehicles with contact information for recovery of their vehicles, the TOW AWAY ZONE sign (R5-Q01) may be used in lieu. This sign is mounted immediately below the relevant linear parking control sign as shown in Figure 3.3.2.

3.3.4User limitations#

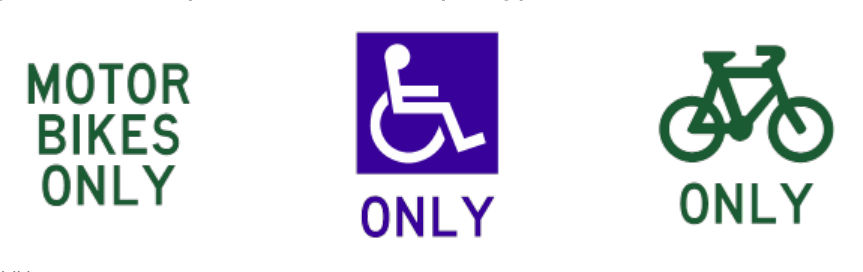

Replace Figure 3.5 with the following Figure 3.3.4(a).

Add the following paragraph to Clause 3.3.4(a)(ii):

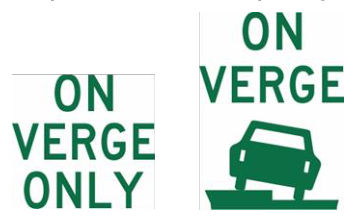

Where parking is required to take place partially clear of the roadway on a verge, nature strip or wide footpath but not in a marked parking bay, the words ON VERGE with the symbol indicating the method of parking shall be placed on the parking panel, as shown in Figure 3.3.4(b).
