Appendix DExamples – design of linear parking control signs (informative)#
D7Example 6: Sign 8 in Figure C2#
D7.1Location description#
Difference
The reference to ‘motor cycles’ in the Australian Standard is replaced with ‘motor bikes’.
D7.2Parking control desired#
Difference
The reference to ‘motor cycles’ in the Australian Standard is replaced with ‘motor bikes’.
D7.4Check of consistency#
Difference
The reference to ‘motor cycles’ in the Australian Standard is replaced with ‘motor bikes’.
D7.6Panel components#
Difference
Table D7.6 – Panel components
| Component | Details |
|---|---|
| Panel 1 (Wide) | |
| Type of control | No stopping |
| Times | 7–9 AM, MON–FRI |
| Arrow | Double |
| Panel 2 (Narrow) | |
| Type of control | Parking |
| Times | All other times |
| User limitation | Motor bikes only |
| Arrow | Left |
| Panel 3 (Narrow) | |
| Type of control | One hour parking |
| Times | 9 AM–6 PM, MON–FRI 9 AM–12 NOON, SAT |
| Arrow | Right |
Table in words
- Panel 1 (Wide) has type of control No stopping.
- Panel 1 (Wide) has times 7–9 AM, MON–FRI.
- Panel 1 (Wide) has arrow Double.
- Panel 2 (Narrow) has type of control Parking.
- Panel 2 (Narrow) has times All other times.
- Panel 2 (Narrow) has user limitation Motor bikes only.
- Panel 2 (Narrow) has arrow Left.
- Panel 3 (Narrow) has type of control One hour parking.
- Panel 3 (Narrow) has times 9 AM–6 PM, MON–FRI 9 AM–12 NOON, SAT.
- Panel 3 (Narrow) has arrow Right.
D7.8Layout of sign#
Difference

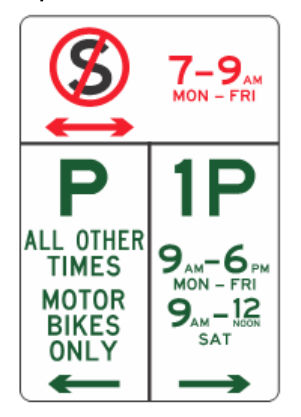

Replace Figure D7 with the following Figure D7.8.
