Colour Legend#

Black (legend)

SCHOOL ZONE TIMES OF OPERATION DETAILS

Department of Transport and Main Roads Infrastructure Management & Delivery Division	ISSUED AS OFFICIAL TRAFFIC SIGN 24/08/26 PRINCIPAL ENGINEER Date (Traffic Engineering Practice)
Designed RH 05/25	Checked DJ 08/26
A	B

SCHOOL ZONE TIMES OF OPERATION DETAILS

A	B	C
a	400	535	800
b	330	440	660
c	25	33	50
d	45D	60D	90D
e	75	100	150
f	120C	160C	240C
g	40	54	80
k	24	33	48
m	110	147	220
n	30	40	60
o	42	56	84
p	170	226	340

Colour Legend

Class 400 retroreflective white (background) Black (legend)

Department of Transport and Main Roads Infrastructure Management & Delivery Division ISSUED AS OFFICIAL TRAFFIC SIGN 24/08/26 PRINCIPAL ENGINEER Date (Traffic Engineering Practice) R4-040-Q02 4 _ Page 4 of 4 Designed RH 05/25 Checked DJ 08/26 Scale Not to Scale

ENHANCED SCHOOL ZONE SPEED LIMIT

A	B	C
a	450	600	900
b	1600	2200	3200
c	300	400	600
d	500	700	1000
e	600	800	1200
f	4	5	8
g	12	15	24
h	200	300	400
k	50	75	100
m	225	300	450
n	100	150	200
o	150	230	300
p	200D	240D	400D
q	325	427	650
r	45	60	90
r 1	185	237	365
r 2	220	297	445
s	40	60	80
t	75D	100D	150D
u	45	53	90
v	120C	160C	240C
w	60C	80C	120C
x	45C	60C	90C
y	40	54	80
z	45	53	90
a 1	600	800	1200
b 1	1750	2400	3500
c 1	75	100	150
r3	75	100	150

A	B	C
a	450	600	900
b	300	400	600
c	8	10	12
d	55	72	110
e	75D	100D	150D

Notes

LED details and locations are indicative and should be approved according to standard display requirements for proper recognition. Four (4) rows of red LED's are required for the annulus. If space is limited in the "A" size sign three (3) rows of red LED's may be considered. When the school zone reduced speed limit is in operation, the inner 2 rings of the red annulus LED's are to flash in time with the alternating yellow flashing lanterns. The outer 2 rings are to remain static for the duration of the specified time of operation. For all day times style enhanced school zone signs refer to R4-040-Q03 2. For performance and operating specifications refer to MRTS222 and AS5156. * When times are to be expressed in whole hours the "00" minutes notation shall not be shown. See page 3 for details. For guidance on the use of this sign refer to the Queensland MUTCD Part 4.

Colour Legend Class 400 retroreflective white (background) Class 400 retroreflective red (annulus) Red LED display (annulus) Yellow LED display (flashing lanterns) Class 400 retroreflective fluorescent yellow green (school zone plate) Class 400 retroreflective fluorescent orange (target board edge strip) Black (legend & flashing lantern background)

Department of Transport and Main Roads Infrastructure Management & Delivery Division ISSUED AS OFFICIAL TRAFFIC SIGN 24/08/26 PRINCIPAL ENGINEER Date (Traffic Engineering Practice) R4-040-Q03 1 _ Page 1 of 3 Designed RH 04/25 Checked DJ 08/26 Scale Not to Scale

A	B	C
a	450	600	900
b	1600	2200	3200
c	300	400	600
d	500	726	1000
e	600	800	1200
f	4	5	8
g	12	15	24
h	200	274	400
k	50	62	100
m	225	300	450
n	100	150	200
o	150	243	300
p	200D	240D	400D
q	245	317	490
r	45	60	90
r 1	185	237	365
r 2	220	297	445
s	40	60	80
s1	120	170	240
t	75D	100D	150D
u	45	53	90
v	120C	160C	240C
w	60C	80C	120C
x	45C	60C	90C
z	125	150	250
a 1	600	800	1200
b 1	1750	2400	3500
c 1	75	100	150
r3	75	100	150

A	B	C
a	450	600	900
b	300	400	600
c	8	10	12
d	55	72	110
e	75D	100D	150D

Notes

LED details and locations are indicative and should be approved according to standard display requirements for proper recognition. Four (4) rows of red LED's are required for the annulus. If space is limited in the "A" size sign three (3) rows of red LED's may be considered. When the school zone reduced speed limit is in operation, the inner 2 rings of the red annulus LED's are to flash in time with the alternating yellow flashing lanterns. The outer 2 rings are to remain static for the duration of the specified time of operation. For split times style enhanced school zone signs refer to R4-040-Q03 1. For performance and operating specifications refer to MRTS222 and AS5156. When times are to be expressed in whole hours the "00" minutes notation shall not be shown. See page 3 for details. For guidance on the use of this sign refer to the Queensland MUTCD Part 4.

ENHANCED SCHOOL ZONE SPEED LIMIT

Department of Transport and Main Roads Infrastructure Management & Delivery Division ISSUED AS OFFICIAL TRAFFIC SIGN 24/08/26 PRINCIPAL ENGINEER Date (Traffic Engineering Practice) R4-040-Q03 2 _ Page 2 of 3 Designed RH 04/25 Checked DJ 08/26 Scale Not to Scale

A	B	C
a	450	600	900
b	300	400	600
c	8	10	12
d	55	72	110
e	75D	100D	150D

z q 7 4 v AM PM x AM PM Option 1* z w 7 930 v AM x AM q y w 2 4 v PM x PM Option 2* z w 730 930 v AM x q AM y w 230 430 v PM x PM Option 3 z w 7 9 v AM x q AM y w 2 430 v PM x PM Option 4* TYPICAL SCHOOL TIME SETOUT OPTIONS

Colour Legend Class 400 retroreflective white (background) Black (legend)

SCHOOL ZONE TIMES OF OPERATION DETAILS

Department of Transport and Main Roads Infrastructure Management & Delivery Division ISSUED AS OFFICIAL TRAFFIC SIGN 24/08/26 PRINCIPAL ENGINEER Date (Traffic Engineering Practice) R4-040-Q03 3 _ Page 3 of 3 Designed RH 04/25 Checked DJ 08/26 Scale Not to Scale

A	B	C
a	450	600	900
b	1600	2200	3200
c	300	400	600
d	500	700	1000
e	600	800	1200
f	4	5	8
g	12	15	24
h	200	300	400
k	50	75	100
m	225	300	450
n	100	150	200
o	150	230	300
p	200D	260D	400D
q	325	427	650
r	45	60	90
r 1	185	237	365
r 2	220	297	445
s	80	110	160
t	80D	110D	160D
u	105	140	210
x	55	72	110
y	75	100	150
a 1	600	800	1200
b 1	1750	2400	3500
c 1	75	100	150
r 3	75	100	150

Notes

LED details and locations are indicative and should be approved according to standard display requirements for proper recognition. Four (4) rows of red LEDs are required for the annulus. If space is limited in the "A" size sign three (3) rows of red LEDs may be considered. When lights are in use on the sign, the inner two (2) rings of the red annulus LEDs are to flash in time with the alternating yellow flashing lanterns. The outer two (2) rings are to remain static for the duration of operation. For performance and operating specifications refer to MRTS222 and AS5156. For use within existing 40 km/h linear and area speed zones where a need for a school zone would have otherwise been established. Flashing lanterns and LEDs shall operate on school days during the school times specified in the relevant Local Government Area (or as otherwise approved for the school). For guidance on the use of this sign refer to the Queensland MUTCD Part 4.

Colour Legend Class 400 retroreflective white (background) Class 400 retroreflective red (annulus) Red LED display (annulus) Yellow LED display (flashing lanterns) Class 400 retroreflective fluorescent yellow green (school plate) Class 400 retroreflective fluorescent orange (target board edge strip) Black (legend & flashing lantern background) Class 400 retroreflective blue

ENHANCED SCHOOL SPEED LIMIT SIGN

Department of Transport and Main Roads Infrastructure Management & Delivery Division ISSUED AS OFFICIAL TRAFFIC SIGN 24/08/26 PRINCIPAL ENGINEER Date (Traffic Engineering Practice) R4-040-Q04 Designed RH 04/25 Checked DJ 08/26 Scale Not to Scale

SCHOOL SPEED LIMIT SIGN (DOUBLE ARROW)

A	B	C
a	450	600	900
b	1400	1900	2800
c	300	400	600
d	500	700	1000
e	600	800	1200
f	4	5	8
g	12	15	24
k	20	27	40
m	60D	80D	120D
n	66	88	132
o	150	230	300
p	200D	260D	400D
q	325	427	650
r	45	60	90
r 1	185	237	365
r 2	220	297	445
s	80	110	160
t	80D	110D	160D
u	105	140	210
x	30	40	60
y	120	160	240
z	45	53	90
a 1	600	800	1200
b 1	1550	2100	3100
c 1	75	100	150
r 3	75	100	150

Table in words

For column A, row a is 450, row b is 1400, row c is 300, row d is 500, row e is 600, row f is 4, row g is 12, row k is 20, row m is 60D, row n is 66, row o is 150, row p is 200D, row q is 325, row r is 45, row r 1 is 185, row r 2 is 220, row s is 80, row t is 80D, row u is 105, row x is 30, row y is 120, row z is 45, row a 1 is 600, row b 1 is 1550, row c 1 is 75 and row r 3 is 75.
For column B, row a is 600, row b is 1900, row c is 400, row d is 700, row e is 800, row f is 5, row g is 15, row k is 27, row m is 80D, row n is 88, row o is 230, row p is 260D, row q is 427, row r is 60, row r 1 is 237, row r 2 is 297, row s is 110, row t is 110D, row u is 140, row x is 40, row y is 160, row z is 53, row a 1 is 800, row b 1 is 2100, row c 1 is 100 and row r 3 is 100.
For column C, row a is 900, row b is 2800, row c is 600, row d is 1000, row e is 1200, row f is 8, row g is 24, row k is 40, row m is 120D, row n is 132, row o is 300, row p is 400D, row q is 650, row r is 90, row r 1 is 365, row r 2 is 445, row s is 160, row t is 160D, row u is 210, row x is 60, row y is 240, row z is 90, row a 1 is 1200, row b 1 is 3100, row c 1 is 150 and row r 3 is 150.

Colour Legend Class 400 retroreflective white Class 400 retroreflective red Black Class 400 retroreflective fluorescent yellow green Class 400 retroreflective fluorescent orange (target board edge strip) Class 400 retroreflective blue

Department of Transport and Main Roads Infrastructure Management & Delivery Division ISSUED AS OFFICIAL TRAFFIC SIGN 24/08/26 PRINCIPAL ENGINEER Date (Traffic Engineering Practice) R4-040-Q05

Designed RH 04/25 Checked DJ 08/26 Scale Not to Scale

CLASS OF VEHICLE SUPPLEMENTARY PLATE

A	b	c	d	e	f	r
A	450	150	5	15	45	60D	25
B	600	200	10	30	60	80D	50
C	900	300	10	30	90	120D	50
D	1200	400	15	45	120	160D	100

Colour Legend Class 400 retroreflective white BUSES TRUCKS Black Examples of use

Department of Transport and Main Roads Infrastructure Management & Delivery Division APPROVED AS OFFICIAL TRAFFIC SIGN 24/04/25 A/PRINCIPAL ENGINEER Date (Traffic Engineering Practice) R4-040-Q06 1 _ Page 1 of 3

Designed RH 04/25 Checked JP 04/25 Scale Not to Scale

CLASS OF VEHICLE SUPPLEMENTARY PLATE

A	b	c	d	e	f	g	r
A	450	300	5	15	45	80D	50	25
B	600	400	10	30	60	100D	80	50
C	900	600	10	30	90	160D	100	50
D	1200	800	15	45	120	200D	160	100

Colour Legend ROAD Class 400 retroreflective white TRAINS Black Example of use

Designed RH 04/25 Checked JP 04/25 Scale Not to Scale

CLASS OF VEHICLE SUPPLEMENTARY PLATE

A	b	c	d	e	f	g	r
A	450	300	5	15	40	50D	35	25
B	600	400	10	30	50	70D	45	50
C	900	600	10	30	80	100D	70	50
D	1200	800	15	45	100	140D	90	100

TRUCKS Colour Legend AND BUSES Class 400 retroreflective white Example of use Black

Designed RH 04/25 Checked JP 04/25 Scale Not to Scale

TOWNSHIP ENTRY TREATMENT ONE LINE - SHORT TOWN NAME

SIZE A	SIZE B
a	1200	1500
g	1600	2000
r	20	30
h	40	60
d	260	325
g*	160D	200D
b	760	950
GATTON	160	200
f**	100	130
e
c

Table in words

For SIZE A, a is 1200 and for SIZE B, a is 1500.
For SIZE A, g is 1600 and for SIZE B, g is 2000.
For SIZE A, r is 20 and for SIZE B, r is 30.
For SIZE A, h is 40 and for SIZE B, h is 60.
For SIZE A, d is 260 and for SIZE B, d is 325.
For SIZE A, g* is 160D and for SIZE B, g* is 200D.
For SIZE A, b is 760 and for SIZE B, b is 950.
For SIZE A, GATTON is 160 and for SIZE B, GATTON is 200.
For SIZE A, f** is 100 and for SIZE B, f** is 130.

Colour Legend Class 400 retroreflective blue Class 400 retroreflective red Class 400 retroreflective white Black

Department of Transport and Main Roads Infrastructure Management & Delivery Division ISSUED AS OFFICIAL TRAFFIC SIGN 07/07/26 PRINCIPAL ENGINEER Date (Traffic Engineering Practice) R4-040-Q07 1 _ Page 1 of 8 Designed RH 05/25 Checked JP 07/26 Scale Not to Scale A B

TOWNSHIP ENTRY TREATMENT WELCOME - ONE LINE - SHORT TOWN NAME

SIZE A	SIZE B
a	1200	1500
g	1600	2000
r	20	30
e
d	160	200
g*	160D	200D
b	760	950
m	90	110
Welcome to
k	100Em	125Em
GATTON	100	130
f**
c

Table in words

For SIZE A, a is 1200 and for SIZE B, a is 1500.
For SIZE A, g is 1600 and for SIZE B, g is 2000.
For SIZE A, r is 20 and for SIZE B, r is 30.
For SIZE A, d is 160 and for SIZE B, d is 200.
For SIZE A, g* is 160D and for SIZE B, g* is 200D.
For SIZE A, b is 760 and for SIZE B, b is 950.
For SIZE A, m is 90 and for SIZE B, m is 110.
For SIZE A, k is 100Em and for SIZE B, k is 125Em.
For SIZE A, GATTON is 100 and for SIZE B, GATTON is 130.

Colour Legend Class 400 retroreflective blue Class 400 retroreflective red Class 400 retroreflective white Black

Department of Transport and Main Roads Infrastructure Management & Delivery Division ISSUED AS OFFICIAL TRAFFIC SIGN 07/07/26 PRINCIPAL ENGINEER Date (Traffic Engineering Practice) R4-040-Q07 2 _ Page 2 of 8 Designed RH 05/25 Checked JP 07/26 Scale Not to Scale A B

TOWNSHIP ENTRY TREATMENT TWO LINES - TOWN NAME

SIZE A	SIZE B
a	1200	1500
g	1800	2250
r	20	30
h	40	60
d	240	300
g*	160D	200D
b	760	950
MOUNT	140	180
f**	100	125
k	100	130
LARCOM
f*
e
c

Table in words

For SIZE A, a is 1200 and for SIZE B, a is 1500.
For SIZE A, g is 1800 and for SIZE B, g is 2250.
For SIZE A, r is 20 and for SIZE B, r is 30.
For SIZE A, h is 40 and for SIZE B, h is 60.
For SIZE A, d is 240 and for SIZE B, d is 300.
For SIZE A, g* is 160D and for SIZE B, g* is 200D.
For SIZE A, b is 760 and for SIZE B, b is 950.
For SIZE A, MOUNT is 140 and for SIZE B, MOUNT is 180.
For SIZE A, f** is 100 and for SIZE B, f** is 125.
For SIZE A, k is 100 and for SIZE B, k is 130.

Colour Legend Class 400 retroreflective blue Class 400 retroreflective red Class 400 retroreflective white Black

Department of Transport and Main Roads Infrastructure Management & Delivery Division ISSUED AS OFFICIAL TRAFFIC SIGN 07/07/26 PRINCIPAL ENGINEER Date (Traffic Engineering Practice) R4-040-Q07 3 _ Page 3 of 8 Designed RH 05/25 Checked JP 07/26 Scale Not to Scale A B

TOWNSHIP ENTRY TREATMENT WELCOME - TWO LINES - TOWN NAME

SIZE A	SIZE B
a	1200	1500
g	1800	2250
r	20	30
e
d	140	180
g*	160D	200D
b	760	950
m	130	160
Welcome to
h	80	100
MOUNT	100Em	125Em
f**	100	130
k
LARCOM
f*
c

Table in words

For SIZE A, a is 1200 and for SIZE B, a is 1500.
For SIZE A, g is 1800 and for SIZE B, g is 2250.
For SIZE A, r is 20 and for SIZE B, r is 30.
For SIZE A, d is 140 and for SIZE B, d is 180.
For SIZE A, g* is 160D and for SIZE B, g* is 200D.
For SIZE A, b is 760 and for SIZE B, b is 950.
For SIZE A, m is 130 and for SIZE B, m is 160.
For SIZE A, h is 80 and for SIZE B, h is 100.
For SIZE A, MOUNT is 100Em and for SIZE B, MOUNT is 125Em.
For SIZE A, f** is 100 and for SIZE B, f** is 130.

Colour Legend Class 400 retroreflective blue Class 400 retroreflective red Class 400 retroreflective white Black

Department of Transport and Main Roads Infrastructure Management & Delivery Division ISSUED AS OFFICIAL TRAFFIC SIGN 07/07/26 PRINCIPAL ENGINEER Date (Traffic Engineering Practice) R4-040-Q07 4 _ Page 4 of 8 Designed RH 05/25 Checked JP 07/26 Scale Not to Scale A B

TOWNSHIP ENTRY TREATMENT ONE LINE - LONG TOWN NAME

SIZE A	SIZE B
varies	1600	2000
g	20	30
r	40	60
h	260	325
d	160D	200D
g*	760	950
b	160	200
THARGOMINDAH	100	130
f**
e
c
a
b
c
d
e
f*
g
h
r

Table in words

For SIZE A the value for varies is 1600 and for SIZE B it is 2000.
For SIZE A the value for g is 20 and for SIZE B it is 30.
For SIZE A the value for r is 40 and for SIZE B it is 60.
For SIZE A the value for h is 260 and for SIZE B it is 325.
For SIZE A the value for d is 160D and for SIZE B it is 200D.
For SIZE A the value for g* is 760 and for SIZE B it is 950.
For SIZE A the value for b is 160 and for SIZE B it is 200.
For SIZE A the value for THARGOMINDAH is 100 and for SIZE B it is 130.

Colour Legend Class 400 retroreflective blue Class 400 retroreflective red Class 400 retroreflective white Black

Department of Transport and Main Roads Infrastructure Management & Delivery Division ISSUED AS OFFICIAL TRAFFIC SIGN 07/07/26 PRINCIPAL ENGINEER Date (Traffic Engineering Practice) R4-040-Q07 5 _ Page 5 of 8 Designed RH 05/25 Checked JP 07/26 Scale Not to Scale A B

TOWNSHIP ENTRY TREATMENT WELCOME - ONE LINE - LONG TOWN NAME

SIZE A	SIZE B
varies	varies	varies
g	1600	2000
r	20	30
e	40	60
d	160	200
g*	160D	200D
b	760	950
m	90	110
Welcome to	100Em	125Em
k THARGOMINDAH
f**
c
e
a
b
c
d
e
f
g
k
m
r

Table in words

For SIZE A the value for varies is varies.
For SIZE B the value for varies is varies.
For SIZE A the value for g is 1600.
For SIZE B the value for g is 2000.
For SIZE A the value for r is 20.
For SIZE B the value for r is 30.
For SIZE A the value for e is 40.
For SIZE B the value for e is 60.
For SIZE A the value for d is 160.
For SIZE B the value for d is 200.
For SIZE A the value for g* is 160D.
For SIZE B the value for g* is 200D.
For SIZE A the value for b is 760.
For SIZE B the value for b is 950.
For SIZE A the value for m is 90.
For SIZE B the value for m is 110.
For SIZE A the value for Welcome to is 100Em.
For SIZE B the value for Welcome to is 125Em.
For SIZE A the value for k THARGOMINDAH is .
For SIZE B the value for k THARGOMINDAH is .
For SIZE A the value for f** is .
For SIZE B the value for f** is .
For SIZE A the value for c is .
For SIZE B the value for c is .
For SIZE A the value for e is .
For SIZE B the value for e is .
For SIZE A the value for a is .
For SIZE B the value for a is .
For SIZE A the value for b is .
For SIZE B the value for b is .
For SIZE A the value for c is .
For SIZE B the value for c is .
For SIZE A the value for d is .
For SIZE B the value for d is .
For SIZE A the value for e is .
For SIZE B the value for e is .
For SIZE A the value for f is .
For SIZE B the value for f is .
For SIZE A the value for g is .
For SIZE B the value for g is .
For SIZE A the value for k is .
For SIZE B the value for k is .
For SIZE A the value for m is .
For SIZE B the value for m is .
For SIZE A the value for r is .
For SIZE B the value for r is .

Colour Legend Class 400 retroreflective blue Class 400 retroreflective red Class 400 retroreflective white Black

Department of Transport and Main Roads Infrastructure Management & Delivery Division ISSUED AS OFFICIAL TRAFFIC SIGN 07/07/26 PRINCIPAL ENGINEER Date (Traffic Engineering Practice) R4-040-Q07 6 _ Page 6 of 8 Designed RH 05/25 Checked JP 07/26 Scale Not to Scale A B

TOWNSHIP ENTRY TREATMENT SPEED ANNULUS DETAILS

Panel	a	b	c*	d	r	r 1	r 2
SIZE A	760	230	300D	380	60	285	357
SIZE B	950	295	360D	475	90	356	446

View this figure on page 174 of the PDF ↗

TOWNSHIP ENTRY TREATMENT SPEED ANNULUS DETAILSp. 174

a variable (centre numerals by eye) · Example · Colour Legend · Class 400 retroreflective red · Class 400 retroreflective white · Black · R4-040-Q07 7 · Page 7 of 8 · Designed RH 05/25 · Checked JP 07/26 · Scale Not to Scale · A · B

60 60 Welcome to GATTON GATTON R4-040-Q07 1 R4-040-Q07 2 _ _ 60 60 Welcome to MOUNT MOUNT LARCOM LARCOM R4-040-Q07 3 R4-040-Q07 4 _ _ 60 60 Welcome to THARGOMINDAH THARGOMINDAH R4-040-Q07 5 R4-040-Q07 6 _ _ Examples
	TOWNSHIP ENTRY TREATMENT EXAMPLES
Department of Transport and Main Roads Infrastructure Management & Delivery Division	ISSUED AS OFFICIAL TRAFFIC SIGN 07/07/26 PRINCIPAL ENGINEER Date (Traffic Engineering Practice)
Designed RH 05/25	Checked JP 07/26
A	B

View this figure on page 176 of the PDF ↗

R4-040-Q08 – SPEED LIMIT FOR PERSONAL MOBILITY DEVICESp. 176

300 · R25 · 35 · 15 · 80D · 200 · 500 · 30 · 200 · 5 · 35 · 200 · Note: For guidance on the use of this sign refer to the Queensland MUTCD Part 4. · 25 · Colour Legend · Black · Class 400 retroreflective red · Class 400 retroreflective white · Example · SPEED LIMIT FOR PERSONAL MOBILITY DEVICES · Department of Transport and Main Roads · Infrastructure Management & Delivery Division · APPROVED AS OFFICIAL TRAFFIC SIGN · 23/05/25 · A/PRINCIPAL ENGINEER · Date · (Traffic Engineering Practice) · R4-040-Q08 · Designed RH 05/25 · Checked DJ 05/25 · Scale Not to Scale · A

View this figure on page 177 of the PDF ↗

R4-040-Q09 – SPEED LIMIT FOR PERSONAL MOBILITY DEVICES ON PATHp. 177

300 · R25 · 35 · 15 · 80D · 200 · 500 · 20 · 150 · 20 · ON PATH · 40C · 5 · 35 · 150 · Note: For guidance on the use of this sign refer to the Queensland MUTCD Part 4. · 25 · Colour Legend · Black · ON PATH · Class 400 retroreflective red · Class 400 retroreflective white · Example · SPEED LIMIT FOR PERSONAL MOBILITY DEVICES ON PATH · Department of Transport and Main Roads · Infrastructure Management & Delivery Division · APPROVED AS OFFICIAL TRAFFIC SIGN · 23/05/25 · A/PRINCIPAL ENGINEER · Date · (Traffic Engineering Practice) · R4-040-Q09 · Designed RH 05/25 · Checked DJ 05/25 · Scale Not to Scale · A

View this figure on page 178 of the PDF ↗

R4-040-Q10 – SPEED LIMIT FOR PERSONAL MOBILITY DEVICES SUPPLEMENTARY PLATEp. 178

300 · R25 · 25 · 15 · 150 · 100 · 40D · 5 · 25 · 30 · 100 · 100 · 30 · Note: For guidance on the use of this sign refer to the Queensland MUTCD Part 4. · Colour Legend · Black · 25 · Class 400 retroreflective red · Class 400 retroreflective white · Example use · SPEED LIMIT FOR PERSONAL MOBILITY DEVICES SUPPLEMENTARY PLATE · Department of Transport and Main Roads · Infrastructure Management & Delivery Division · APPROVED AS OFFICIAL TRAFFIC SIGN · 23/05/25 · A/PRINCIPAL ENGINEER · Date · (Traffic Engineering Practice) · R4-040-Q10 · Designed RH 05/25 · Checked DJ 05/25 · Scale Not to Scale

View this figure on page 179 of the PDF ↗

R4-040-Q11 – SPEED LIMIT - DRIVE TO PREVAILING BEACH CONDITIONSp. 179

a · r · d · h · R4-1B or R4-1C · b · g · DRIVE TO · e · f · PREVAILING · e · f · BEACH · e · f · CONDITIONS · e · c · a · b · c · d · e · f · g · h · r · A · 1100 · 1600 · 60 · 75 · 100D · 55 · 100 · 800 · 100 · B · 1650 · 2400 · 90 · 115 · 150D · 80 · 155 · 1200 · 125 · Note: For guidance on the use of this sign refer to the Queensland MUTCD Part 4. · Colour Legend · Class 400 retroreflective yellow · Black · SPEED LIMIT - DRIVE TO PREVAILING BEACH CONDITIONS · Department of Transport and Main Roads · Infrastructure Management & Delivery Division · APPROVED AS OFFICIAL TRAFFIC SIGN · 19/05/25 · A/PRINCIPAL ENGINEER · Date · (Traffic Engineering Practice) · R4-040-Q11 · Designed RH 05/25 · Checked DJ 05/25 · Scale Not to Scale · A

a	b	c	d	e	f	g	h	r
A	1100	1600	60	75	100D	55	100	800	100
B	1650	2400	90	115	150D	80	155	1200	125
225 r25 42 71 42 25 12 32 12 P 140 80E 83 42 12 32 15 12 75 450 15 EXCEPTED 30C 15 WHILE 30C 15 CHARGING 30C OPTIONS 15 P P 32 13 125 EXCEPTED EXCEPTED WHILE WHILE CHARGING CHARGING R5-40-Q01 1(R) _ R5-40-Q01 1(L) R5-40-Q01 1(B) _ _ Colour Legend Notes 1. This sign (with “No Parking”symbol ) allows only Electric Vehicle (EV) Retroreflective white to park while being charged. 2. "No Parking" symbol and arrow dimensions as per AS1743. Retroreflective red 3. Insert left, right or double arrows as appropriate. 4. The EV symbol should face the same direction of the arrow. For the Black double direction arrow (R5-40-Q01 1(B) the EV symbol should face _ to the left. See options. 4. For EV symbol detail refer to SQ07.
	SPECIAL PARKING SIGN "NO PARKING - ELECTRIC VEHICLES WHILE CHARGING EXCEPTED"
Department of Transport and Main Roads Infrastructure Management & Delivery Division	APPROVED AS OFFICIAL TRAFFIC SIGN 20/08/24 PRINCIPAL ENGINEER Date (Traffic Engineering Practice)	R5-40-Q01
Designed RB 04/22	Checked RN 08/24	Scale Not to Scale
A	B

Table in words

For sign A, dimension a is 1100, dimension b is 1600, dimension c is 60, dimension d is 75, dimension e is 100D, dimension f is 55, dimension g is 100, dimension h is 800 and dimension r is 100.
For sign B, dimension a is 1650, dimension b is 2400, dimension c is 90, dimension d is 115, dimension e is 150D, dimension f is 80, dimension g is 155, dimension h is 1200 and dimension r is 125.
The sign is a SPECIAL PARKING SIGN "NO PARKING - ELECTRIC VEHICLES WHILE CHARGING EXCEPTED" with the number R5-40-Q01.
The sign was approved as an official traffic sign on 20/08/24 by the Principal Engineer (Traffic Engineering Practice).
The sign was designed by RB in 04/22 and checked by RN in 08/24, and the scale is Not to Scale.

1050 R100 115 45 PARKING 100E 50 AREA 100E 85 2P 350E 1400 85 ROAD 100E 50 TRAINS 100E 50 ONLY 100E 15 115 Colour Legend Notes: 1. This sign shall only be installed with R5-63. Retroreflective white 2. This sign is only to be used at Heavy Vehicle Decoupling Bay as part of Toowoomba Second Range Crossing project. Retroreflective green 3. In version B of the sign ‘ROAD TRAINS ONLY’ text colour has been changed to green in accordance Black with Clause 3.3.4 (a) (i) of AS1742.11.
	REGULATORY SIGN “PARKING AREA - ROAD TRAINS ONLY”
Department of Transport and Main Roads Infrastructure Management & Delivery Division	APPROVED AS OFFICIAL TRAFFIC SIGN 17/09/19 PRINCIPAL ENGINEER Date (Traffic Engineering)	R5-61-Q01 1 _ Page 1 of 2
Designed RH 8/19	Checked DJ 9/19	Scale Not to Scale
A	B

Table in words

The sign is a REGULATORY SIGN “PARKING AREA - ROAD TRAINS ONLY” with the number R5-61-Q01 1.
The sign was approved as an official traffic sign on 17/09/19 by the Principal Engineer (Traffic Engineering).
The sign was designed by RH in 8/19 and checked by DJ in 9/19, and the scale is Not to Scale.

1050 R100 90 PENALTIES 45 100E 70 450 APPLY 100E 15 90 Note: This sign is to be installed under R5-61-Q01 1. _ Colour Legend Retroreflective white Black
	SUPPLEMENTARY PLATE “PENALTIES APPLY”
Department of Transport and Main Roads Infrastructure Management & Delivery Division	APPROVED AS OFFICIAL TRAFFIC SIGN 17/09/19 PRINCIPAL ENGINEER Date (Traffic Engineering)	R5-61-Q01 2 _ Page 2 of 2
Designed RH 8/19	Checked DC 8/19	Scale Not to Scale
A	B

Table in words

The sign is a SUPPLEMENTARY PLATE “PENALTIES APPLY” with the number R5-61-Q01 2.
The sign was approved as an official traffic sign on 17/09/19 by the Principal Engineer (Traffic Engineering).
The sign was designed by RH in 8/19 and checked by DC in 8/19, and the scale is Not to Scale.

1050 R100 115 45 YOU ARE 100E 50 WITHIN A 100E 50 PARKING 100E 50 AREA 100E 85 2P 1700 350E 85 ROAD 100E 50 TRAINS 100E 50 ONLY 100E 15 115 Colour Legend Notes: 1. This sign shall only be installed with R5-61-Q01. Retroreflective white 2. This sign is only to be used at Heavy Vehicle Decoupling Bay as part of Toowoomba Second Range Crossing project. Retroreflective green 3. In version B of the sign ‘ROAD TRAINS ONLY’ text colour has been changed to green in accordance Black with Clause 3.3.4 (a) (i) of AS1742.11.
	REGULATORY SIGN “YOU ARE WITHIN A PARKING AREA ROAD TRAINS ONLY”
Department of Transport and Main Roads Infrastructure Management & Delivery Division	APPROVED AS OFFICIAL TRAFFIC SIGN 3107/089/19 PRINCIPAL ENGINEER Date (Traffic Engineering)	R5-62-Q01
Designed RH 8/19	Checked DJ 9/19	Scale Not to Scale
A	B

Table in words

The sign is a REGULATORY SIGN “YOU ARE WITHIN A PARKING AREA ROAD TRAINS ONLY” with the number R5-62-Q01.
The sign was approved as an official traffic sign on 3107/089/19 by the Principal Engineer (Traffic Engineering).
The sign was designed by RH in 8/19 and checked by DJ in 9/19, and the scale is Not to Scale.

REGULATORY SIGN “TOW-AWAY ZONE”

Item	Detail
225 R25 38 15 TOW-AWAY 30D 24 ZONE 200 30D 24 IF TOWED PHONE 15B 5 39 65 20 POLICE or Phone Number Colour Legend Retroreflective white (background) Retroreflective red (legend and border)
	REGULATORY SIGN “TOW-AWAY ZONE”
Department of Transport and Main Roads Infrastructure Management & Delivery Division	APPROVED AS OFFICIAL TRAFFIC SIGN 15/06/16 PRINCIPAL ENGINEER Date (Traffic Engineering)
R5-Q01
Designed RH 8/95	Checked JD 8/95
Scale Not to Scale
A	B
C

SPECIAL PARKING SIGN “WEEKDAY PUBLIC HOLIDAYS”

Item	Detail
225 201 R25 25 ** 2P 100E 20 METER 35D 20 9* -5* 450 50E AM PM 25 MON - FRI 27C 15 INCLUDING 27C 15 PUBLIC HOLS 27C 19 32 13 2P METER 9 -5 AM PM MON - FRI 42 71 42 71 42 INCLUDING PUBLIC HOLS 32 12 12 32 XMAS DAY 12 12 GOOD FRIDAY & ANZAC DAY EXCEPTED Example use Arrow details Colour Legend Notes 1. This sign may be used at locations where parking Retroreflective white restrictions are required to be applied during public holidays. Retroreflective green 2 * Insert appropriate times as required. 3. Insert appropriate hours. e.g. 2 and centre vertically. 4. Arrow may be left, right or both ways as appropriate. 5. For exceptions supplementary plate, refer to page 2.
	SPECIAL PARKING SIGN “WEEKDAY PUBLIC HOLIDAYS”
Department of Transport and Main Roads Infrastructure Management & Delivery Division	APPROVED AS OFFICIAL TRAFFIC SIGN 08/12/16 PRINCIPAL ENGINEER Date (Traffic Engineering)
R5-Q06 1 _ Page 1 of 2
Designed TV 12/16	Checked LM 12/16
Scale Not to Scale
A

SPECIAL PARKING SIGN EXCEPTIONS SUPPLEMENTARY PLATE

Item	Detail
225 R25 15 SAT & SUN 27B 15 XMAS DAY 27B 15 GOOD FRIDAY 225 27B 15 & ANZAC DAY 27B 15 EXCEPTED 27B 15 225 R25 13 XMAS DAY 27B 15 GOOD FRIDAY 225 27B 15 & ANZAC DAY 27B 15 EXCEPTED 27B 14 Colour Legend Notes 1. These supplementary sign options may be used with Retroreflective white special parking signs that restrict parking on public holidays. Retroreflective green
	SPECIAL PARKING SIGN EXCEPTIONS SUPPLEMENTARY PLATE
Department of Transport and Main Roads Infrastructure Management & Delivery Division	APPROVED AS OFFICIAL TRAFFIC SIGN 08/12/16 PRINCIPAL ENGINEER Date (Traffic Engineering)
R5-Q06 2 _ Page 2 of 2
Designed TV 12/16	Checked LM 12/16
Scale Not to Scale
A

SPECIAL PARKING SIGN EXCEPTIONS SUPPLEMENTARY PLATE

Item	Detail
225 R25 15 SAT & SUN 27B 15 XMAS DAY 27B 15 GOOD FRIDAY 225 27B 15 & ANZAC DAY 27B 15 EXCEPTED 27B 15 225 R25 13 XMAS DAY 27B 15 GOOD FRIDAY 225 27B 15 & ANZAC DAY 27B 15 EXCEPTED 27B 14 Colour Legend Notes 1. These supplementary sign options may be used with Retroreflective white special parking signs that restrict parking on public holidays. Retroreflective green
	SPECIAL PARKING SIGN EXCEPTIONS SUPPLEMENTARY PLATE
Department of Transport and Main Roads Infrastructure Management & Delivery Division	APPROVED AS OFFICIAL TRAFFIC SIGN 08/12/16 PRINCIPAL ENGINEER Date (Traffic Engineering)
R5-Q06 2 _ Page 2 of 2
Designed TV 12/16	Checked LM 12/16
Scale Not to Scale
A
Dedicated electric vehicle space for charging 1200 max. 1200 max. 720 1000 500 to 600 Colour Legend White G13 Emerald Green Note: For symbol details refer to SQ07.

PAVEMENT SYMBOL “ELECTRIC VEHICLES CHARGING STATION”
Department of Transport and Main Roads Infrastructure Management & Delivery Division	APPROVED AS OFFICIAL TRAFFIC SIGN 12/02/21 PRINCIPAL ENGINEER Date (Traffic Engineering)	R5-Q07 1 _ Page 1 of 2
Designed RH 02/21	Checked DJ 02/21	Scale Not to Scale
A

Table in words

The item 225 R25 15 SAT & SUN 27B 15 XMAS DAY 27B 15 GOOD FRIDAY 225 27B 15 & ANZAC DAY 27B 15 EXCEPTED 27B 15 225 R25 13 XMAS DAY 27B 15 GOOD FRIDAY 225 27B 15 & ANZAC DAY 27B 15 EXCEPTED 27B 14 Colour Legend Notes 1. These supplementary sign options may be used with Retroreflective white special parking signs that restrict parking on public holidays. Retroreflective green has detail .
The item has detail SPECIAL PARKING SIGN EXCEPTIONS SUPPLEMENTARY PLATE.
The item Department of Transport and Main Roads Infrastructure Management & Delivery Division has detail APPROVED AS OFFICIAL TRAFFIC SIGN 08/12/16 PRINCIPAL ENGINEER Date (Traffic Engineering).
The item R5-Q06 2 _ Page 2 of 2 has detail .
The item Designed TV 12/16 has detail Checked LM 12/16.
The item Scale Not to Scale has detail .
The item A has detail .
Dedicated electric vehicle space for charging 1200 max. 1200 max. 720 1000 500 to 600 Colour Legend White G13 Emerald Green Note: For symbol details refer to SQ07.
PAVEMENT SYMBOL “ELECTRIC VEHICLES CHARGING STATION”
Department of Transport and Main Roads Infrastructure Management & Delivery Division APPROVED AS OFFICIAL TRAFFIC SIGN 12/02/21 PRINCIPAL ENGINEER Date (Traffic Engineering) R5-Q07 1 _ Page 1 of 2
Designed RH 02/21 Checked DJ 02/21 Scale Not to Scale
A

Parking bay lenght 1800 Parking bay width Colour Legend Notes: 1. For symbol details refer to SQ07. White 2. Symbol to be centered in the middle of the parking bay. G13 Emerald Green

PAVEMENT SYMBOL “ELECTRIC VEHICLES CHARGING STATION”
Department of Transport and Main Roads Infrastructure Management & Delivery Division	APPROVED AS OFFICIAL TRAFFIC SIGN 12/02/21 PRINCIPAL ENGINEER Date (Traffic Engineering)	R5-Q07 2 _ Page 2 of 2
Designed RH 02/21	Checked DJ 02/21	Scale Not to Scale
A

Table in words

Parking bay lenght 1800 Parking bay width Colour Legend Notes: 1. For symbol details refer to SQ07. White 2. Symbol to be centered in the middle of the parking bay. G13 Emerald Green
PAVEMENT SYMBOL “ELECTRIC VEHICLES CHARGING STATION”
Department of Transport and Main Roads Infrastructure Management & Delivery Division APPROVED AS OFFICIAL TRAFFIC SIGN 12/02/21 PRINCIPAL ENGINEER Date (Traffic Engineering) R5-Q07 2 _ Page 2 of 2
Designed RH 02/21 Checked DJ 02/21 Scale Not to Scale
A

a r e d RAMP f g LOAD f g LIMIT b f g t * h g GROSS f c e a b c d e f g h r R6-3-Q01A 600 900 30 10 80 100DM 60 100E / 50 100E(lc) R6-3-Q01B 900 1350 45 15 120 150DM 90 150E / 100 150E(lc) Colour Legend Notes 1. This sign may be used to show the gross load Retroreflective white limit of a road on/off ramp. 2. For a bridge gross load limit sign, refer to Black standard sign R6-3. 3. *Insert appropriate gross load limit.

REGULATORY SIGN "RAMP LOAD LIMIT ...t GROSS"
Department of Transport and Main Roads Infrastructure Management & Delivery Division	APPROVED AS OFFICIAL TRAFFIC SIGN 11/07/16 PRINCIPAL ENGINEER Date (Traffic Engineering)	R6-3-Q01
Designed TV 7/14	Checked DDJJ 57//1144	Scale Not to Scale
A	B

Table in words

a r e d RAMP f g LOAD f g LIMIT b f g t * h g GROSS f c e a b c d e f g h r R6-3-Q01A 600 900 30 10 80 100DM 60 100E / 50 100E(lc) R6-3-Q01B 900 1350 45 15 120 150DM 90 150E / 100 150E(lc) Colour Legend Notes 1. This sign may be used to show the gross load Retroreflective white limit of a road on/off ramp. 2. For a bridge gross load limit sign, refer to Black standard sign R6-3. 3. *Insert appropriate gross load limit.
REGULATORY SIGN "RAMP LOAD LIMIT ...t GROSS"
Department of Transport and Main Roads Infrastructure Management & Delivery Division APPROVED AS OFFICIAL TRAFFIC SIGN 11/07/16 PRINCIPAL ENGINEER Date (Traffic Engineering) R6-3-Q01
Designed TV 7/14 Checked DDJJ 57//1144 Scale Not to Scale
A B

b	c	d	e	f	g	h	r
R6-3-Q0	1A 600	900	30	10	80	100DM	60	100E / 100E(lc)	50
R6-3-Q0	1B 900	1350	45	15 1	20	150DM	90	150E / 150E(lc)	100

1200 120 STOP HERE 150D 600 100 ON RED SIGNAL 110D 25 120 Notes: 1. This multi-message sign has been developed to fit across the Colour Legend two (600x600) panels of a multi message frame. 2. It may be used in lieu of R6-6 in accordance with Clause Retroreflective white 3.5.4(d) in the MUTCD Part 3. 3. This sign should be located at the point where drivers are Retroreflective red required to stop in response to a red signal on a set of portable or temporary traffic signals. A driver must be able to see the Black signals from this location in order to respond to a change to green. Suggested location is 6 m in front of the signals.

MULTI MESSAGE SIGN PLATE “STOP HERE ON RED SIGNAL”
Department of Transport and Main Roads Infrastructure Management & Delivery Division	APPROVED AS OFFICIAL TRAFFIC SIGN 14/05/20 PRINCIPAL ENGINEER Date (Traffic Engineering)	R6-6-Q01
Designed RH 06/17	Checked DJ 05/20	Scale Not to Scale
A	B

Table in words

1200 120 STOP HERE 150D 600 100 ON RED SIGNAL 110D 25 120 Notes: 1. This multi-message sign has been developed to fit across the Colour Legend two (600x600) panels of a multi message frame. 2. It may be used in lieu of R6-6 in accordance with Clause Retroreflective white 3.5.4(d) in the MUTCD Part 3. 3. This sign should be located at the point where drivers are Retroreflective red required to stop in response to a red signal on a set of portable or temporary traffic signals. A driver must be able to see the Black signals from this location in order to respond to a change to green. Suggested location is 6 m in front of the signals.
MULTI MESSAGE SIGN PLATE “STOP HERE ON RED SIGNAL”
Department of Transport and Main Roads Infrastructure Management & Delivery Division APPROVED AS OFFICIAL TRAFFIC SIGN 14/05/20 PRINCIPAL ENGINEER Date (Traffic Engineering) R6-6-Q01
Designed RH 06/17 Checked DJ 05/20 Scale Not to Scale
A B

View this figure on page 192 of the PDF ↗

Figurep. 192

6 300 · 1.6mm Aluminium · Retroreflective white · STOP · 90C · 2mm x 70mm sawcut through centre of steel tube and wooden handle · 70mm min Aluminium Rivet · 80mm min · 26.9 OD x 2.0mm · 20±1 galvanised Steel Tube · 22mm dia Wooden Handle x 1.8m long · SLOW · Colour Legend · Retroreflective red · Retroreflective white · EXAMPLE · SLOW HAND BANNER

Drivers are required to stop their vehicle when indicated by the R6-8-Q01 sign. The sign has a diameter of 300 mm. Vehicle mounted flashing magenta coloured lights may be displayed in conjunction with this sign to assist in attracting the driver's attention.

REGULATORY SIGN “STOP/SLOW HAND BANNER”

Department of Transport and Main Roads Infrastructure Management & Delivery Division APPROVED AS OFFICIAL TRAFFIC SIGN 04/03/19 PRINCIPAL ENGINEER Date (Traffic Engineering) R6-8-Q01

Designed TV 11/16 Checked DJ 03/19 Scale Not to Scale

A B

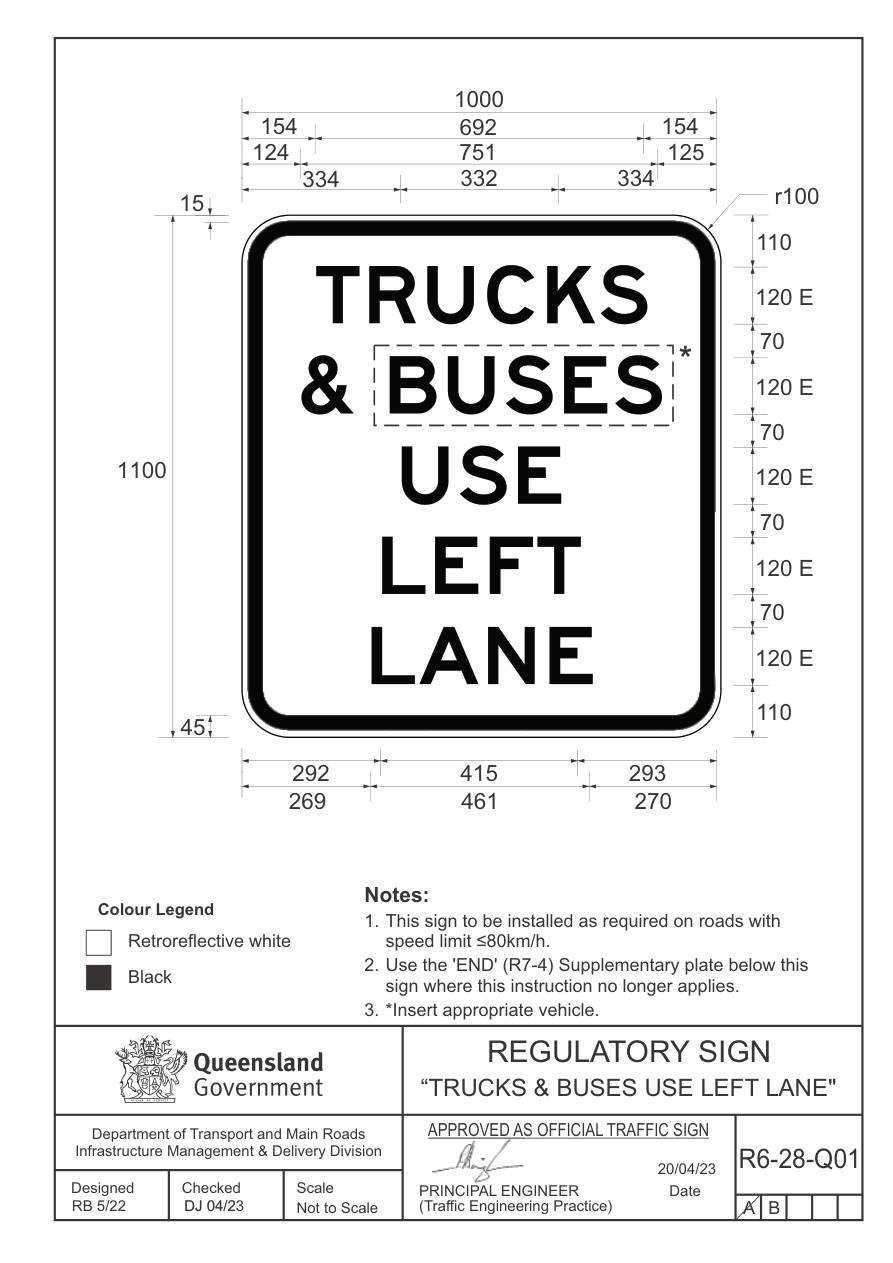

Page 193 of MUTCD Q-Series Signs showing a figure — Figurep. 193

REGULATORY SIGN “TRUCKS & BUSES USE LEFT LANE"

Department of Transport and Main Roads Infrastructure Management & Delivery Division APPROVED AS OFFICIAL TRAFFIC SIGN 20/04/23 PRINCIPAL ENGINEER Date (Traffic Engineering Practice) R6-28-Q01

Designed RB 5/22 Checked DDJJ 50/41/423 Scale Not to Scale

A B

View this figure on page 193 of the PDF ↗

Figurep. 193

1000 · 154 692 154 · 124 · 751 125 · 334 332 334

View this figure on page 194 of the PDF ↗

Figurep. 194

1200 · R100 · 135 · 45 · OVERALL · 180D · 120 · WIDTH · 180D · 120 · 1350 · LIMIT · 180D · 120 · * · 3.5 m · 180E / 150Em · 15 · 135 · Colour Legend · Retroreflective white · Black

TRAFFIC INSTRUCTION SIGN OVERALL WIDTH LIMIT ...m

Department of Transport and Main Roads Infrastructure Management & Delivery Division APPROVED AS OFFICIAL TRAFFIC SIGN 9/12/22 PRINCIPAL ENGINEER Date (Traffic Engineering Practice) R6-33-Q01

Designed RH 12/22 Checked JP 12/22 Scale Not to Scale

View this figure on page 195 of the PDF ↗

Figurep. 195

6 288 · 6 · 1.6mm Aluminium · Retroreflective white · STOP · 95C · 2mm x 70mm sawcut through centre of steel tube and wooden handle · 70mm min Aluminium Rivet · 80mm min · 26.9 OD x 2.0mm · 20±1 galvanised Steel Tube · 22mm dia Wooden Handle x 1.8m long · Colour Legend · Retroreflective red · Retroreflective white

REGULATORY SIGN “STOP/SLOW HAND BANNER” (SMALL)

Department of Transport and Main Roads Infrastructure Management & Delivery Division APPROVED AS OFFICIAL TRAFFIC SIGN 16/06/16 PRINCIPAL ENGINEER Date (Traffic Engineering) R6-Q02

Designed RH 3/96 Checked JD 3/96 Scale Not to Scale

F G H

a r e d AUTHORISED f g BUSES f g ONLY b f g BEYOND f g THIS POINT f c e a b c d e f g r SIZE A 600 700 10 30 65 70C 55 50 SIZE B 900 1000 15 45 90 100C 80 100 SIZE C 1200 1300 15 45 100 140C 100 100 Colour Legend Retroreflective white (background) 1. For typical layout details for this sign see pages 2 and 3. Black (legend and border)
	REGULATORY SIGN AUTHORISED BUSES ONLY BEYOND THIS POINT
Department of Transport and Main Roads Infrastructure Management & Delivery Division	APPROVED AS OFFICIAL TRAFFIC SIGN 16/06/16 PRINCIPAL ENGINEER Date (Traffic Engineering)	R6-Q03 1 _ Page 1 of 3
Designed TV 09/10	Checked KB 09/10	Scale Not to Scale
A	B

Note 1. * This zone is optional and may be installed for added recognition. AUTHORISED BUSES R6-Q03 ONLY BEYOND THIS POINT Busway To busway TC1871 1 _ NO R2-4 ENTRY AUTHORISED GE9-15 BUSES EXCEPTED Local Road
	BUSWAY SIGNS TYPICAL LAYOUT
Department of Transport and Main Roads Infrastructure Management & Delivery Division	APPROVED AS OFFICIAL TRAFFIC SIGN 16/06/16 PRINCIPAL ENGINEER Date (Traffic Engineering)	R6-Q03 2 _ Page 2 of 3
Designed TV 09/10	Checked KB 09/10	Scale Not to Scale
A	B

Local Road R2-4 GE9-15 TC1870 _1 busway G9-69 busway NO TC1871 1 _ ENTRY AUTHORISED BUSES EXCEPTED R2-4 AUTHORISED BUSES GE9-15 ONLY R6-Q03 BEYOND THIS POINT B u s w a y Note 1. * This zone is optional and may be installed for added recognition.
	BUSWAY SIGNS TYPICAL LAYOUT WITH ADVANCE WARNING
APP Department of Transport and Main Roads Infrastructure Management & Delivery Division Designed Checked Scale PRINC TV 09/10 KB 09/10 Not to Scale (Traffic	ROVED AS OFFICIAL TRAFFIC SIGN 16/06/16 IPAL ENGINEER Date Engineering)	R6-Q03 3 _ Page 3 of 3
Designed TV 09/10	Checked Sca KB 09/10 Not
A	B

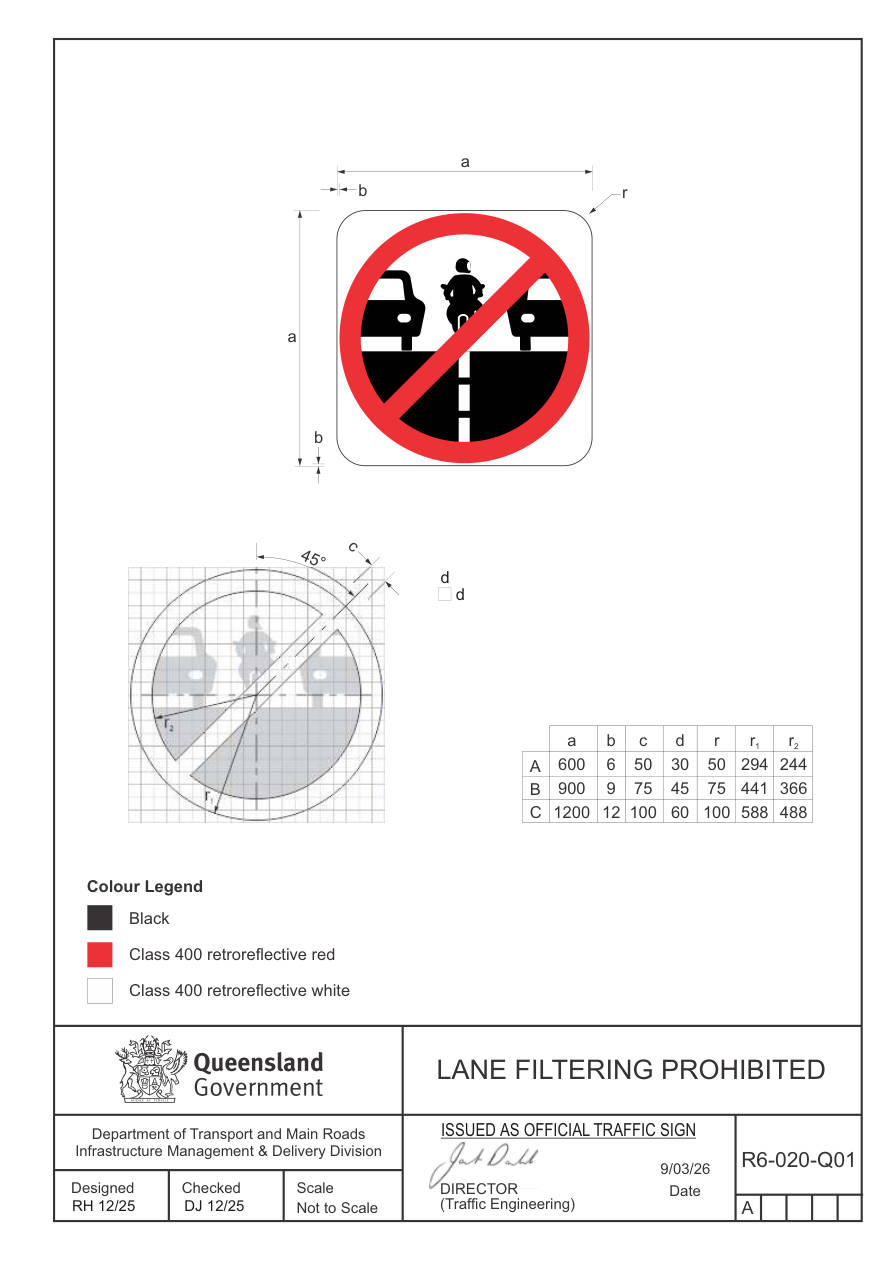

a b r a b c 4 5 ° d d r 2 a b c d r r r 1 2 A 600 6 50 30 50 294 244 B 900 9 75 45 75 441 366 r 1 C 1200 12 100 60 100 588 488 Colour Legend Black Class 400 retroreflective red Class 400 retroreflective white
	LANE FILTERING PROHIBITED
Department of Transport and Main Roads Infrastructure Management & Delivery Division	ISSUED AS OFFICIAL TRAFFIC SIGN 9/03/26 DIRECTOR Date (Traffic Engineering)	R6-020-Q01
Designed RH 12/25	Checked DJ 12/25	Scale Not to Scale
A

a	b	c	d	r	r 1	r 2
A	600	6	50	30	50	294	244
B	900	9	75	45	75	441	366
C	1200	12	100	60	100	588	488

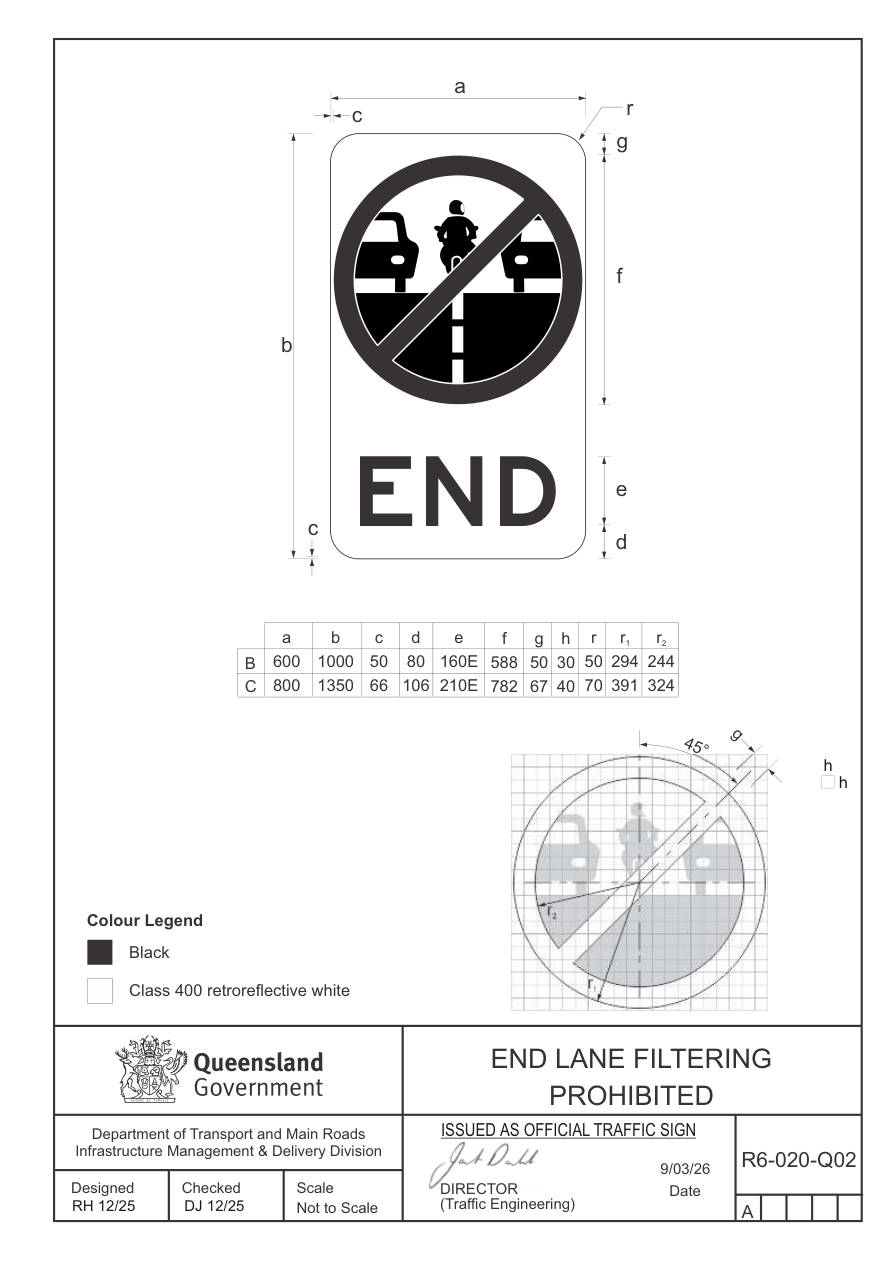

a r c g f b END e c d a b c d e f g h r r r 1 2 B 600 1000 50 80 160E 588 50 30 50 294 244 C 800 1350 66 106 210E 782 67 40 70 391 324 g 4 5 ° h h r Colour Legend 2 Black r Class 400 retroreflective white 1
	END LANE FILTERING PROHIBITED
Department of Transport and Main Roads Infrastructure Management & Delivery Division	ISSUED AS OFFICIAL TRAFFIC SIGN 9/03/26 DIRECTOR Date (Traffic Engineering)	R6-020-Q02
Designed RH 12/25	Checked DJ 12/25	Scale Not to Scale
A

Table in words

For a of A, b is 600, c is 6, d is 50, r is 30, r 1 is 50, r 2 is 294, and 244.
For a of B, b is 900, c is 9, d is 75, r is 45, r 1 is 75, r 2 is 441, and 366.
For a of C, b is 1200, c is 12, d is 100, r is 60, r 1 is 100, r 2 is 588, and 488.
The sign is issued as official traffic sign R6-020-Q02, dated 9/03/26, by the Director (Traffic Engineering).
The sign was designed by RH on 12/25 and checked by DJ on 12/25, at a scale of Not to Scale.
The sign reads END LANE FILTERING PROHIBITED.
The colour legend shows black and Class 400 retroreflective white.

b	c	d	e	f	g	h	r	r 1	r 2
B 60	0 1000	50	80	160E	588	50	30	50	294	244
C 80	0 1350	66	106	210E	782	67	40	70	391	324

a b r a b f 4 5 ° e g r 2 g r 1 c d Note: For guidance on the use of this sign refer to the Queensland MUTCD Part 10. Colour Legend a b c d e f g r r r 1 2 Black A 450 5 170 230 19 38 205 45 220 183 B 600 6 227 306 25 50 273 60 293 244 Class 400 retroreflective red C 750 7 284 382 31 62 341 75 366 305 Class 400 retroreflective white
	WHEELED RECREATIONAL DEVICES AND WHEELED TOYS PROHIBITED
Department of Transport and Main Roads Infrastructure Management & Delivery Division	APPROVED AS OFFICIAL TRAFFIC SIGN 15/04/25 A/PRINCIPAL ENGINEER Date (Traffic Engineering Practice)	R6-100-Q01
Designed RH 04/25	Checked JP 04/25	Scale Not to Scale
A

a	b	c	d	e	f	g	r	r 1	r 2
A	450	5	170	230	19	38	205	45	220	183
B	600	6	227	306	25	50	273	60	293	244
C	750	7	284	382	31	62	341	75	366	305

450 R50 60 30 180 10 600 180 60 ON FOOTPATH 50C 10 60 Notes: 1. For guidance on the use of this sign refer to the Queensland MUTCD Part 10. 2. Sign elements can be deleted in circumstances where not all devices are prohibited. Colour Legend Black Class 400 retroreflective red Class 400 retroreflective white
	CYCLING, WHEELED RECREATIONAL DEVICES AND WHEELED TOYS PROHIBITED
Department of Transport and Main Roads Infrastructure Management & Delivery Division	APPROVED AS OFFICIAL TRAFFIC SIGN 15/04/25 A/PRINCIPAL ENGINEER Date (Traffic Engineering Practice)	R6-100-Q02
Designed RH 04/25	Checked JP 04/25	Scale Not to Scale
A

Table in words

The sign is approved as official traffic sign R6-100-Q02, dated 15/04/25, by the A/Principal Engineer (Traffic Engineering Practice).
The sign was designed by RH on 04/25 and checked by JP on 04/25, at a scale of Not to Scale.
The sign reads CYCLING, WHEELED RECREATIONAL DEVICES AND WHEELED TOYS PROHIBITED.
For guidance on the use of this sign refer to the Queensland MUTCD Part 10.
Sign elements can be deleted in circumstances where not all devices are prohibited.
The colour legend shows black, Class 400 retroreflective red and Class 400 retroreflective white.

a c r b d a c d h k m n o p r r r 1 2 AA 300 3 294 108 88 92 72 13 26 25 147 122 A 450 4 442 162 132 138 108 19 38 40 221 183 B 600 6 588 215 177 183 144 26 52 50 294 244 4 5 ° p o h r 1 r 2 n k m Colour Legend Note: For guidance on the use of this sign refer to the Queensland MUTCD Part 10. Black Class 400 retroreflective red Class 400 retroreflective white
	E-SCOOTERS PROHIBITED
Department of Transport and Main Roads Infrastructure Management & Delivery Division	APPROVED AS OFFICIAL TRAFFIC SIGN 22/04/25 A/PRINCIPAL ENGINEER Date (Traffic Engineering Practice)	R6-100-Q03 1 _ Page 1 of 2
Designed RH 04/25	Checked JP 04/25	Scale Not to Scale
A

c d	h	k	m	n	o	p	r	r 1	r 2
3 294	108	88	92	72	13	26	25	147	122
4 442	162	132	138	108	19	38	40	221	183
6 588	215	177	183	144	26	52	50	294	244

a	b	c d	e	f	g	h	k	m	n	o	p	r	r 1	r 2
A	450	825	4 442	25	60C	30	24	132	138	108	19	38	40	221	183
B	600	1100	6 588	34	80C	40	32	177	183	144	26	52	50	294	244

Colour Legend Black Class 400 retroreflective red Class 400 retroreflective white

PERSONAL MOBILITY DEVICES PROHIBITED

Department of Transport and Main Roads Infrastructure Management & Delivery Division APPROVED AS OFFICIAL TRAFFIC SIGN 22/04/25 A/PRINCIPAL ENGINEER Date (Traffic Engineering Practice) R6-100-Q03 2 _ Page 2 of 2

Designed RH 04/25 Checked JP 04/25 Scale Not to Scale

a b	c	d	e	f	g	h	r
SIZE A	450 300	5	15	55	75C	40	75E	25
SIZE B	600 400	10	30	75	100C	50	100E	50
SIZE C	900 600	10	30	110	150C	80	150E	50
SIZE D	1200 800	15	45	150	200C	100	200E	100

a r e d RIGHT h b g 2 LANES f c e R7-3-Q01R a b c d e f g h r SIZE A 450 300 5 15 55 75C 40 75E 25 SIZE B 600 400 10 30 75 100C 50 100E 50 SIZE C 900 600 10 30 110 150C 80 150E 50 SIZE D 1200 800 15 45 150 200C 100 200E 100 LEFT R7-3-Q01L 2 LANES Example for left lanes restriction Colour Legend Notes: 1. This sign to be mounted at locations where restrictions apply to the Retroreflective white two right (left) lanes of a carriageway. It should be installed, (a) Black between G9-87 and R7-2 in advance of the restrictions, (b) below a R6-10 for the restricted section and (c) between R6-10 and R7-4 to indicate the end of the restricted section. 2. For examples refer to page 2. 3. Insert appropriate lane option. e.g. LEFT or RIGHT.

REGULATORY SIGN “RIGHT / LEFT 2 LANES”

Department of Transport and Main Roads Infrastructure Management & Delivery Division APPROVED AS OFFICIAL TRAFFIC SIGN 06/01/17 PRINCIPAL ENGINEER Date (Traffic Engineering) R7-3-Q01 1 _ Page 1 of 2

Designed TV 1/17 Checked DJ 1/17 Scale Not to Scale

G9-87-2 R6-10-2 R6-10-2 RIGHT RIGHT RIGHT R7-3-Q01R 2 LANES 2 LANES 2 LANES AHEAD END R7-2 R7-4 Advance Restriction End Restriction signs signs signs R6-10-2 Example left lane restriction LEFT use R7-3-Q01L 2 LANES Colour Legend Notes: 1. Examples of sign combinations to be installed at locations, in Retroreflective white advance, at the beginning and at the end, of restrictions to the two Retroreflective red right / left lanes of a carriageway. 2. For details of R7-3-Q01 refer to page 1. Black

REGULATORY SIGN “RIGHT / LEFT 2 LANES”

Department of Transport and Main Roads Infrastructure Management & Delivery Division APPROVED AS OFFICIAL TRAFFIC SIGN 06/01/17 PRINCIPAL ENGINEER Date (Traffic Engineering) R7-3-Q01 2 _ Page 2 of 2

Designed TV 1/17 Checked DJ 1/17 Scale Not to Scale

c	d	e	f	g	r
600	550	10	30	70	100D	55	50
900	800	15	45	105	150D	70	100
1200	1100	15	45	140	200D	110	100

a r e LEFT & d f g RIGHT b f g LANES f c e a b c d e f g r A 600 550 10 30 70 100D 55 50 B 900 800 15 45 105 150D 70 100 C 1200 1100 15 45 140 200D 110 100 R6-10-2 LEFT & R7-3-Q02 RIGHT LANES Colour Legend Example of use Retroreflective white Note: This sign is to be installed under R6-10-2 sign at locations where restrictions apply to the left and right Black (kerbside) lanes of a carriageway with 3 or more lanes.

SUPPLEMENTARY PLATE “LEFT & RIGHT LANES”

Department of Transport and Main Roads Infrastructure Management & Delivery Division APPROVED AS OFFICIAL TRAFFIC SIGN 2/08/19 PRINCIPAL ENGINEER Date (Traffic Engineering) R7-3-Q02

Designed RH 8/19 Checked DC 8/19 Scale Not to Scale

SUPPLEMENTARY PLATE “KERB LANES”

SIZE	a	b	c	d	e	f	g	r
SIZE A	450	300	5	15	55	75E	40	25
SIZE B	600	400	5	15	75	100E	50	25
SIZE C	900	600	10	30	110	150E	80	50
SIZE D	1200	800	15	45	150	200E	100	100

Colour Legend Retroreflective white Black.

Department of Transport and Main Roads Infrastructure Management & Delivery Division.

APPROVED AS OFFICIAL TRAFFIC SIGN 12/11/19 PRINCIPAL ENGINEER Date (Traffic Engineering).

R7-3-Q03.

Designed YN 11/19.

Checked DC 11/19.

Scale Not to Scale.

REGULATORY SIGN SPEED - TRAMWAY ONLY

a	c b	d	e	f	g	h	k	m	n	o	r1	r2
A	450	900 30	120C	25	200	440	350	20	180D	400	10	15	25
B	600	1200 40	160C	35	266	586	466	25	240D	532	13	20	35
C	900	1800 60	240C	50	400	880	700	40	360D	800	20	30	50
D	1200	2400 80	320C	70	532	1172	932	50	480D	1064	26	40	70

Colour Legend Retroreflective white Retroreflective red Black

Department of Transport and Main Roads Infrastructure Management & Delivery Division APPROVED AS OFFICIAL TRAFFIC SIGN 19/12/22 PRINCIPAL ENGINEER Date (Traffic Engineering Practice) R7-10-Q01 Designed RH 12/22 Checked JP 12/22 Scale Not to Scale

R7-Q01

a	r	e	d	AHEAD	h	b	g	f	c	e	k
R7-Q01C	600	300	5	15	50	80	40	80E	300	25
R7-Q01D	900	450	10	30	75	120	60	120E	450	50

Colour Legend

REGULATORY SIGN “AHEAD - arrow (L & R)”

Department of Transport and Main Roads Infrastructure Management & Delivery Division APPROVED AS OFFICIAL TRAFFIC SIGN 16/06/16 PRINCIPAL ENGINEER Date (Traffic Engineering) R7-Q01 Designed RH 8/95 Checked JD 8/95 Scale Not to Scale

SUPPLEMENTARY PLATE TIMES OF OPERATION SCHOOL DAYS

a	b	c	d	e	f	g	h	k	m	n	o	p	r
A	450	300	6	18	45	45E	40	120C	50	130	45D	15	60C	50
B	600	400	8	24	60	60E	53	160C	67	173	60D	20	80C	75

Colour Legend Black Retroreflective white

View this figure on page 211 of the PDF ↗

R9-1-1-Q01p. 211

SUPPLEMENTARY PLATE TIMES OF OPERATION SCHOOL DAYS · APPROVED AS OFFICIAL TRAFFIC SIGN 06/09/17 · PRINCIPAL ENGINEER Date (Traffic Engineering) · Department of Transport and Main Roads Infrastructure Management & Delivery Division · Designed RH 09/17 · Checked DJ 09/17 · Scale Not to Scale

R9-Q04 1 – Supplementary plate ... excepted (2 lines)

Size	a	b	c	d	e	f	g	r
A	450	300	5	15	65	60D	50	25
B	600	400	5	15	86	80D	68	25
C	750	500	10	30	108	100D	84	50

View this figure on page 212 of the PDF ↗

R9-Q04 1 – Supplementary plate ... excepted (2 lines)p. 212

Exception class* · CARS · TAXIS · TRAMS · TRUCKS · Colour Legend · Retroreflective white · Black · SUPPLEMENTARY PLATE ... EXCEPTED (2 LINES) · Department of Transport and Main Roads · Infrastructure Management & Delivery Division · APPROVED AS OFFICIAL TRAFFIC SIGN 11/05/23 · PRINCIPAL ENGINEER · Date · (Traffic Engineering Practice) · R9-Q04 1 · Page 1/3 · Designed RH 09/22 · Checked JP 05/23 · Scale Not to Scale · A

R9-Q04 1 – Supplementary plate ... excepted (2 lines)

b	c	d	e	f	g	r
300	5	15	65	60D	50	25
400	5	15	86	80D	68	25
500	10	30	108	100D	84	50

R9-Q04 2 – Supplementary plate ... excepted (3 lines)

Size	a	b	c	d	e	f	g	h	r
A	450	300	5	15	45	50D	30	45	25
B	600	400	5	15	60	65D	42	61	25
C	750	500	10	30	72	85D	50	73	50

View this figure on page 213 of the PDF ↗

R9-Q04 2 – Supplementary plate ... excepted (3 lines)p. 213

Exception class* · AUTHORISED VEHICLES · EMERGENCY SERVICE VEHICLES · BUSES · BICYCLES · LOCAL STOCK AND DELIVERIES · TAXIS · CONSTRUCTION VEHICLES · LOCAL TRAFFIC VEHICLES · T2/T3 VEHICLES · [COUNCIL] VEHICLES · POLICE VEHICLES · GVM AND BUSES UNDER · CANE VEHICLES · SCHOOL BUSES · Colour Legend · Retroreflective white · Black · SUPPLEMENTARY PLATE ... EXCEPTED (3 LINES) · Department of Transport and Main Roads · Infrastructure Management & Delivery Division · APPROVED AS OFFICIAL TRAFFIC SIGN 11/05/23 · PRINCIPAL ENGINEER · Date · (Traffic Engineering Practice) · R9-Q04 2 · Page 2/3 · Designed RH 09/22 · Checked JP 05/23 · Scale Not to Scale · A

R9-Q04 2 – Supplementary plate ... excepted (3 lines)

b	c	d	e	f	g	h	r
300	5	15	45	50D	30	45	25
400	5	15	60	65D	42	61	25
500	10	30	72	85D	50	73	50

R9-Q04 3 – Supplementary plate ... excepted (4 lines)

Size	a	b	c	d	e	f	g	r
A	450	380	5	15	45	50D	30	25
B	600	500	10	30	60	65D	40	50
C	750	630	10	30	70	85D	50	50

View this figure on page 214 of the PDF ↗

R9-Q04 3 – Supplementary plate ... excepted (4 lines)p. 214

Exception class* · [COUNCIL] VEHICLES · BUSES AND TRANSIT LANE · AUTHORISED VEHICLES · CONSTRUCTION VEHICLES · [COUNCIL] VEHICLES · T3 AND VEHICLES · AUTHORISED VEHICLES · TRUCK LANE · LONGER THAN ... m · BUSES · TRUCKS · VEHICLES ... m AND .. m AND SHORTER UNDER UNDER THAN ... m · Colour Legend · Retroreflective white · Black · SUPPLEMENTARY PLATE ... EXCEPTED (4 LINES) · Department of Transport and Main Roads · Infrastructure Management & Delivery Division · APPROVED AS OFFICIAL TRAFFIC SIGN 11/05/23 · PRINCIPAL ENGINEER · Date · (Traffic Engineering Practice) · R9-Q04 3 · Page 3/3 · Designed RH 09/22 · Checked JP 05/23 · Scale Not to Scale · A

R9-Q04 3 – Supplementary plate ... excepted (4 lines)

b	c	d	e	f	g	r
380	5	15	45	50D	30	25
500	10	30	60	65D	40	50
630	10	30	70	85D	50	50

R9-Q05 – Supplementary plate "ON SIDE ROAD"

Size	a	b	c	d	e	f	g	h	k	m	n	r
A	600	400	5	15	44	80	25	80C	35	80D	56	25
B	750	500	10	30	55	100	32	100C	43	100D	70	50
C	900	600	10	30	66	120	38	120C	52	120D	84	50
D	1200	800	15	45	88	160	50	160C	70	160D	112	100

View this figure on page 215 of the PDF ↗

R9-Q05 – Supplementary plate "ON SIDE ROAD"p. 215

ON SIDE ROAD · Colour Legend · Retroreflective white (background) · Black (legend and border) · SUPPLEMENTARY PLATE "ON SIDE ROAD" · Department of Transport and Main Roads · Infrastructure Management & Delivery Division · APPROVED AS OFFICIAL TRAFFIC SIGN 15/05/23 · PRINCIPAL ENGINEER · Date · (Traffic Engineering Practice) · R9-Q05 · Designed RH 05/00 · Checked JP 05/23 · Scale Not to Scale · A

R9-Q05 – Supplementary plate "ON SIDE ROAD"

a	b	c	d	e	f	g	h	k	m	n	r
600	400	5	15	44	80	25	80C	35	80D	56	25
750	500	10	30	55	100	32	100C	43	100D	70	50
900	600	10	30	66	120	38	120C	52	120D	84	50
1200	800	15	45	88	160	50	160C	70	160D	112	100

a	r	e	d	BICYCLES	b	f	c
A	450	150	5	15	45	60C	25
B	600	200	10	30	60	80C	50
C	900	300	10	30	90	120C	50
D	1200	400	15	45	120	160C	100

Colour Legend Class 400 retroreflective white Black

SUPPLEMENTARY PLATE BICYCLES

Department of Transport and Main Roads Infrastructure Management & Delivery Division

APPROVED AS OFFICIAL TRAFFIC SIGN 18/12/24 A/PRINCIPAL ENGINEER Date (Traffic Engineering Practice)

R9-Q06

Designed RH 12/24

Checked JP 12/24

Scale Not to Scale

b	c	d	e	f	r
A	450	150	5	15	45	60C	25
B	600	200	10	30	60	80C	50
C	900	300	10	30	90	120C	50
D	1200	400	15	45	120	160C	100

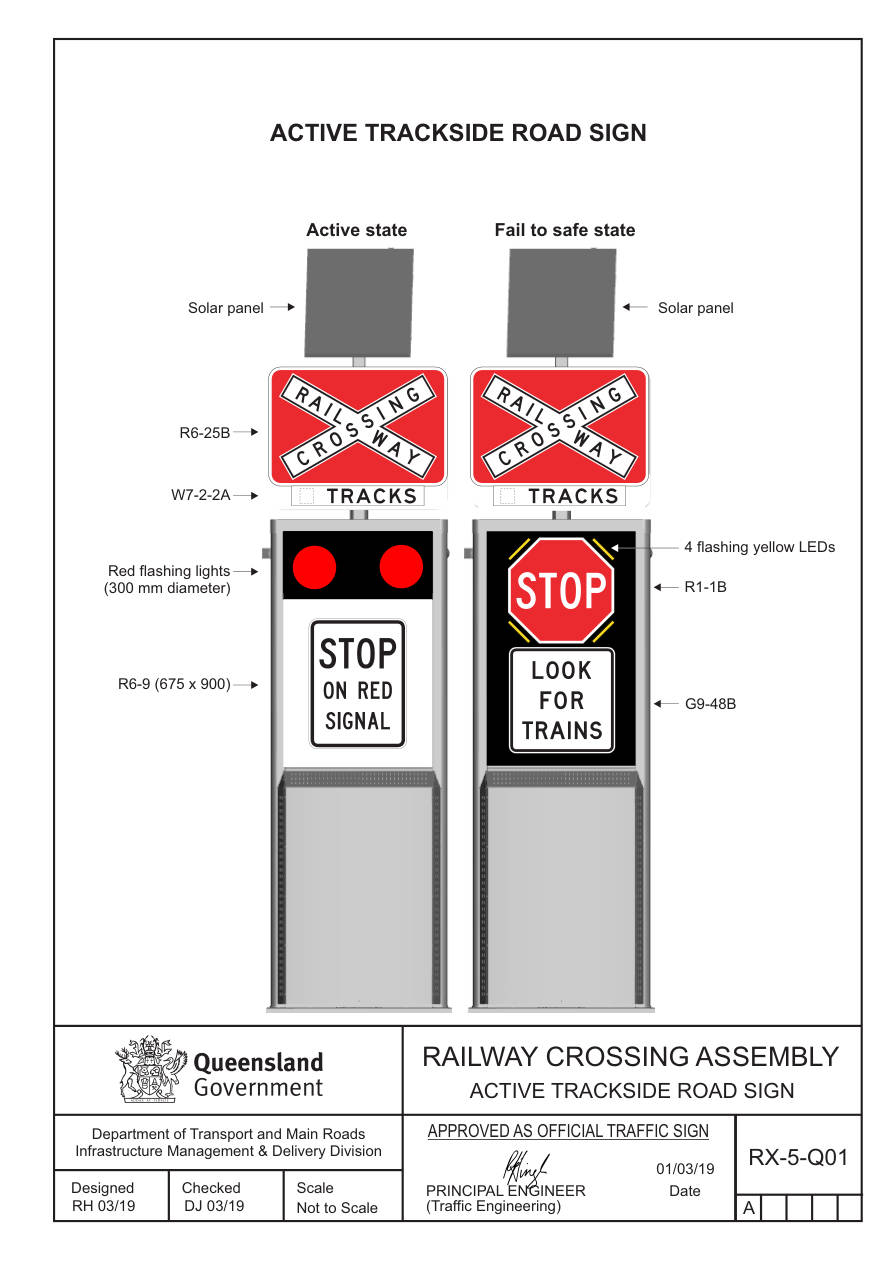

ACTIVE TRACKSIDE ROAD SIGN Active state Fail to safe state Solar panel Solar panel R6-25B W7-2-2A 4 flashing yellow LEDs Red flashing lights (300 mm diameter) R1-1B R6-9 (675 x 900) G9-48B

RAILWAY CROSSING ASSEMBLY ACTIVE TRACKSIDE ROAD SIGN

Department of Transport and Main Roads Infrastructure Management & Delivery Division

APPROVED AS OFFICIAL TRAFFIC SIGN 01/03/19 PRINCIPAL ENGINEER Date (Traffic Engineering)

RX-5-Q01

Designed RH 03/19

Checked DJ 03/19

Scale Not to Scale

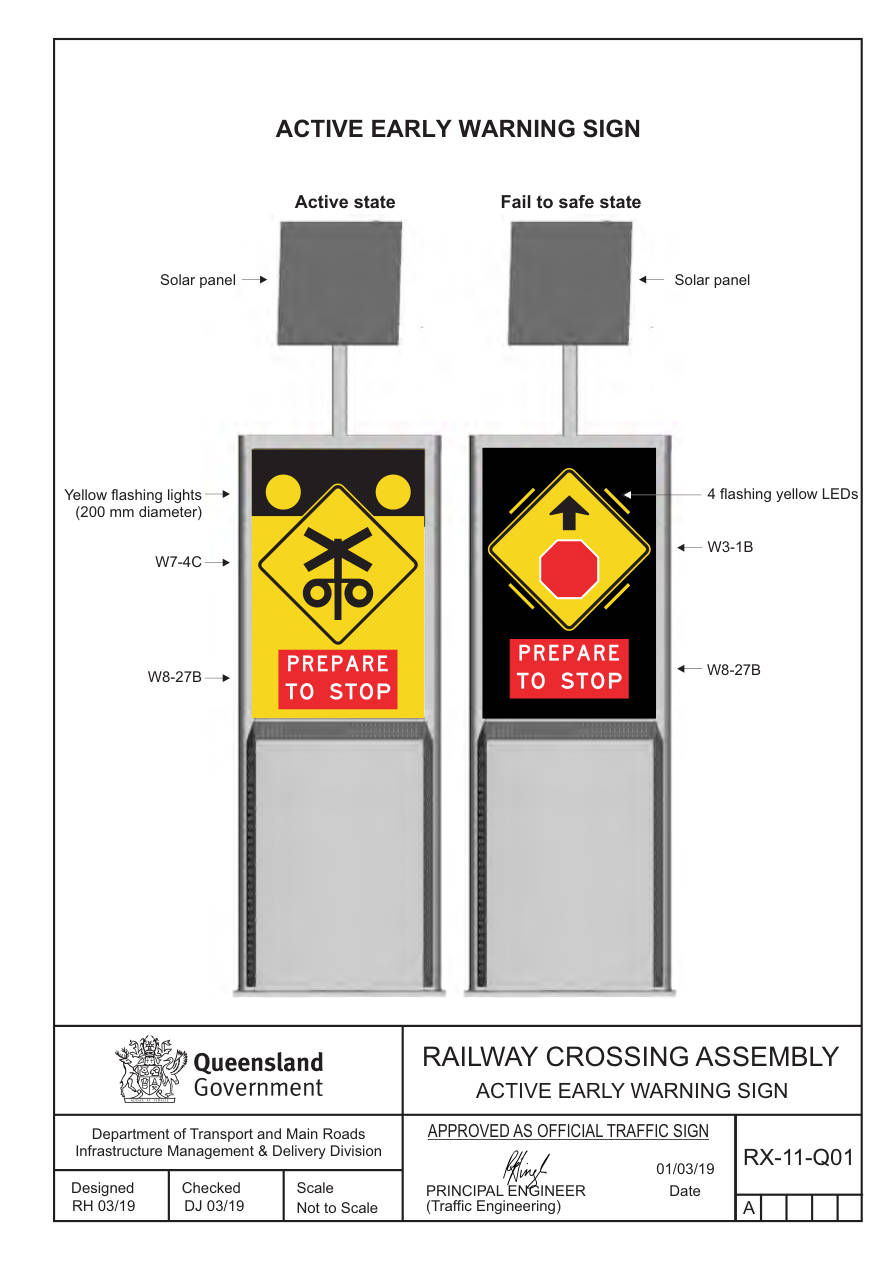

ACTIVE EARLY WARNING SIGN Active state Fail to safe state Solar panel Solar panel Yellow flashing lights 4 flashing yellow LEDs (200 mm diameter) W3-1B W7-4C W8-27B W8-27B

RAILWAY CROSSING ASSEMBLY ACTIVE EARLY WARNING SIGN

Department of Transport and Main Roads Infrastructure Management & Delivery Division

APPROVED AS OFFICIAL TRAFFIC SIGN 01/03/19 PRINCIPAL ENGINEER Date (Traffic Engineering)

RX-11-Q01

Designed RH 03/19

Checked DJ 03/19

Scale Not to Scale

Drawings from the original pages

a	b	c	d	e	f	g	r	r 1	r 2
A	450	5	170	230	19	38	205	45	220	183
B	600	6	227	306	25	50	273	60	293	244
C	750	7	284	382	31	62	341	75	366	305

Size	a	b	c	d	e	f	g	h	r
A	450	300	5	15	45	50D	30	45	25
B	600	400	5	15	60	65D	42	61	25
C	750	500	10	30	72	85D	50	73	50

a	b	c	d	e	f	g	r	r 1	r 2
A	450	5	170	230	19	38	205	45	220	183
B	600	6	227	306	25	50	273	60	293	244
C	750	7	284	382	31	62	341	75	366	305

Size	a	b	c	d	e	f	g	h	r
A	450	300	5	15	45	50D	30	45	25
B	600	400	5	15	60	65D	42	61	25
C	750	500	10	30	72	85D	50	73	50

a	b	c	d	e	f	g	r	r 1	r 2
A	450	5	170	230	19	38	205	45	220	183
B	600	6	227	306	25	50	273	60	293	244
C	750	7	284	382	31	62	341	75	366	305

Size	a	b	c	d	e	f	g	h	r
A	450	300	5	15	45	50D	30	45	25
B	600	400	5	15	60	65D	42	61	25
C	750	500	10	30	72	85D	50	73	50
