4.1Example 1 – Lane closure with traffic control on a multi-lane, high-speed, divided road#

Figure 4.1 illustrates Example 1.

The TGS example design steps and discussions detailed at Section 4.1.4 should be read in conjunction with the following example TGS diagram (see Figure 4.1).

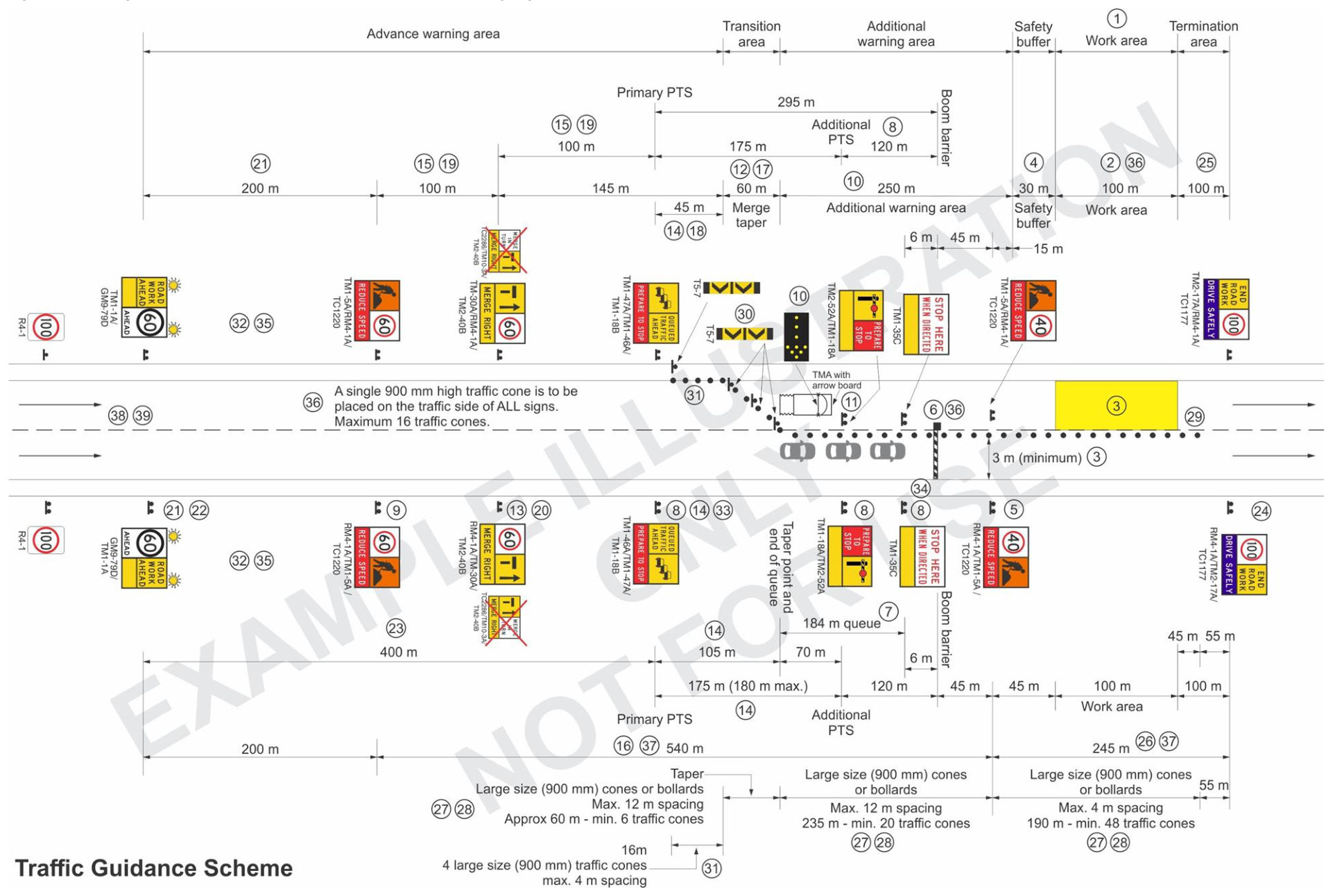

Figure 4.1 – Example 1: Lane closure with traffic control on a multi-lane, high-speed, divided road
