The following replaces the corresponding signs included in Table A.1 in AS 1742.These revised multi-message sign panels are for use in Queensland only.
Table A.1 – List of additional multi-message sign panels
Sign
Sign number
Size (mm)
Figure
Notes
SURVEYORS AHEAD
TM1-37C
1200 x 600
The SURVEYORS AHEAD sign may be used for surveying works, in lieu of the Workers (symbolic) (T1-5, TM1-5A or TM1-5C sign).
ROAD PLANT ON SIDE ROAD
TM1-48C
1200 x 600
This sign is the same as TM1-27C. Refer to Clause 4.6.7 for requirements.
DO NOT OVERTAKE
GM9-90B
1200 × 300
This sign may be used in conjunction with another panel placed above it describing why overtaking is prohibited. The DO NOT OVERTAKE panel shall only be used where overtaking is or was possible (or may be attempted), however due to a change in conditions overtaking is no longer possible or considered safe and is to be prohibited.
Sign
Sign number
Size (mm)
Figure
Notes

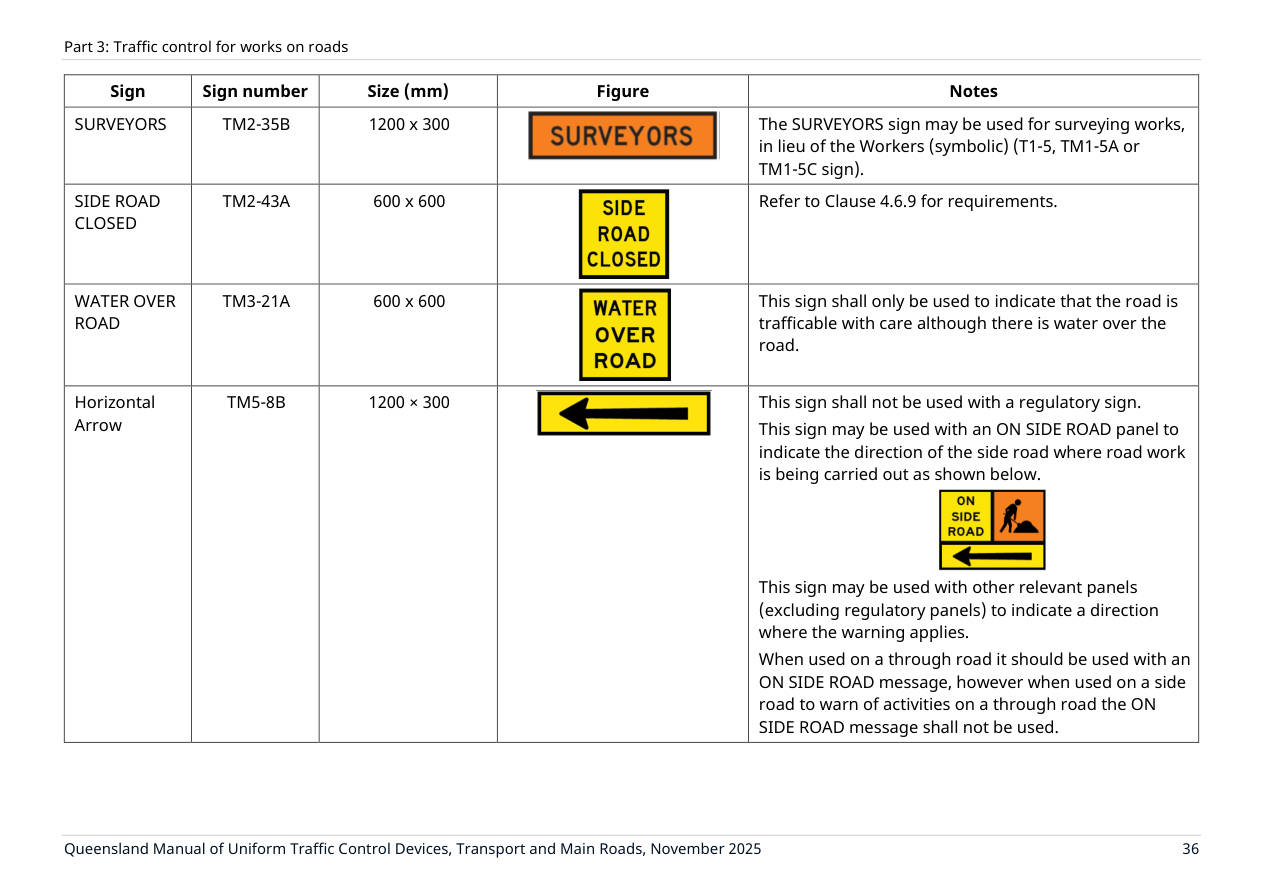

SURVEYORS
TM2-35B
1200 x 300
The SURVEYORS sign may be used for surveying works, in lieu of the Workers (symbolic) (T1-5, TM1-5A or TM1-5C sign).
SIDE ROAD CLOSED
TM2-43A
600 x 600
Refer to Clause 4.6.9 for requirements.
WATER OVER ROAD
TM3-21A
600 x 600
This sign shall only be used to indicate that the road is trafficable with care although there is water over the road.
Horizontal Arrow
TM5-8B
1200 × 300
This sign shall not be used with a regulatory sign. This sign may be used with an ON SIDE ROAD panel to indicate the direction of the side road where road work is being carried out as shown below. This sign may be used with other relevant panels (excluding regulatory panels) to indicate a direction where the warning applies. When used on a through road it should be used with an ON SIDE ROAD message, however when used on a side road to warn of activities on a through road the ON SIDE ROAD message shall not be used.

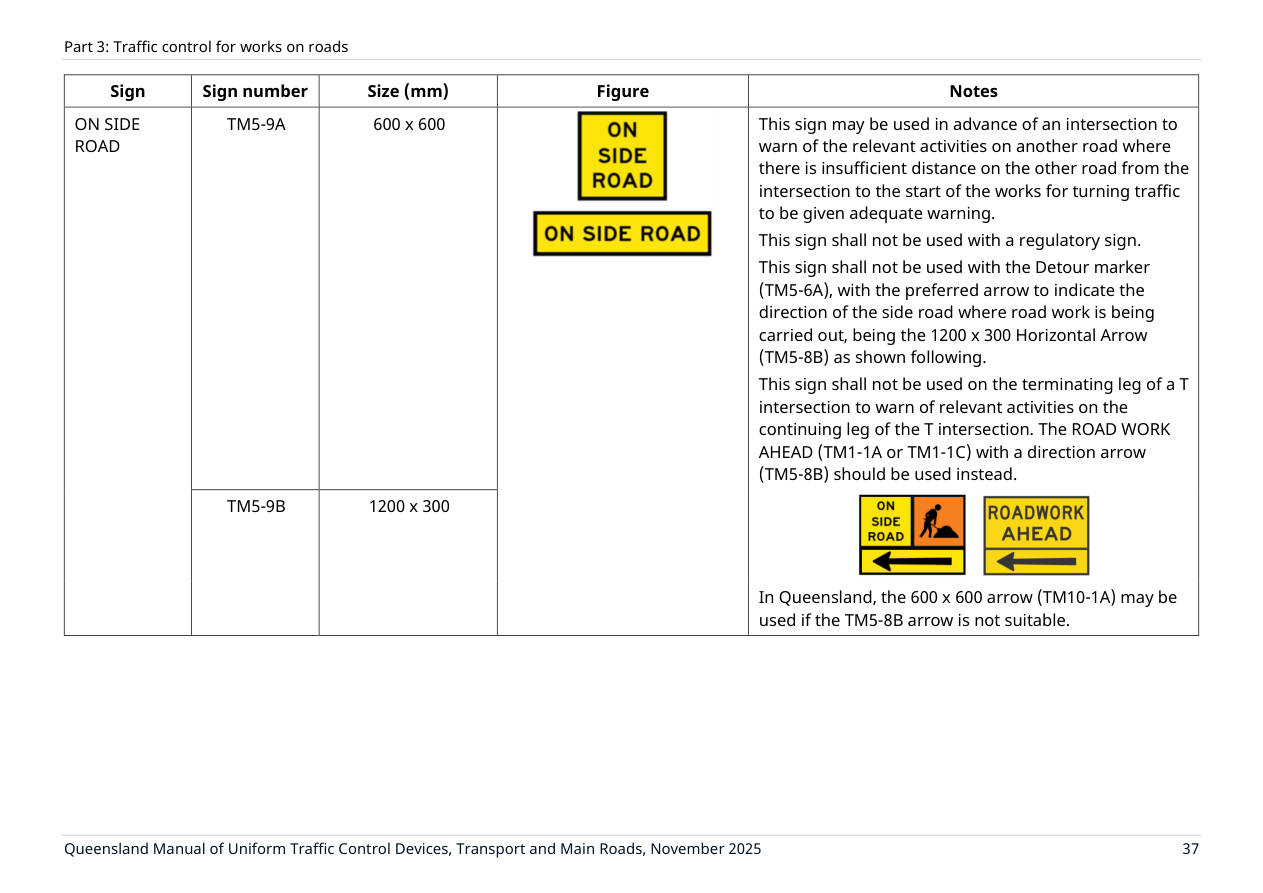

ON SIDE ROAD
TM5-9A
600 x 600
This sign may be used in advance of an intersection to warn of the relevant activities on another road where there is insufficient distance on the other road from the intersection to the start of the works for turning traffic to be given adequate warning. This sign shall not be used with a regulatory sign. This sign shall not be used with the Detour marker (TM5-6A), with the preferred arrow to indicate the direction of the side road where road work is being carried out, being the 1200 x 300 Horizontal Arrow (TM5-8B) as shown following. This sign shall not be used on the terminating leg of a T intersection to warn of relevant activities on the continuing leg of the T intersection. The ROAD WORK AHEAD (TM1-1A or TM1-1C) with a direction arrow (TM5-8B) should be used instead. In Queensland, the 600 x 600 arrow (TM10-1A) may be used if the TM5-8B arrow is not suitable.
ON SIDE ROAD
TM5-9B
1200 x 300
Sign
Sign number
Size (mm)
Figure
Notes

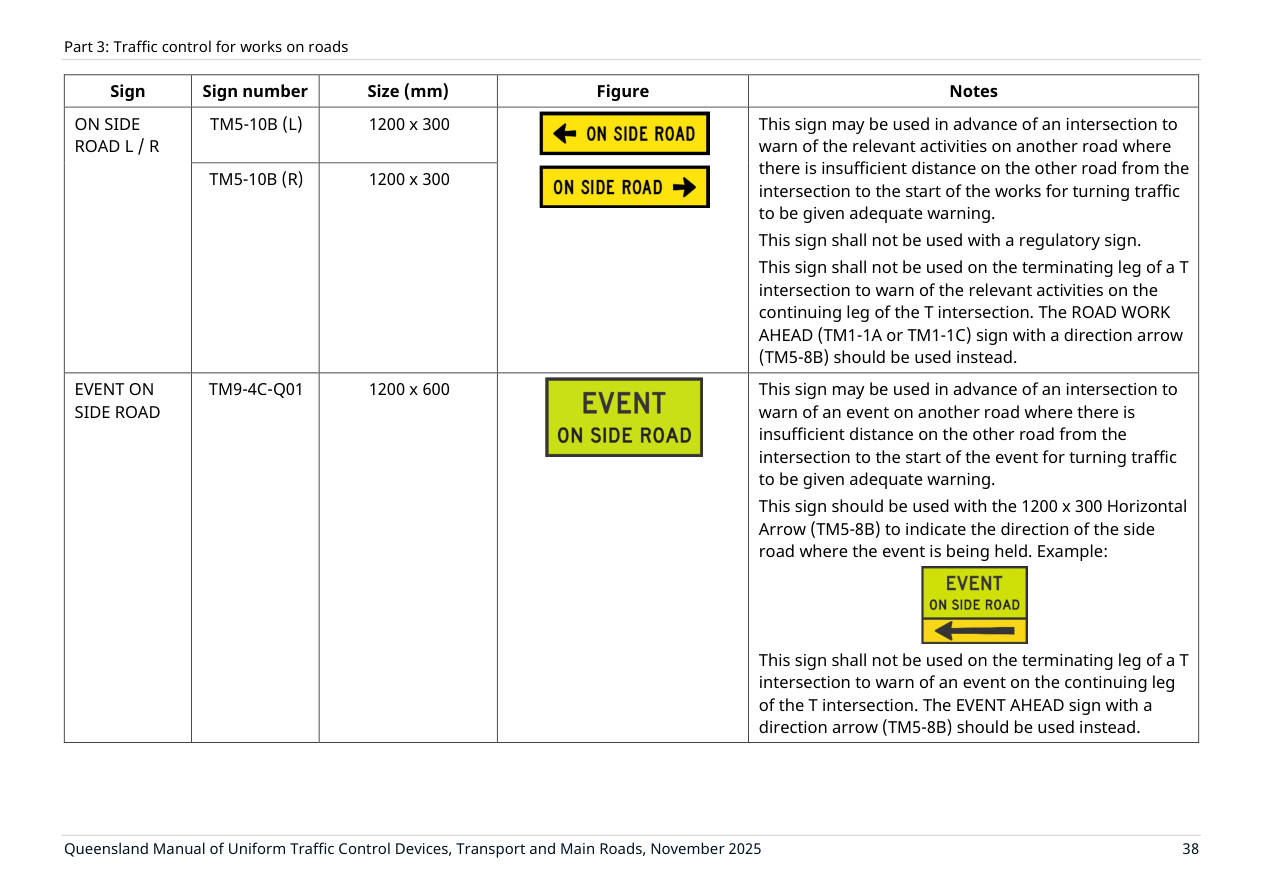

ON SIDE ROAD L / R
TM5-10B (L)
1200 x 300
This sign may be used in advance of an intersection to warn of the relevant activities on another road where there is insufficient distance on the other road from the intersection to the start of the works for turning traffic to be given adequate warning. This sign shall not be used with a regulatory sign. This sign shall not be used on the terminating leg of a T intersection to warn of the relevant activities on the continuing leg of the T intersection. The ROAD WORK AHEAD (TM1-1A or TM1-1C) sign with a direction arrow (TM5-8B) should be used instead.
ON SIDE ROAD L / R
TM5-10B (R)
1200 x 300
EVENT ON SIDE ROAD
TM9-4C-Q01
1200 x 600
This sign may be used in advance of an intersection to warn of an event on another road where there is insufficient distance on the other road from the intersection to the start of the event for turning traffic to be given adequate warning. This sign should be used with the 1200 x 300 Horizontal Arrow (TM5-8B) to indicate the direction of the side road where the event is being held. Example: This sign shall not be used on the terminating leg of a T intersection to warn of an event on the continuing leg of the T intersection. The EVENT AHEAD sign with a direction arrow (TM5-8B) should be used instead.
Sign
Sign number
Size (mm)
Figure
Notes
EVENT ON SIDE ROAD L / R
TM9-5B (L)
1200 x 300
This sign may be used in advance of an intersection to warn of an event on another road where there is insufficient distance on the other road from the intersection to the start of the event for turning traffic to be given adequate warning. This sign shall not be used with a regulatory sign. This sign shall not be used on the terminating leg of a T intersection to warn of an event on the continuing leg of the T intersection. The EVENT AHEAD sign with a direction arrow (TM5-8B) should be used instead.
EVENT ON SIDE ROAD L / R
TM9-5B (R)
1200 x 300
Addition
The additional multi-message sign panels detailed in Table A.2 are accepted for use in Queensland.
Table A.2List of additional multi-message sign panels for use in Queensland#

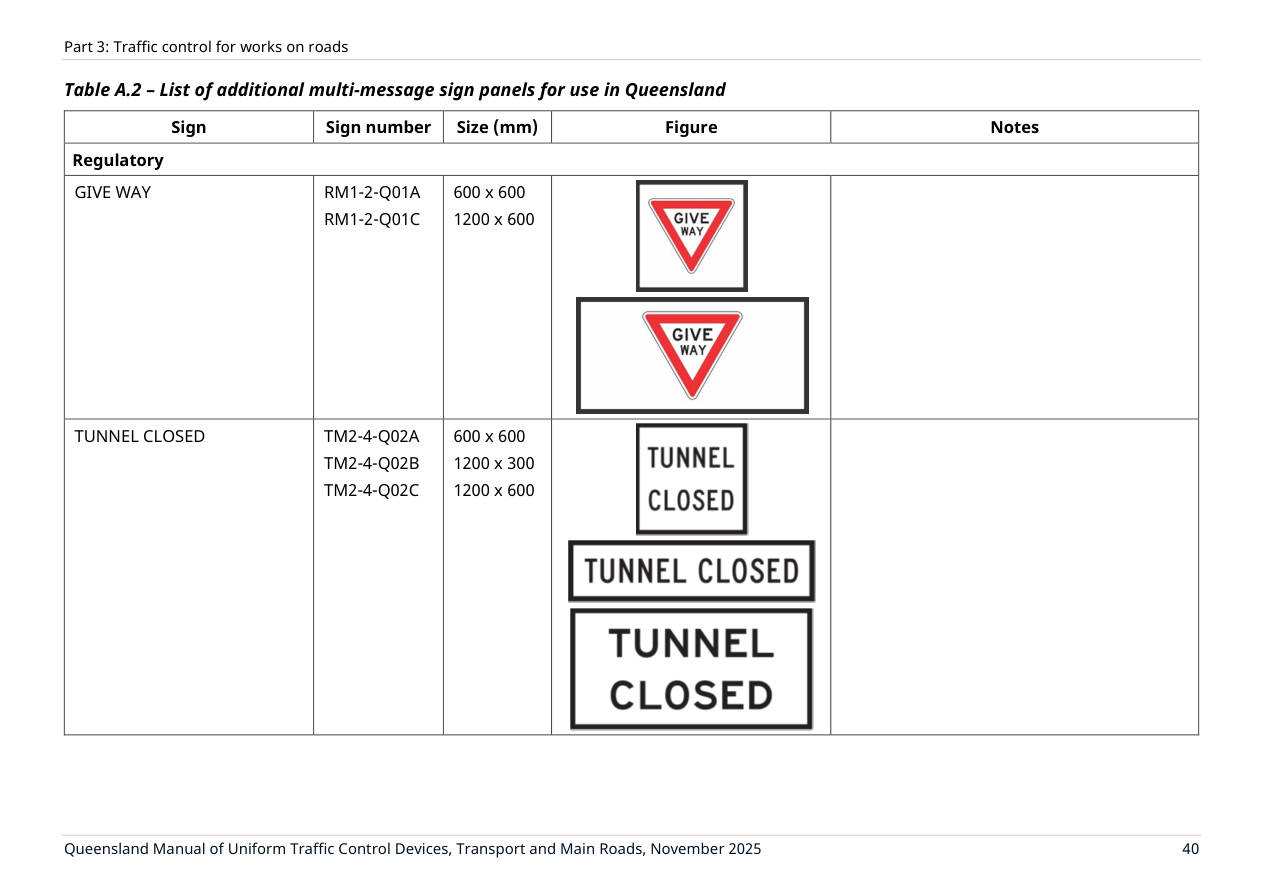

Table A.2 – List of additional multi-message sign panels for use in Queensland
Sign
Sign number
Size (mm)
Figure
Notes
Regulatory
GIVE WAY
RM1-2-Q01A RM1-2-Q01C
600 x 600 1200 x 600
TUNNEL CLOSED
TM2-4-Q02A TM2-4-Q02B TM2-4-Q02C
600 x 600 1200 x 300 1200 x 600

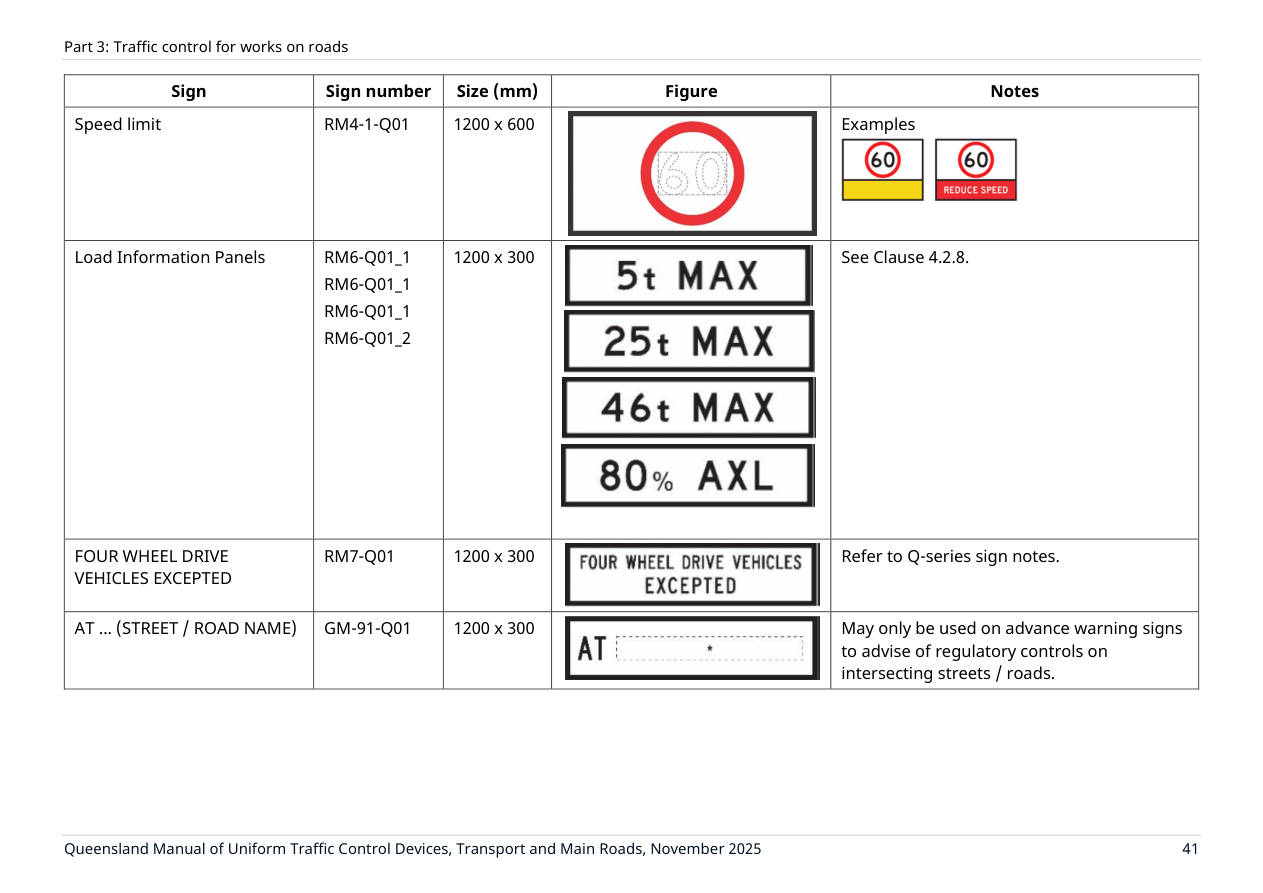

Speed limit
RM4-1-Q01
1200 x 600
Examples
Load Information Panels
RM6-Q01 1 _ RM6-Q01 1 _ RM6-Q01 1 _ RM6-Q01 2 _
1200 x 300
See Clause 4.2.8.
FOUR WHEEL DRIVE VEHICLES EXCEPTED
RM7-Q01
1200 x 300
Refer to Q-series sign notes.
AT ... (STREET / ROAD NAME)
GM-91-Q01
1200 x 300
May only be used on advance warning signs to advise of regulatory controls on intersecting streets / roads.
Table in words
The sign GIVE WAY with sign numbers RM1-2-Q01A and RM1-2-Q01C has sizes 600 x 600 and 1200 x 600.
The sign TUNNEL CLOSED with sign numbers TM2-4-Q02A, TM2-4-Q02B and TM2-4-Q02C has sizes 600 x 600, 1200 x 300 and 1200 x 600.
The Speed limit sign has sign number RM4-1-Q01 and size 1200 x 600 mm; Examples.
The Load Information Panels sign has sign number RM6-Q01 1 _ RM6-Q01 1 _ RM6-Q01 1 _ RM6-Q01 2 _ and size 1200 x 300 mm; See Clause 4.2.8.
The FOUR WHEEL DRIVE VEHICLES EXCEPTED sign has sign number RM7-Q01 and size 1200 x 300 mm; Refer to Q-series sign notes.
The AT ... (STREET / ROAD NAME) sign has sign number GM-91-Q01 and size 1200 x 300 mm; May only be used on advance warning signs to advise of regulatory controls on intersecting streets / roads.
Sign
Sign number
Size (mm)
Figure
Notes

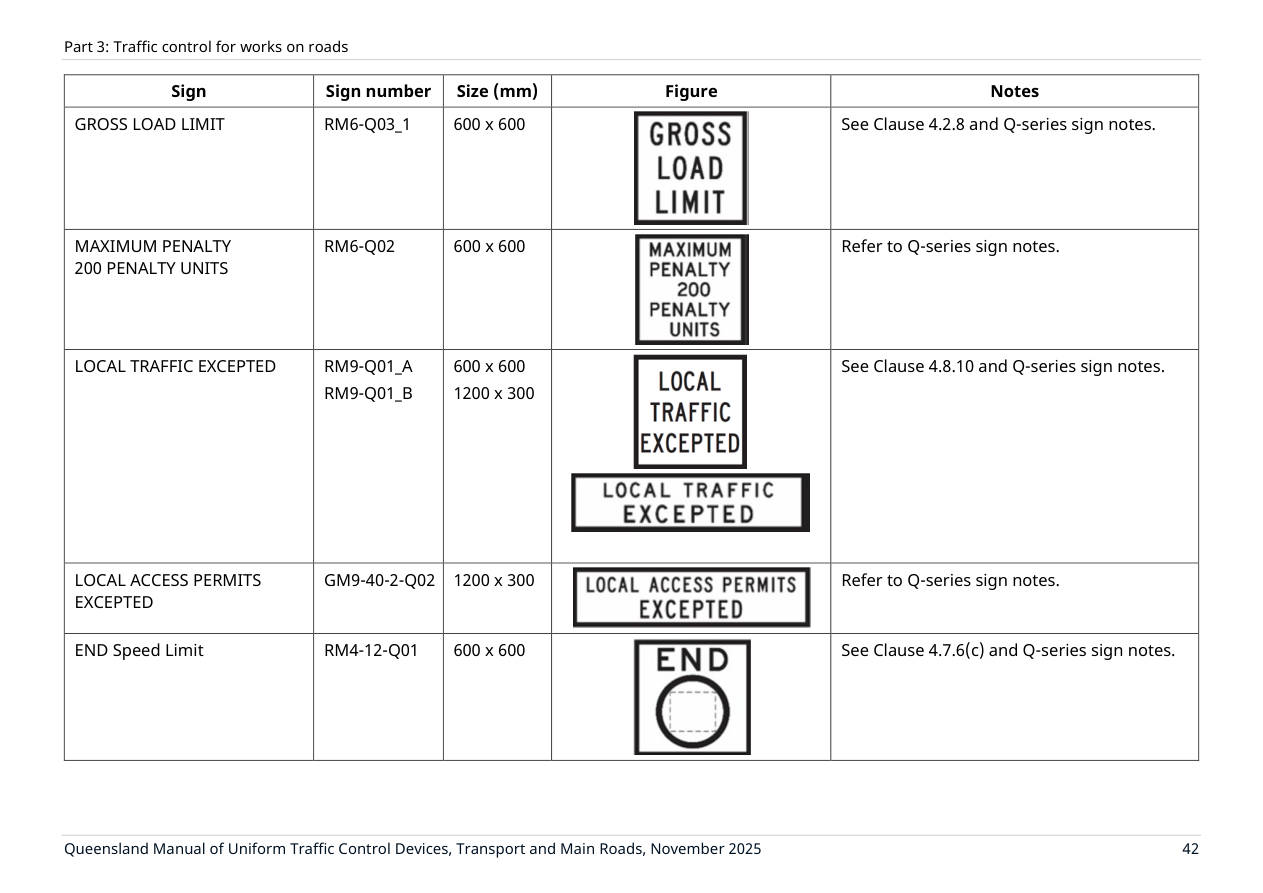

GROSS LOAD LIMIT
RM6-Q03 1 _
600 x 600
See Clause 4.2.8 and Q-series sign notes.
MAXIMUM PENALTY 200 PENALTY UNITS
RM6-Q02
600 x 600
Refer to Q-series sign notes.
LOCAL TRAFFIC EXCEPTED
RM9-Q01 A _ RM9-Q01 B _
600 x 600 1200 x 300
See Clause 4.8.10 and Q-series sign notes.
LOCAL ACCESS PERMITS EXCEPTED
GM9-40-2-Q02
1200 x 300
Refer to Q-series sign notes.
END Speed Limit
RM4-12-Q01
600 x 600
See Clause 4.7.6(c) and Q-series sign notes.
Sign
Sign number
Size (mm)
Figure
Notes

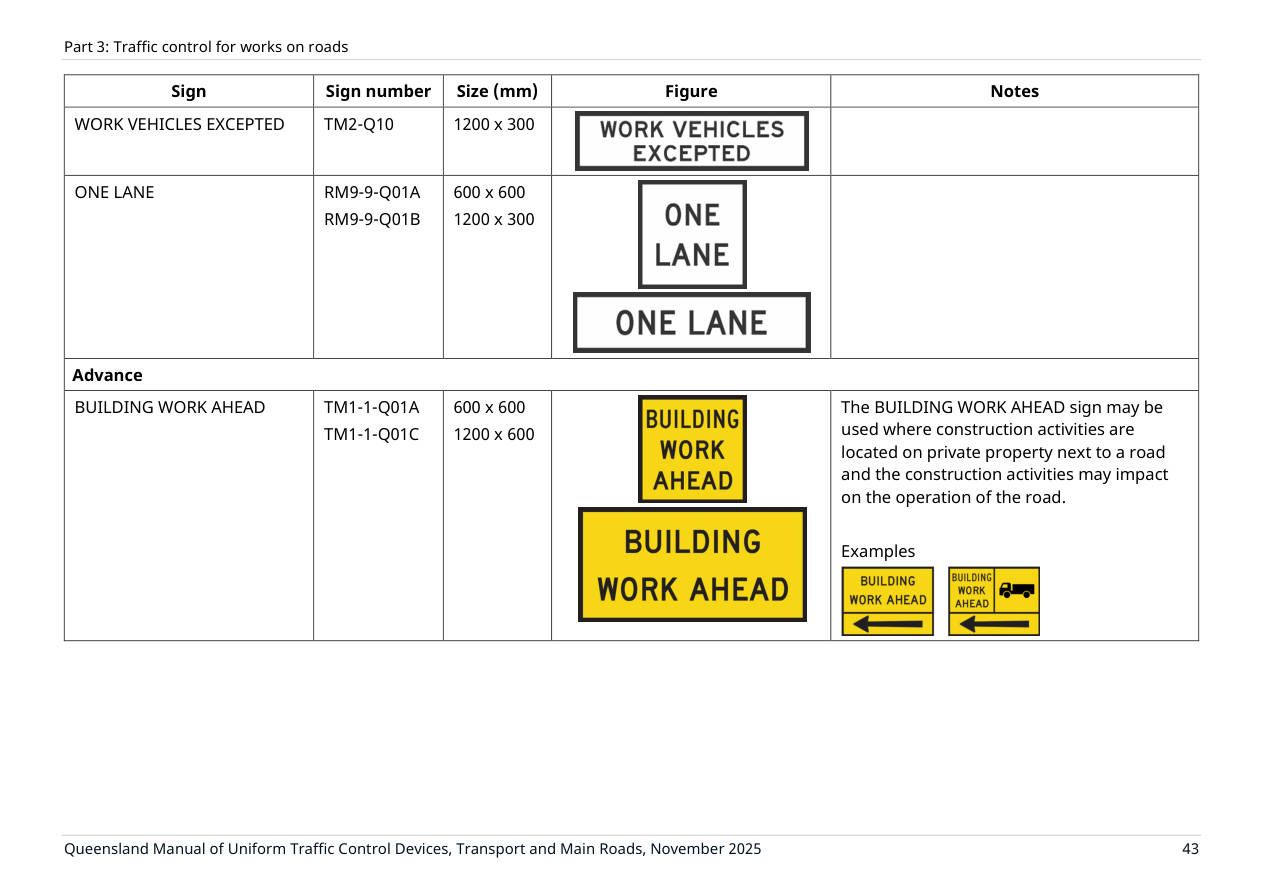

WORK VEHICLES EXCEPTED
TM2-Q10
1200 x 300
ONE LANE
RM9-9-Q01A RM9-9-Q01B
600 x 600 1200 x 300
Advance
BUILDING WORK AHEAD
TM1-1-Q01A TM1-1-Q01C
600 x 600 1200 x 600
The BUILDING WORK AHEAD sign may be used where construction activities are located on private property next to a road and the construction activities may impact on the operation of the road. Examples
Sign
Sign number
Size (mm)
Figure
Notes

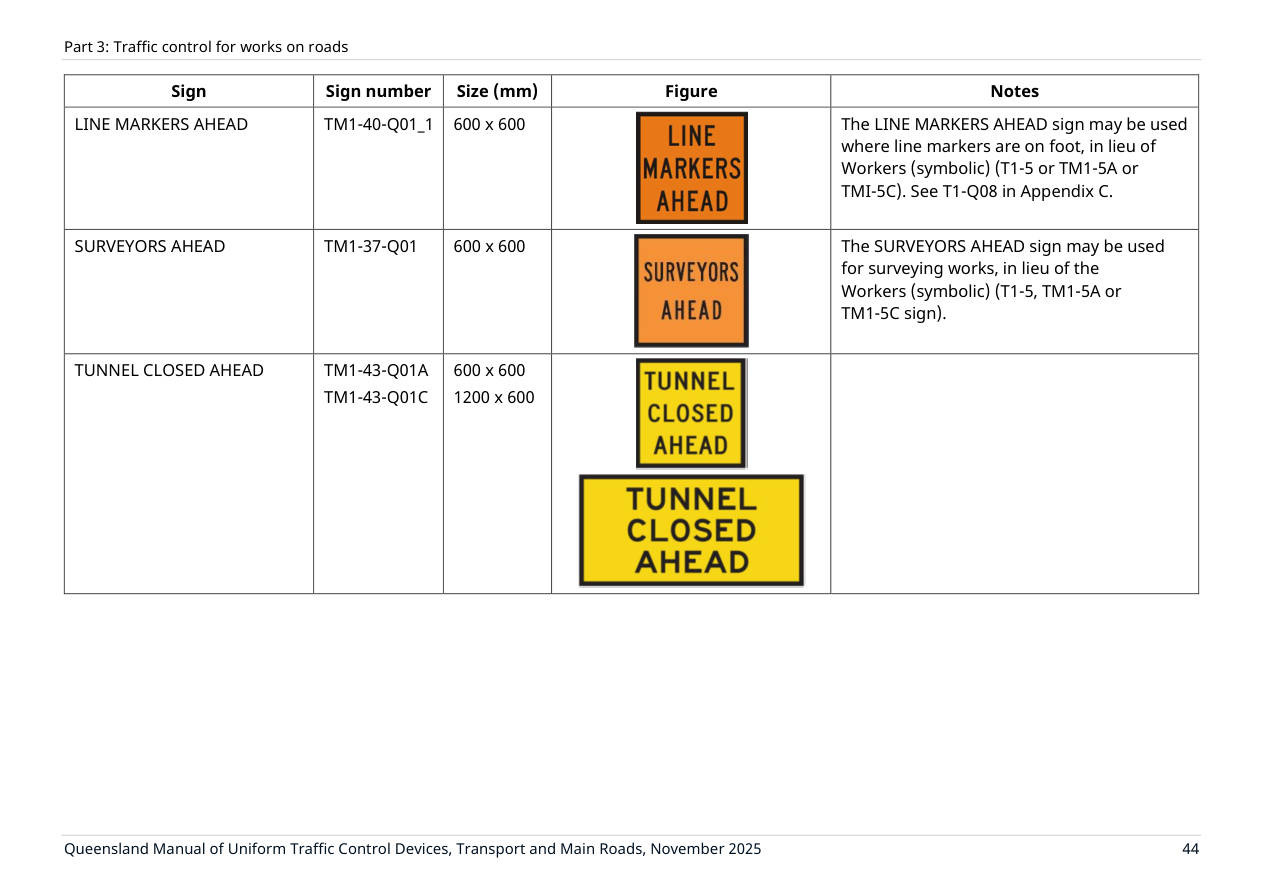

LINE MARKERS AHEAD
TM1-40-Q01 1 _
600 x 600
The LINE MARKERS AHEAD sign may be used where line markers are on foot, in lieu of Workers (symbolic) (T1-5 or TM1-5A or TMI-5C). See T1-Q08 in Appendix C.
SURVEYORS AHEAD
TM1-37-Q01
600 x 600
The SURVEYORS AHEAD sign may be used for surveying works, in lieu of the Workers (symbolic) (T1-5, TM1-5A or TM1-5C sign).
TUNNEL CLOSED AHEAD
TM1-43-Q01A TM1-43-Q01C
600 x 600 1200 x 600

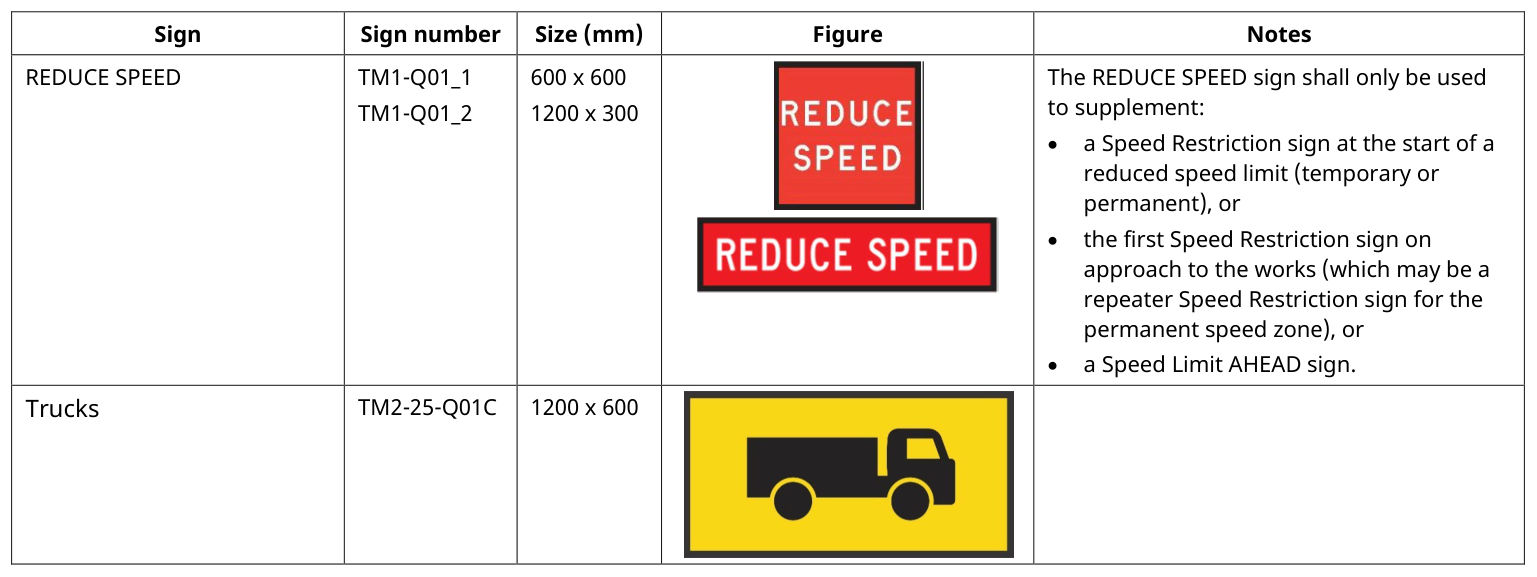

REDUCE SPEED
TM1-Q01 1 _ TM1-Q01 2 _
600 x 600 1200 x 300
The REDUCE SPEED sign shall only be used to supplement: • a Speed Restriction sign at the start of a reduced speed limit (temporary or permanent), or • the first Speed Restriction sign on approach to the works (which may be a repeater Speed Restriction sign for the permanent speed zone), or • a Speed Limit AHEAD sign.
Trucks
TM2-25-Q01C
1200 x 600
Table in words
The LINE MARKERS AHEAD sign has sign number TM1-40-Q01 1 _ and size 600 x 600 mm; The LINE MARKERS AHEAD sign may be used where line markers are on foot, in lieu of Workers (symbolic) (T1-5 or TM1-5A or TMI-5C). See T1-Q08 in Appendix C.
The SURVEYORS AHEAD sign has sign number TM1-37-Q01 and size 600 x 600 mm; The SURVEYORS AHEAD sign may be used for surveying works, in lieu of the Workers (symbolic) (T1-5, TM1-5A or TM1-5C sign).
The TUNNEL CLOSED AHEAD sign has sign number TM1-43-Q01A TM1-43-Q01C and size 600 x 600 1200 x 600 mm.
The REDUCE SPEED sign has sign number TM1-Q01 1 _ TM1-Q01 2 _ and size 600 x 600 1200 x 300.
The REDUCE SPEED sign shall only be used to supplement: • a Speed Restriction sign at the start of a reduced speed limit (temporary or permanent), or • the first Speed Restriction sign on approach to the works (which may be a repeater Speed Restriction sign for the permanent speed zone), or • a Speed Limit AHEAD sign.
The Trucks sign has sign number TM2-25-Q01C and size 1200 x 600.
Sign
Sign number
Size (mm)
Figure
Notes

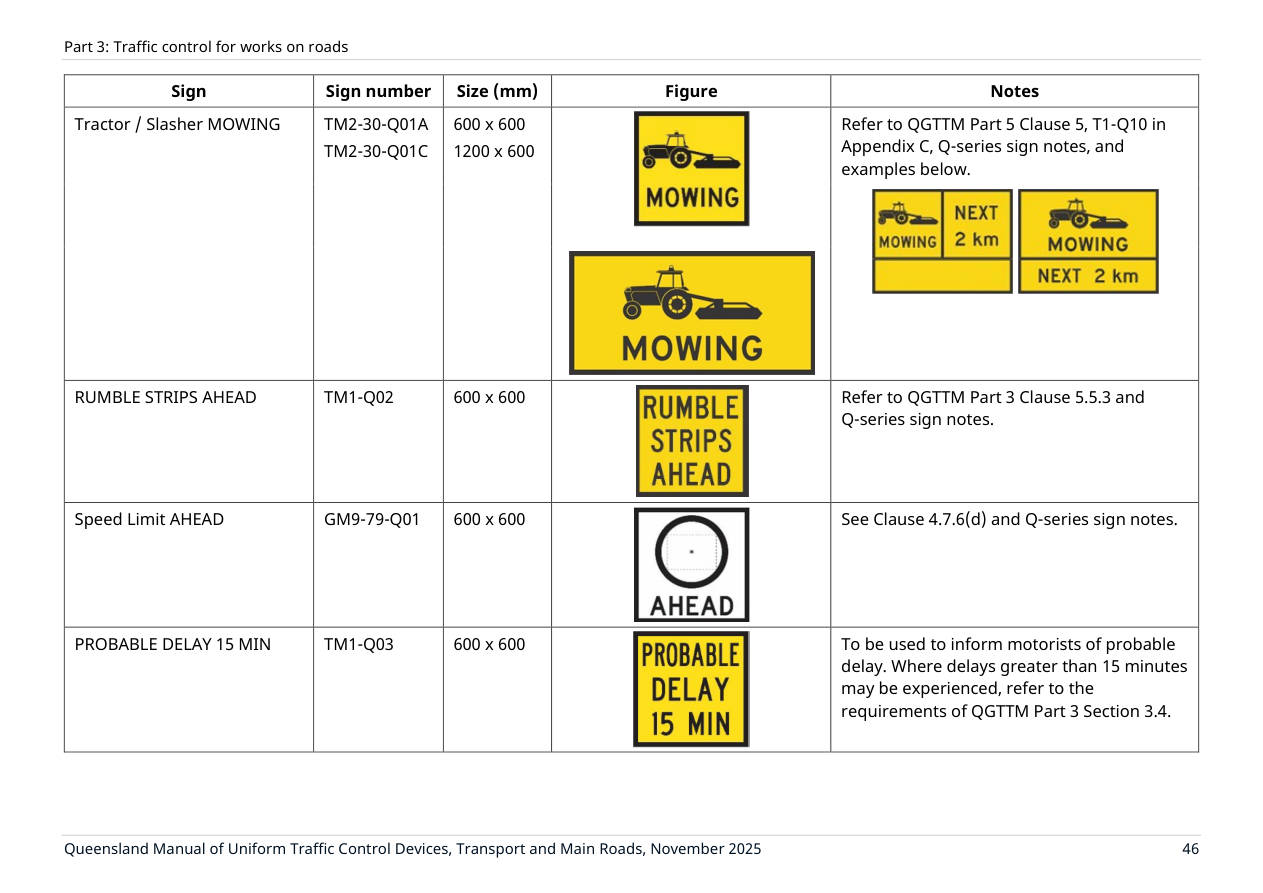

Tractor / Slasher MOWING
TM2-30-Q01A TM2-30-Q01C
600 x 600 1200 x 600
Refer to QGTTM Part 5 Clause 5, T1-Q10 in Appendix C, Q-series sign notes, and examples below.
RUMBLE STRIPS AHEAD
TM1-Q02
600 x 600
Refer to QGTTM Part 3 Clause 5.5.3 and Q-series sign notes.
Speed Limit AHEAD
GM9-79-Q01
600 x 600
See Clause 4.7.6(d) and Q-series sign notes.
PROBABLE DELAY 15 MIN
TM1-Q03
600 x 600
To be used to inform motorists of probable delay. Where delays greater than 15 minutes may be experienced, refer to the requirements of QGTTM Part 3 Section 3.4.
Table in words
The Tractor / Slasher MOWING sign has sign number TM2-30-Q01A TM2-30-Q01C and size 600 x 600 1200 x 600.
Refer to QGTTM Part 5 Clause 5, T1-Q10 in Appendix C, Q-series sign notes, and examples below.
The RUMBLE STRIPS AHEAD sign has sign number TM1-Q02 and size 600 x 600.
Refer to QGTTM Part 3 Clause 5.5.3 and Q-series sign notes.
The Speed Limit AHEAD sign has sign number GM9-79-Q01 and size 600 x 600.
See Clause 4.7.6(d) and Q-series sign notes.
The PROBABLE DELAY 15 MIN sign has sign number TM1-Q03 and size 600 x 600.
To be used to inform motorists of probable delay.
Where delays greater than 15 minutes may be experienced, refer to the requirements of QGTTM Part 3 Section 3.4.
Sign
Sign number
Size (mm)
Figure
Notes

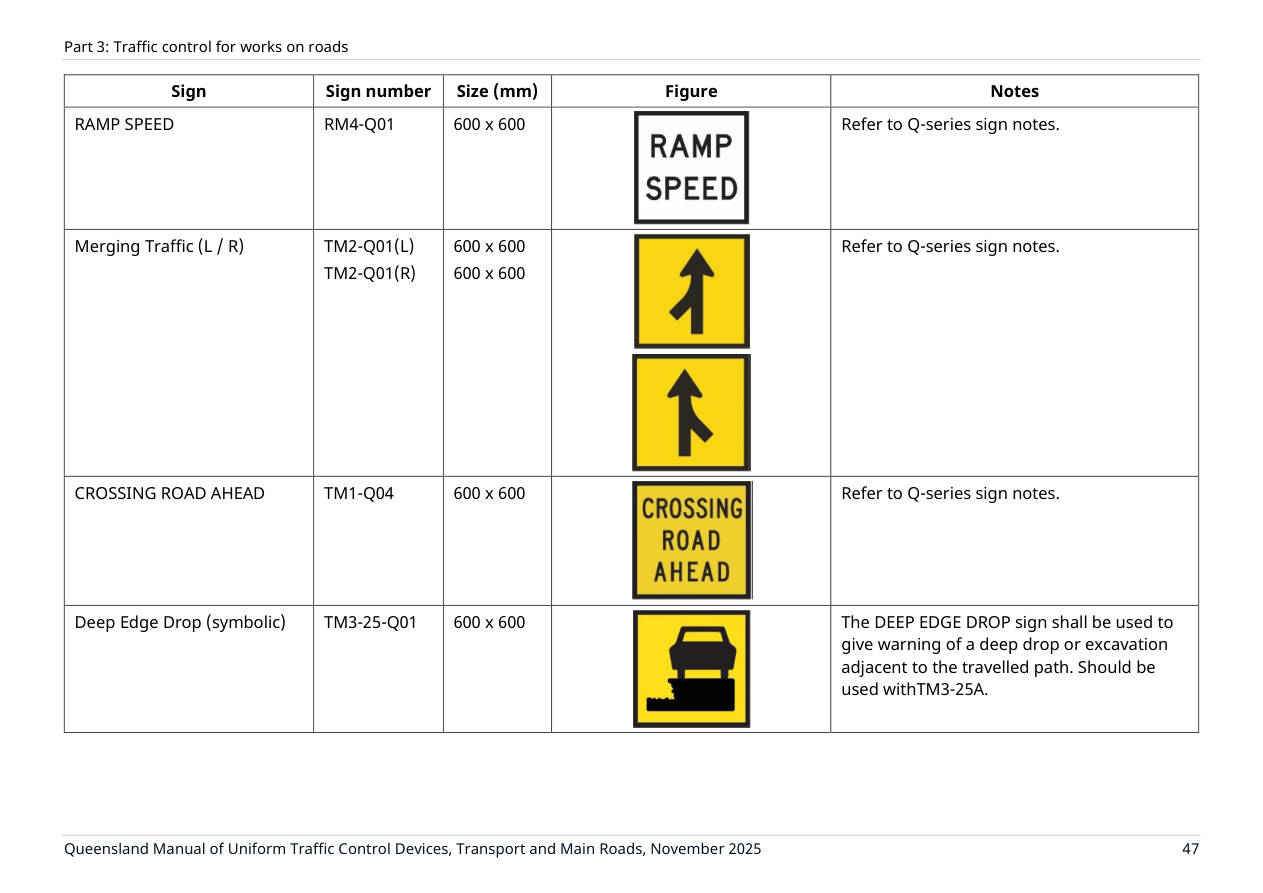

RAMP SPEED
RM4-Q01
600 x 600
Refer to Q-series sign notes.
Merging Traffic (L / R)
TM2-Q01(L) TM2-Q01(R)
600 x 600 600 x 600
Refer to Q-series sign notes.
CROSSING ROAD AHEAD
TM1-Q04
600 x 600
Refer to Q-series sign notes.
Deep Edge Drop (symbolic)
TM3-25-Q01
600 x 600
The DEEP EDGE DROP sign shall be used to give warning of a deep drop or excavation adjacent to the travelled path. Should be used withTM3-25A.
Table in words
The RAMP SPEED sign has sign number RM4-Q01 and size 600 x 600.
Refer to Q-series sign notes.
The Merging Traffic (L / R) sign has sign number TM2-Q01(L) TM2-Q01(R) and size 600 x 600 600 x 600.
Refer to Q-series sign notes.
The CROSSING ROAD AHEAD sign has sign number TM1-Q04 and size 600 x 600.
Refer to Q-series sign notes.
The Deep Edge Drop (symbolic) sign has sign number TM3-25-Q01 and size 600 x 600.
The DEEP EDGE DROP sign shall be used to give warning of a deep drop or excavation adjacent to the travelled path.
Should be used withTM3-25A.
Sign
Sign number
Size (mm)
Figure
Notes

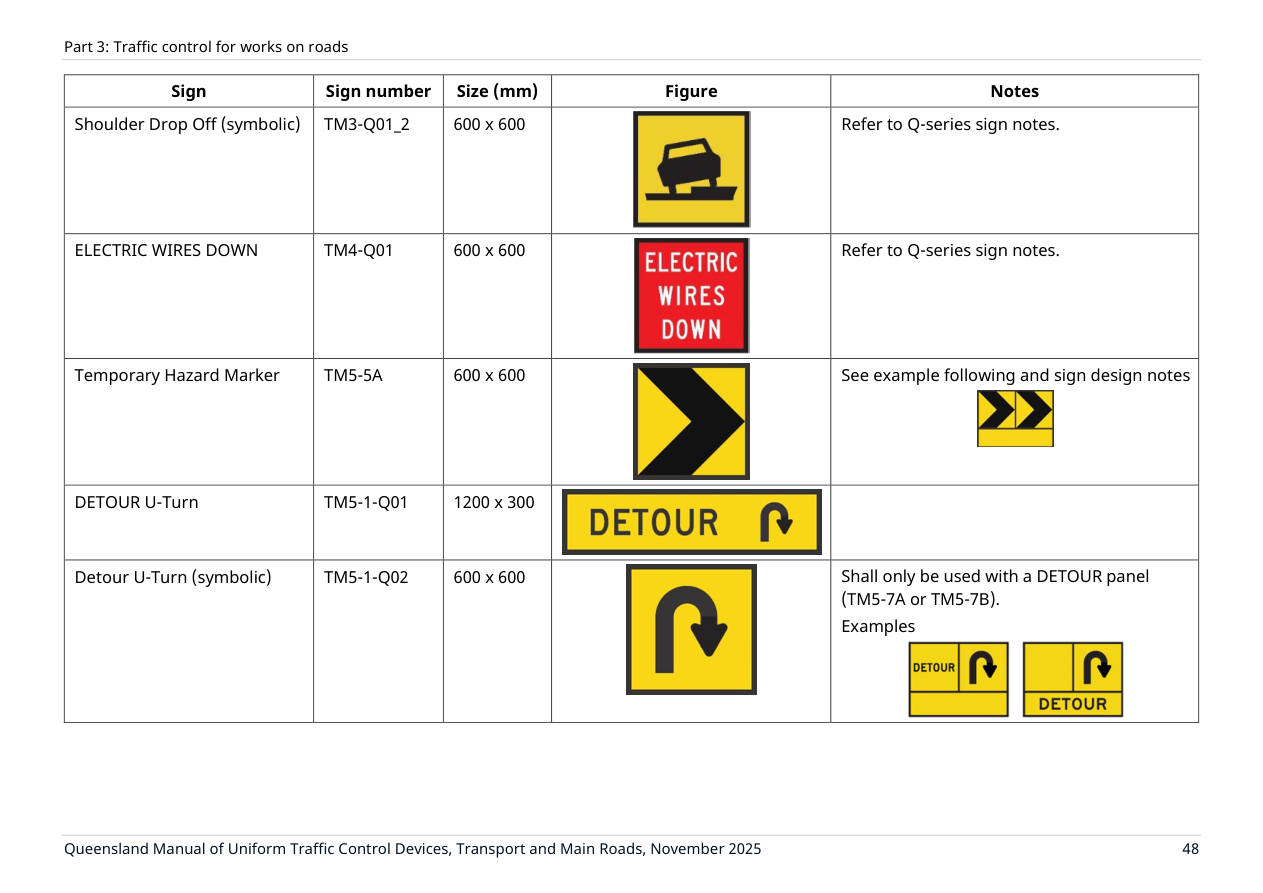

Shoulder Drop Off (symbolic)
TM3-Q01 2 _
600 x 600
Refer to Q-series sign notes.
ELECTRIC WIRES DOWN
TM4-Q01
600 x 600
Refer to Q-series sign notes.
Temporary Hazard Marker
TM5-5A
600 x 600
See example following and sign design notes
DETOUR U-Turn
TM5-1-Q01
1200 x 300
Detour U-Turn (symbolic)
TM5-1-Q02
600 x 600
Shall only be used with a DETOUR panel (TM5-7A or TM5-7B). Examples

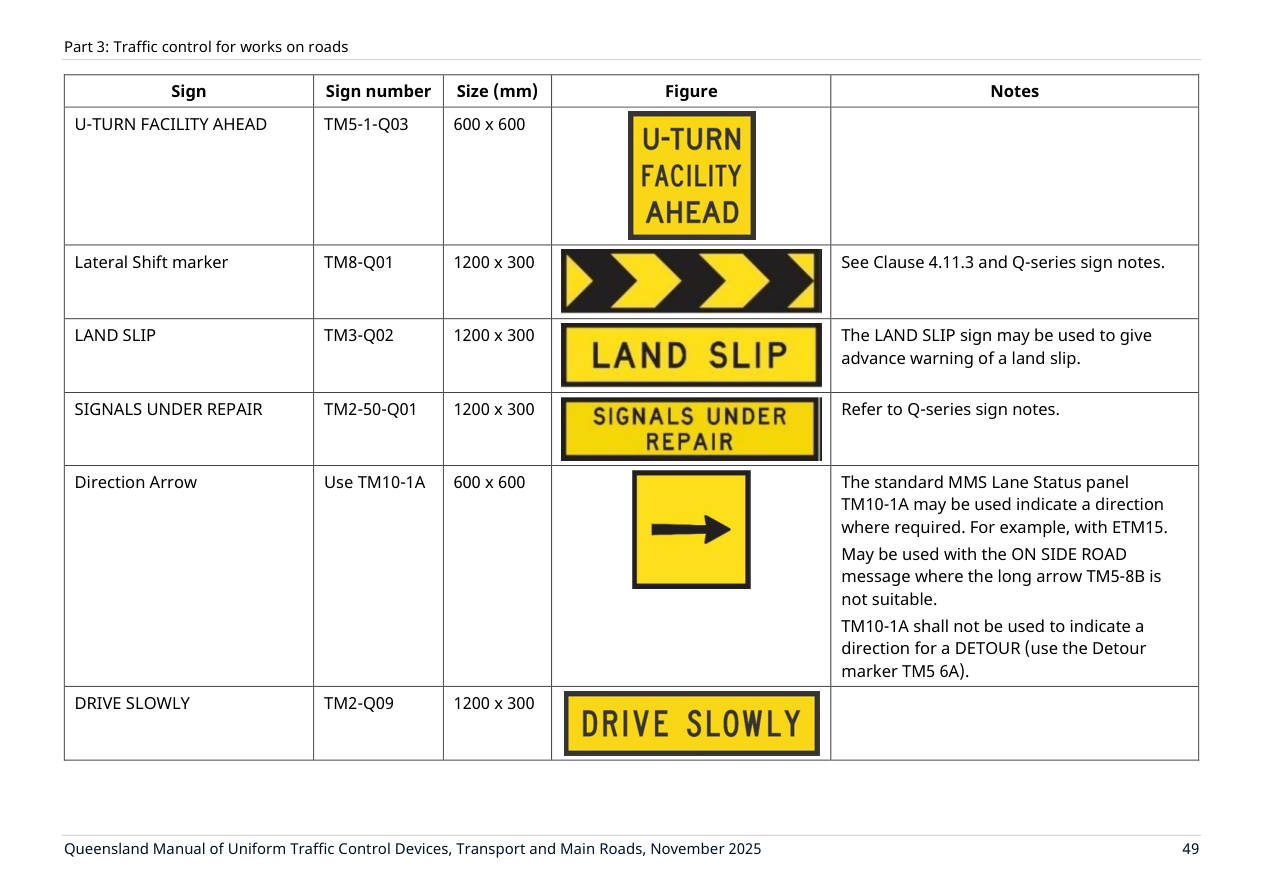

U-TURN FACILITY AHEAD
TM5-1-Q03
600 x 600
Lateral Shift marker
TM8-Q01
1200 x 300
See Clause 4.11.3 and Q-series sign notes.
LAND SLIP
TM3-Q02
1200 x 300
The LAND SLIP sign may be used to give advance warning of a land slip.
SIGNALS UNDER REPAIR
TM2-50-Q01
1200 x 300
Refer to Q-series sign notes.
Direction Arrow
Use TM10-1A
600 x 600
The standard MMS Lane Status panel TM10-1A may be used indicate a direction where required. For example, with ETM15. May be used with the ON SIDE ROAD message where the long arrow TM5-8B is not suitable. TM10-1A shall not be used to indicate a direction for a DETOUR (use the Detour marker TM5 6A).
DRIVE SLOWLY
TM2-Q09
1200 x 300
Table in words
The Shoulder Drop Off (symbolic) sign has sign number TM3-Q01 2 _ and size 600 x 600.
Refer to Q-series sign notes.
The ELECTRIC WIRES DOWN sign has sign number TM4-Q01 and size 600 x 600.
Refer to Q-series sign notes.
The Temporary Hazard Marker sign has sign number TM5-5A and size 600 x 600.
See example following and sign design notes
The DETOUR U-Turn sign has sign number TM5-1-Q01 and size 1200 x 300.
The Detour U-Turn (symbolic) sign has sign number TM5-1-Q02 and size 600 x 600.
Shall only be used with a DETOUR panel (TM5-7A or TM5-7B).
Examples
The U-TURN FACILITY AHEAD sign, sign number TM5-1-Q03, has size 600 x 600 mm.
The Lateral Shift marker sign, sign number TM8-Q01, has size 1200 x 300 mm; see Clause 4.11.3 and Q-series sign notes.
The LAND SLIP sign, sign number TM3-Q02, has size 1200 x 300 mm; the LAND SLIP sign may be used to give advance warning of a land slip.
The SIGNALS UNDER REPAIR sign, sign number TM2-50-Q01, has size 1200 x 300 mm; refer to Q-series sign notes.
The Direction Arrow sign uses TM10-1A and has size 600 x 600 mm; the standard MMS Lane Status panel TM10-1A may be used indicate a direction where required.
The DRIVE SLOWLY sign, sign number TM2-Q09, has size 1200 x 300 mm.
Sign
Sign number
Size (mm)
Figure
Notes

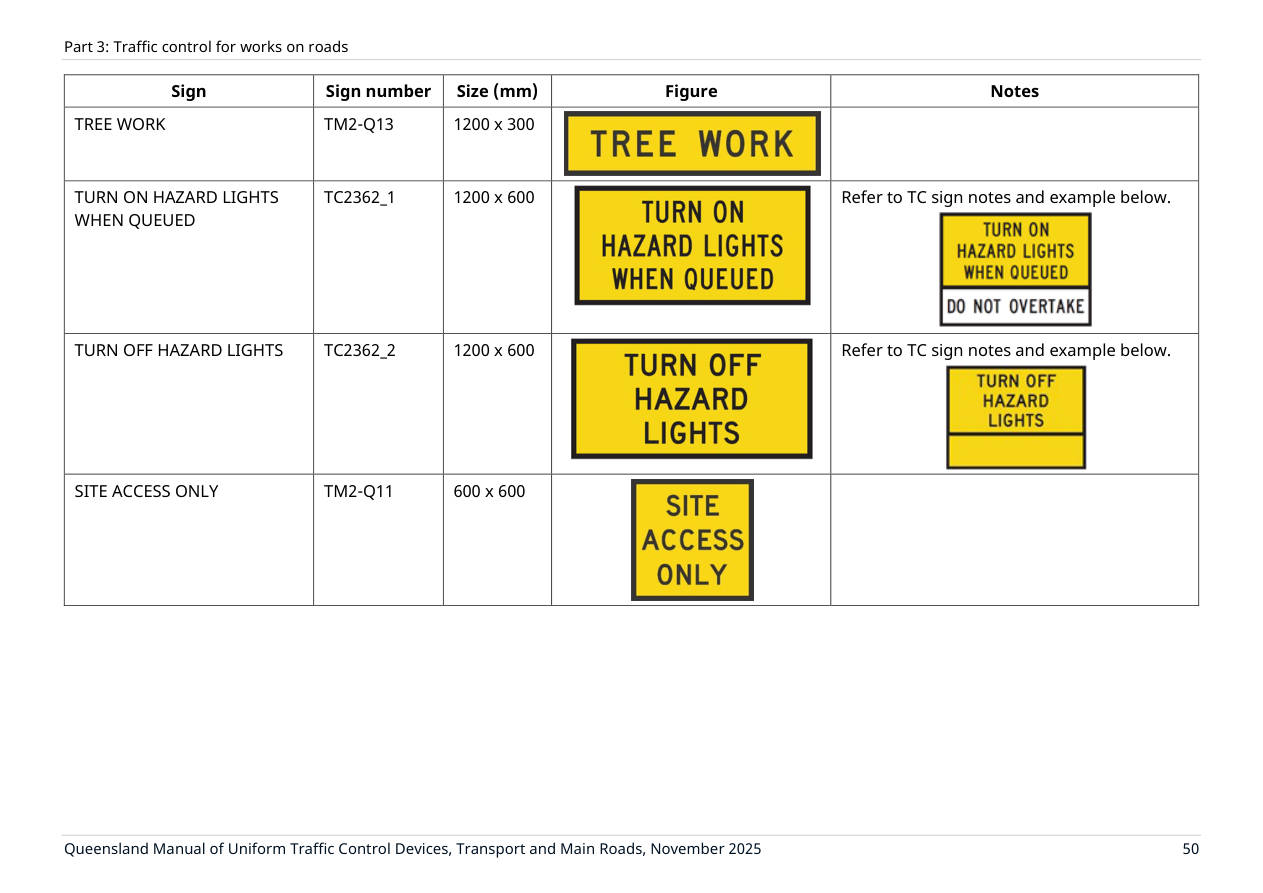

TREE WORK
TM2-Q13
1200 x 300
TURN ON HAZARD LIGHTS WHEN QUEUED
TC2362 1 _
1200 x 600
Refer to TC sign notes and example below.
TURN OFF HAZARD LIGHTS
TC2362 2 _
1200 x 600
Refer to TC sign notes and example below.
SITE ACCESS ONLY
TM2-Q11
600 x 600
Sign
Sign number
Size (mm)
Figure
Notes

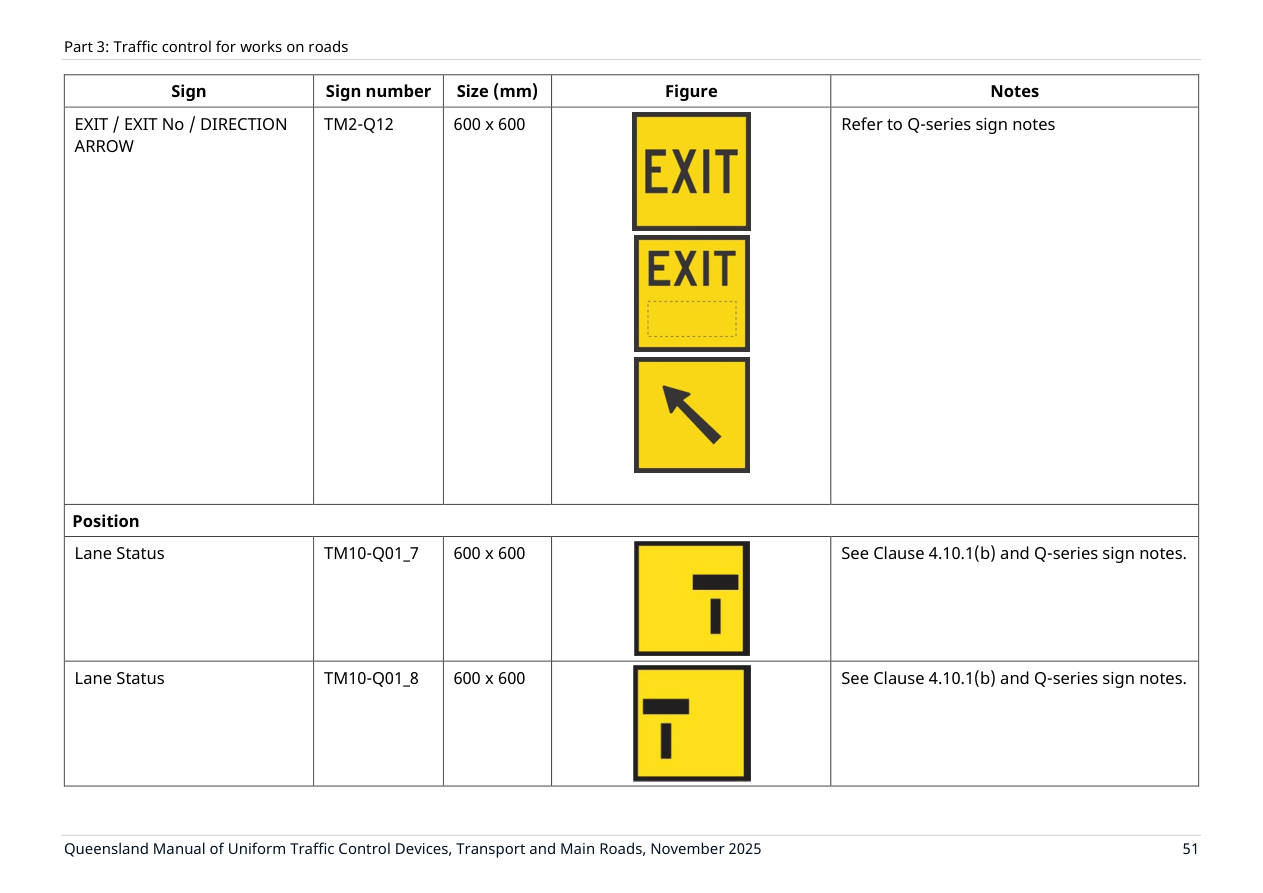

EXIT / EXIT No / DIRECTION ARROW
TM2-Q12
600 x 600
Refer to Q-series sign notes
Position
Lane Status
TM10-Q01 7 _
600 x 600
See Clause 4.10.1(b) and Q-series sign notes.
Lane Status
TM10-Q01 8 _
600 x 600
See Clause 4.10.1(b) and Q-series sign notes.
Sign
Sign number
Size (mm)
Figure
Notes

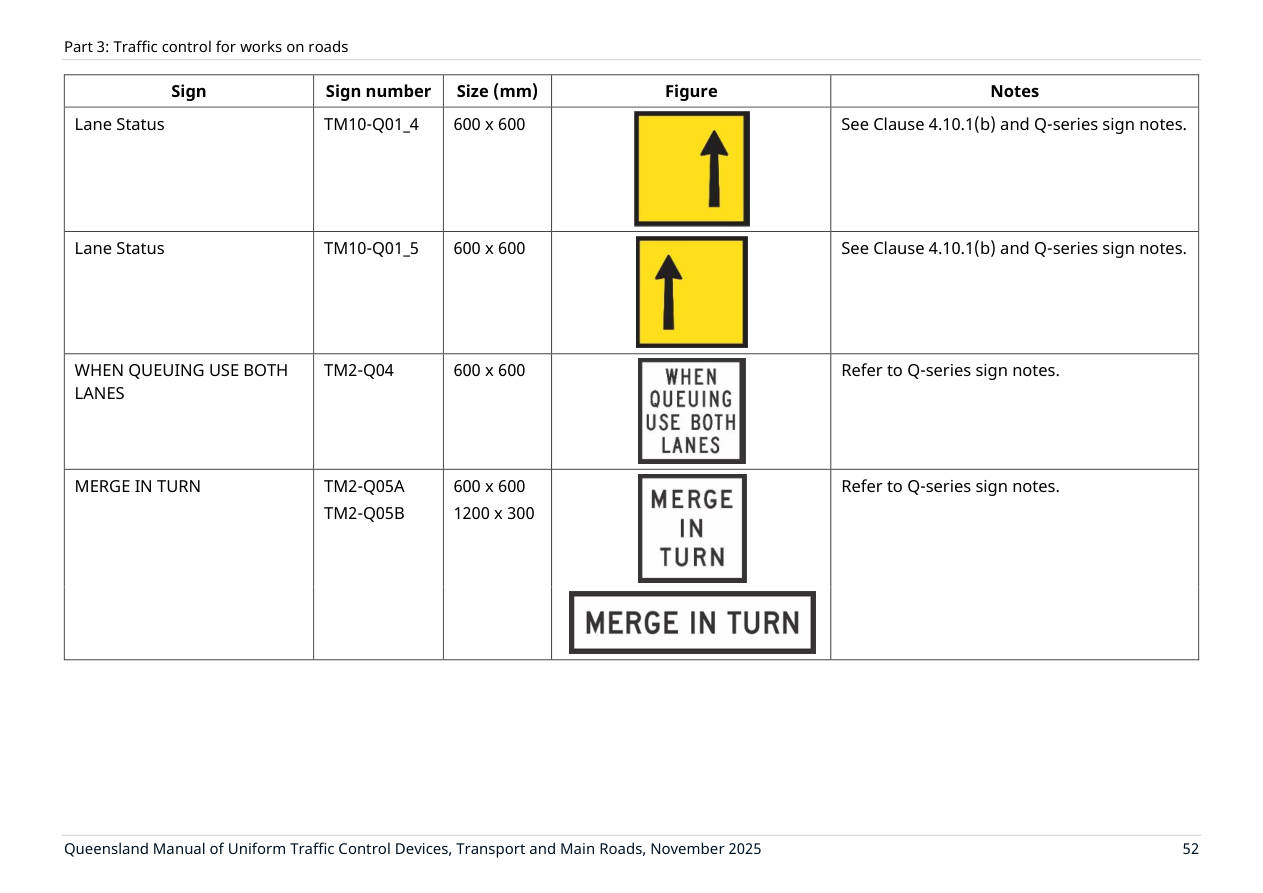

Lane Status
TM10-Q01 4 _
600 x 600
See Clause 4.10.1(b) and Q-series sign notes.
Lane Status
TM10-Q01 5 _
600 x 600
See Clause 4.10.1(b) and Q-series sign notes.
WHEN QUEUING USE BOTH LANES
TM2-Q04
600 x 600
Refer to Q-series sign notes.
MERGE IN TURN
TM2-Q05A TM2-Q05B
600 x 600 1200 x 300
Refer to Q-series sign notes.

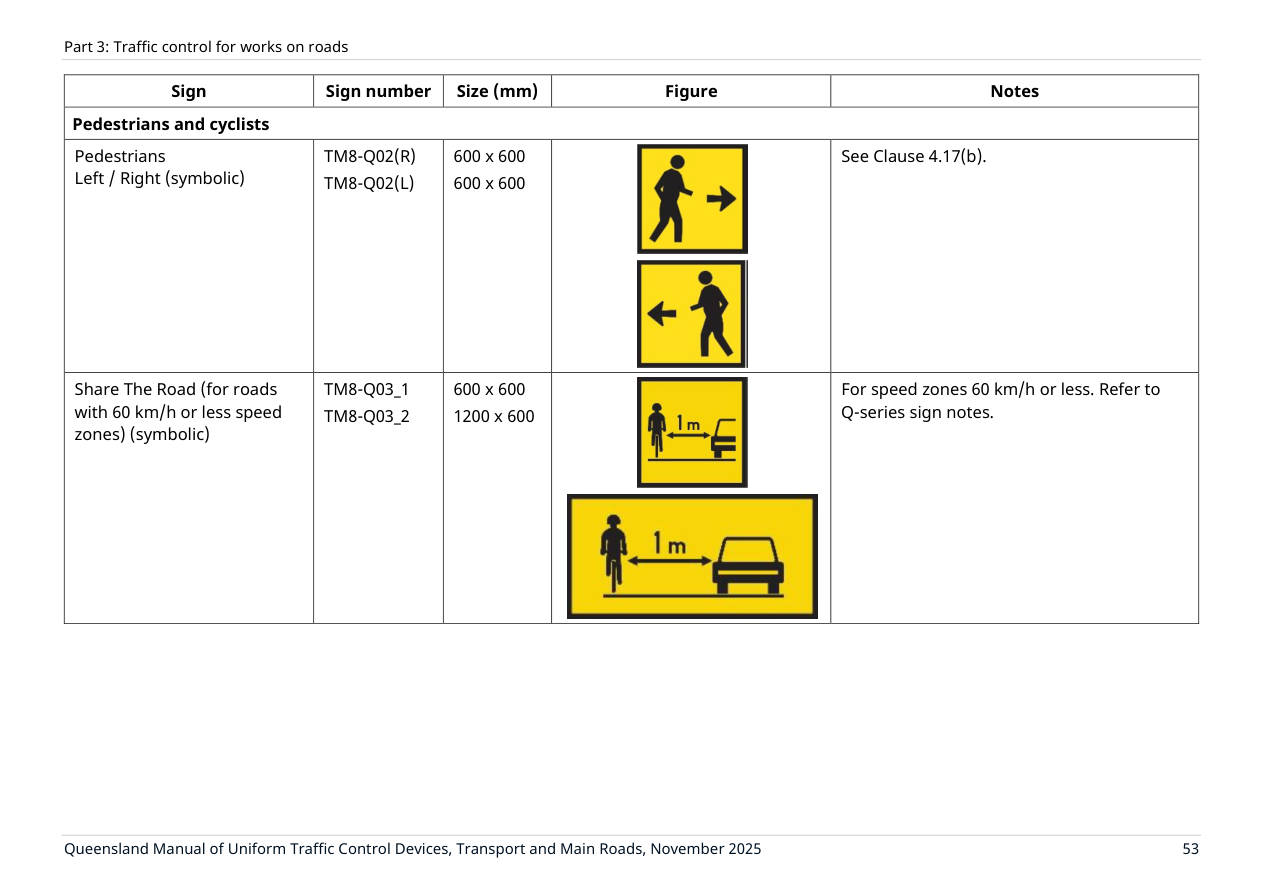

Pedestrians and cyclists
Pedestrians Left / Right (symbolic)
TM8-Q02(R) TM8-Q02(L)
600 x 600 600 x 600
See Clause 4.17(b).
Share The Road (for roads with 60 km/h or less speed zones) (symbolic)
TM8-Q03 1 _ TM8-Q03 2 _
600 x 600 1200 x 600
For speed zones 60 km/h or less. Refer to Q-series sign notes.
Table in words
The Lane Status sign, sign number TM10-Q01 4 _, has size 600 x 600 mm; see Clause 4.10.1(b) and Q-series sign notes.
The Lane Status sign, sign number TM10-Q01 5 _, has size 600 x 600 mm; see Clause 4.10.1(b) and Q-series sign notes.
The WHEN QUEUING USE BOTH LANES sign, sign number TM2-Q04, has size 600 x 600 mm; refer to Q-series sign notes.
The MERGE IN TURN sign, sign numbers TM2-Q05A and TM2-Q05B, has sizes 600 x 600 mm and 1200 x 300 mm; refer to Q-series sign notes.
The Pedestrians Left / Right (symbolic) sign has sign numbers TM8-Q02(R) and TM8-Q02(L), sizes 600 x 600 and 600 x 600, and notes: See Clause 4.17(b).
The Share The Road (for roads with 60 km/h or less speed zones) (symbolic) sign has sign numbers TM8-Q03 1 _ and TM8-Q03 2 _, sizes 600 x 600 and 1200 x 600, and notes: For speed zones 60 km/h or less. Refer to Q-series sign notes.
Sign
Sign number
Size (mm)
Figure
Notes

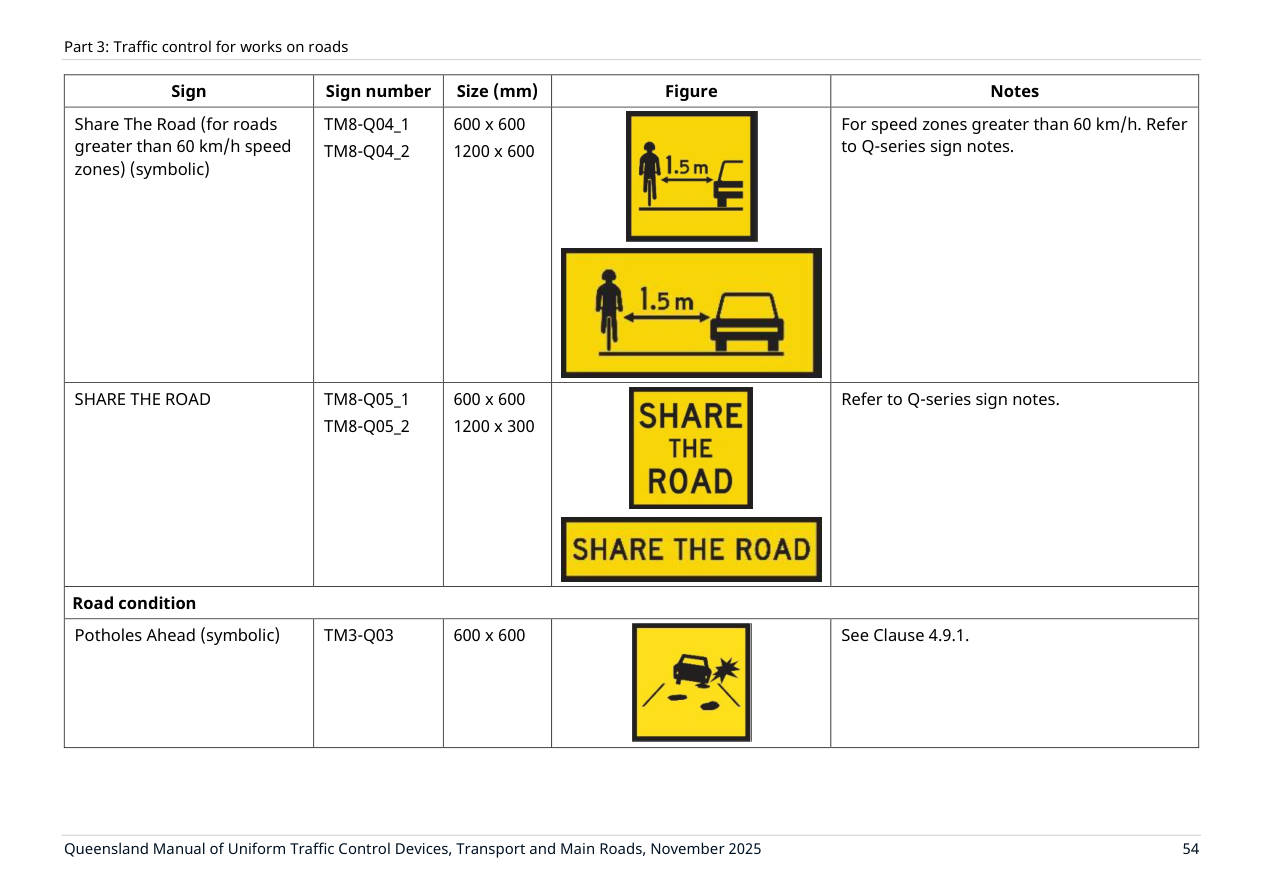

Share The Road (for roads greater than 60 km/h speed zones) (symbolic)
TM8-Q04 1 _ TM8-Q04 2 _
600 x 600 1200 x 600
For speed zones greater than 60 km/h. Refer to Q-series sign notes.
SHARE THE ROAD
TM8-Q05 1 _ TM8-Q05 2 _
600 x 600 1200 x 300
Refer to Q-series sign notes.
Road condition
Potholes Ahead (symbolic)
TM3-Q03
600 x 600
See Clause 4.9.1.
Table in words
The Share The Road (for roads greater than 60 km/h speed zones) (symbolic) sign has sign numbers TM8-Q04 1 _ and TM8-Q04 2 _, sizes 600 x 600 and 1200 x 600, and notes: For speed zones greater than 60 km/h. Refer to Q-series sign notes.
The SHARE THE ROAD sign has sign numbers TM8-Q05 1 _ and TM8-Q05 2 _, sizes 600 x 600 and 1200 x 300, and notes: Refer to Q-series sign notes.
The Potholes Ahead (symbolic) sign has sign number TM3-Q03, size 600 x 600, and notes: See Clause 4.9.1.
Sign
Sign number
Size (mm)
Figure
Notes

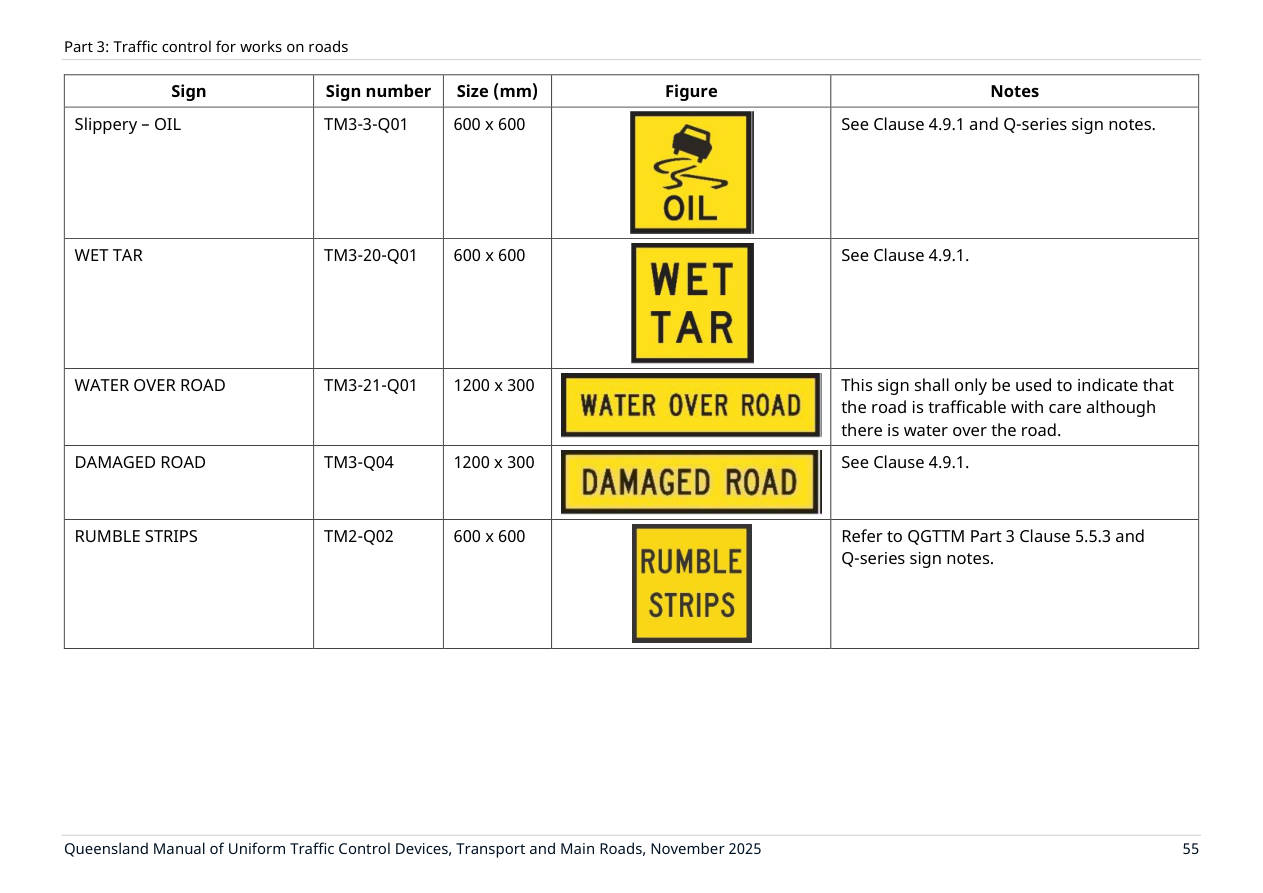

Slippery – OIL
TM3-3-Q01
600 x 600
See Clause 4.9.1 and Q-series sign notes.
WET TAR
TM3-20-Q01
600 x 600
See Clause 4.9.1.
WATER OVER ROAD
TM3-21-Q01
1200 x 300
This sign shall only be used to indicate that the road is trafficable with care although there is water over the road.
DAMAGED ROAD
TM3-Q04
1200 x 300
See Clause 4.9.1.
RUMBLE STRIPS
TM2-Q02
600 x 600
Refer to QGTTM Part 3 Clause 5.5.3 and Q-series sign notes.
Sign
Sign number
Size (mm)
Figure
Notes

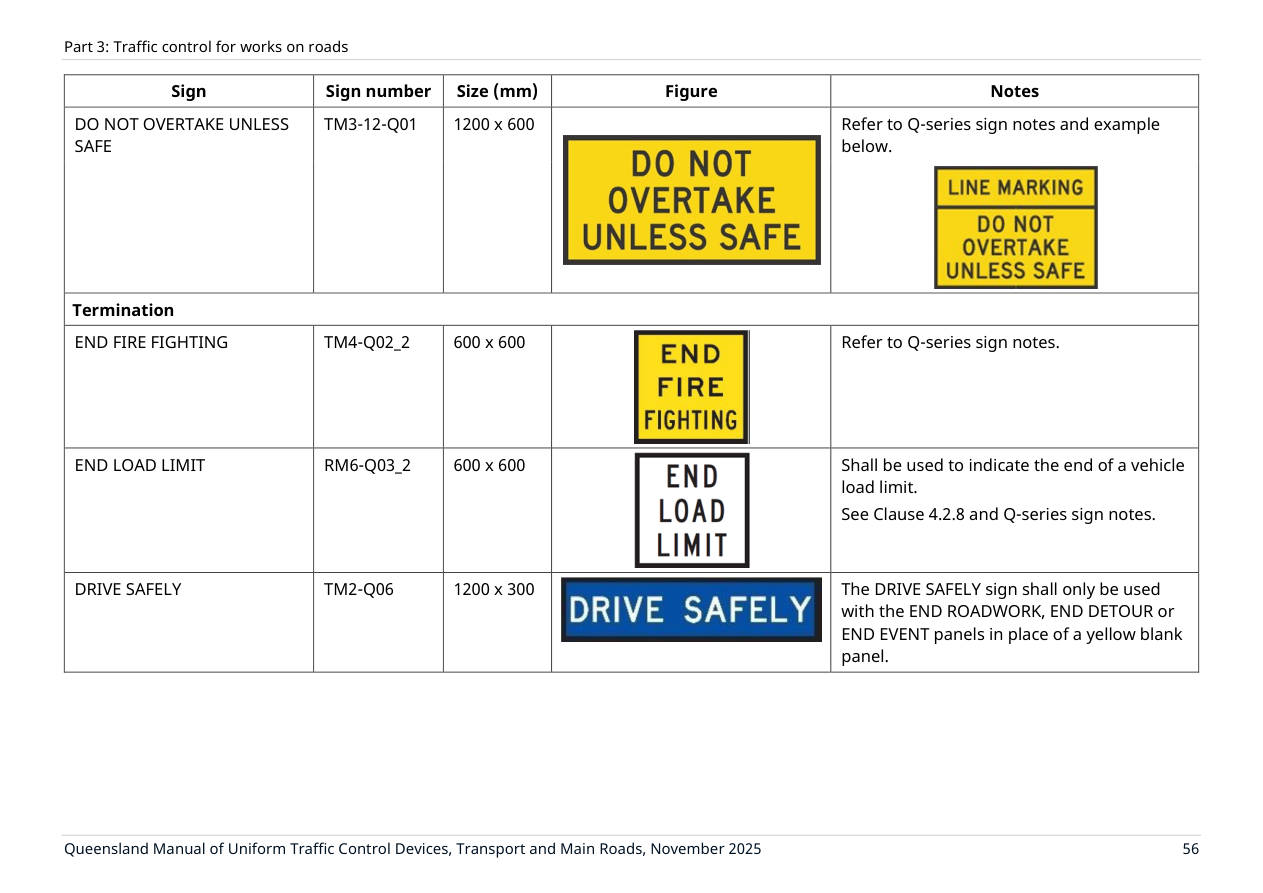

DO NOT OVERTAKE UNLESS SAFE
TM3-12-Q01
1200 x 600
Refer to Q-series sign notes and example below.
Termination
END FIRE FIGHTING
TM4-Q02 2 _
600 x 600
Refer to Q-series sign notes.
END LOAD LIMIT
RM6-Q03 2 _
600 x 600
Shall be used to indicate the end of a vehicle load limit. See Clause 4.2.8 and Q-series sign notes.
DRIVE SAFELY
TM2-Q06
1200 x 300
The DRIVE SAFELY sign shall only be used with the END ROADWORK, END DETOUR or END EVENT panels in place of a yellow blank panel.
Incident, Fire and Emergency

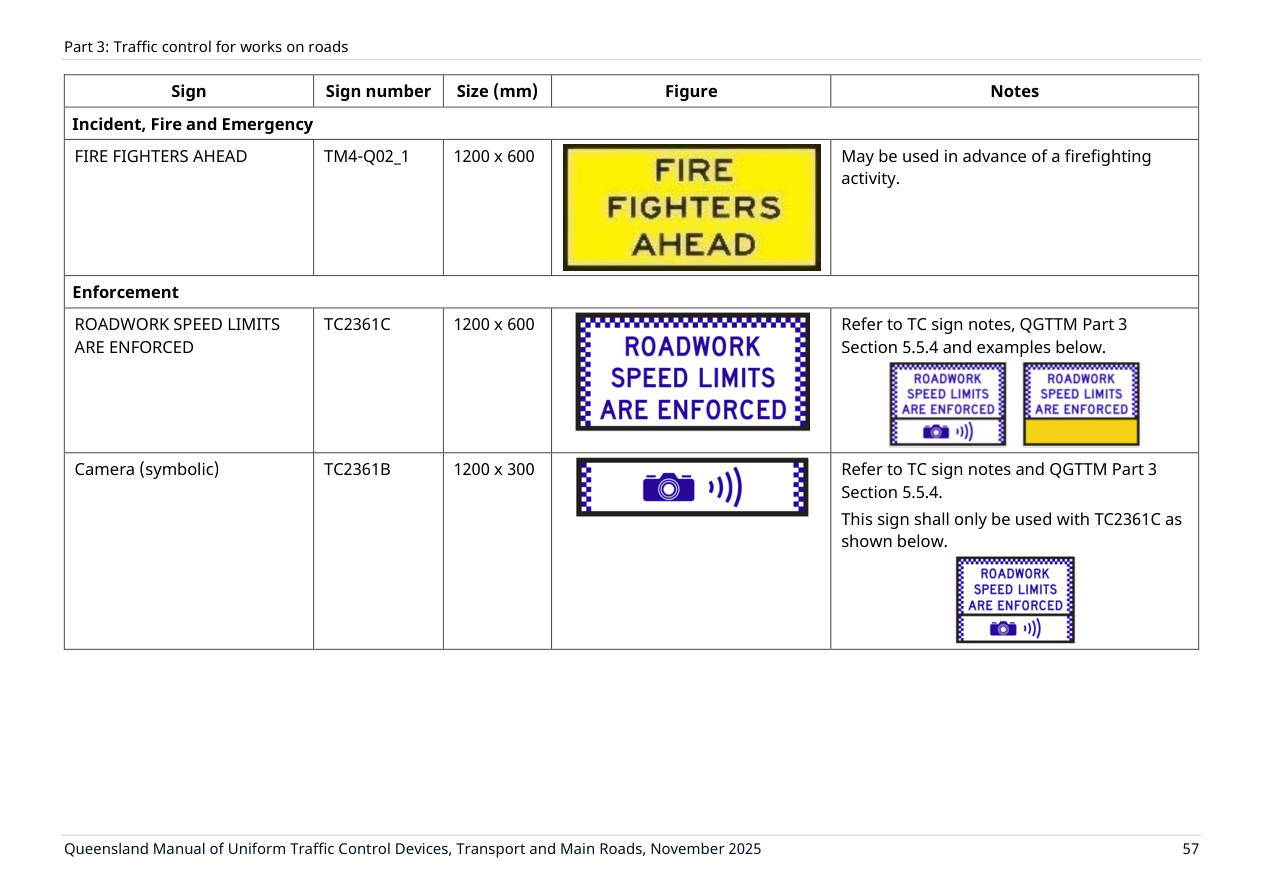

FIRE FIGHTERS AHEAD
TM4-Q02 1 _
1200 x 600
May be used in advance of a firefighting activity.
Enforcement
ROADWORK SPEED LIMITS ARE ENFORCED
TC2361C
1200 x 600
Refer to TC sign notes, QGTTM Part 3 Section 5.5.4 and examples below.
Camera (symbolic)
TC2361B
1200 x 300
Refer to TC sign notes and QGTTM Part 3 Section 5.5.4. This sign shall only be used with TC2361C as shown below.
Table in words
The DO NOT OVERTAKE UNLESS SAFE sign has sign number TM3-12-Q01, size 1200 x 600, and notes: Refer to Q-series sign notes and example below.
The END FIRE FIGHTING sign has sign number TM4-Q02 2 _, size 600 x 600, and notes: Refer to Q-series sign notes.
The END LOAD LIMIT sign has sign number RM6-Q03 2 _, size 600 x 600, and notes: Shall be used to indicate the end of a vehicle load limit. See Clause 4.2.8 and Q-series sign notes.
The DRIVE SAFELY sign has sign number TM2-Q06, size 1200 x 300, and notes: The DRIVE SAFELY sign shall only be used with the END ROADWORK, END DETOUR or END EVENT panels in place of a yellow blank panel.
The sign FIRE FIGHTERS AHEAD has sign number TM4-Q02 1 _ and size 1200 x 600 mm; it may be used in advance of a firefighting activity.
The sign ROADWORK SPEED LIMITS ARE ENFORCED has sign number TC2361C and size 1200 x 600 mm; refer to TC sign notes, QGTTM Part 3 Section 5.5.4 and examples below.
The sign Camera (symbolic) has sign number TC2361B and size 1200 x 300 mm; refer to TC sign notes and QGTTM Part 3 Section 5.5.4, and this sign shall only be used with TC2361C as shown below.
Sign
Sign number
Size (mm)
Figure
Notes

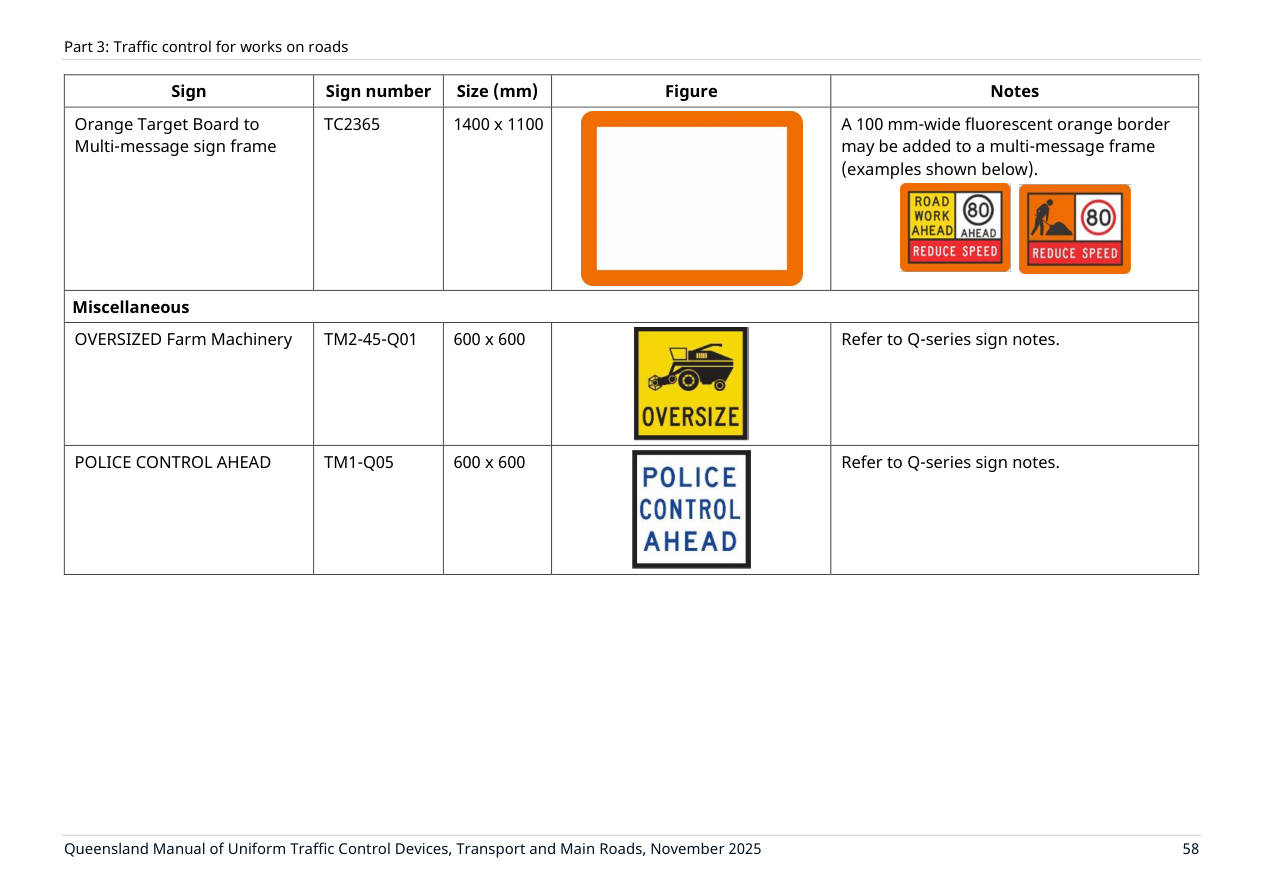

Orange Target Board to Multi-message sign frame
TC2365
1400 x 1100
A 100 mm-wide fluorescent orange border may be added to a multi-message frame (examples shown below).
Miscellaneous
OVERSIZED Farm Machinery
TM2-45-Q01
600 x 600
Refer to Q-series sign notes.
POLICE CONTROL AHEAD
TM1-Q05
600 x 600
Refer to Q-series sign notes.
Table in words
The sign Orange Target Board to Multi-message sign frame has sign number TC2365 and size 1400 x 1100 mm; a 100 mm-wide fluorescent orange border may be added to a multi-message frame (examples shown below).
The sign OVERSIZED Farm Machinery has sign number TM2-45-Q01 and size 600 x 600 mm; refer to Q-series sign notes.
The sign POLICE CONTROL AHEAD has sign number TM1-Q05 and size 600 x 600 mm; refer to Q-series sign notes.
Sign
Sign number
Size (mm)
Figure
Notes

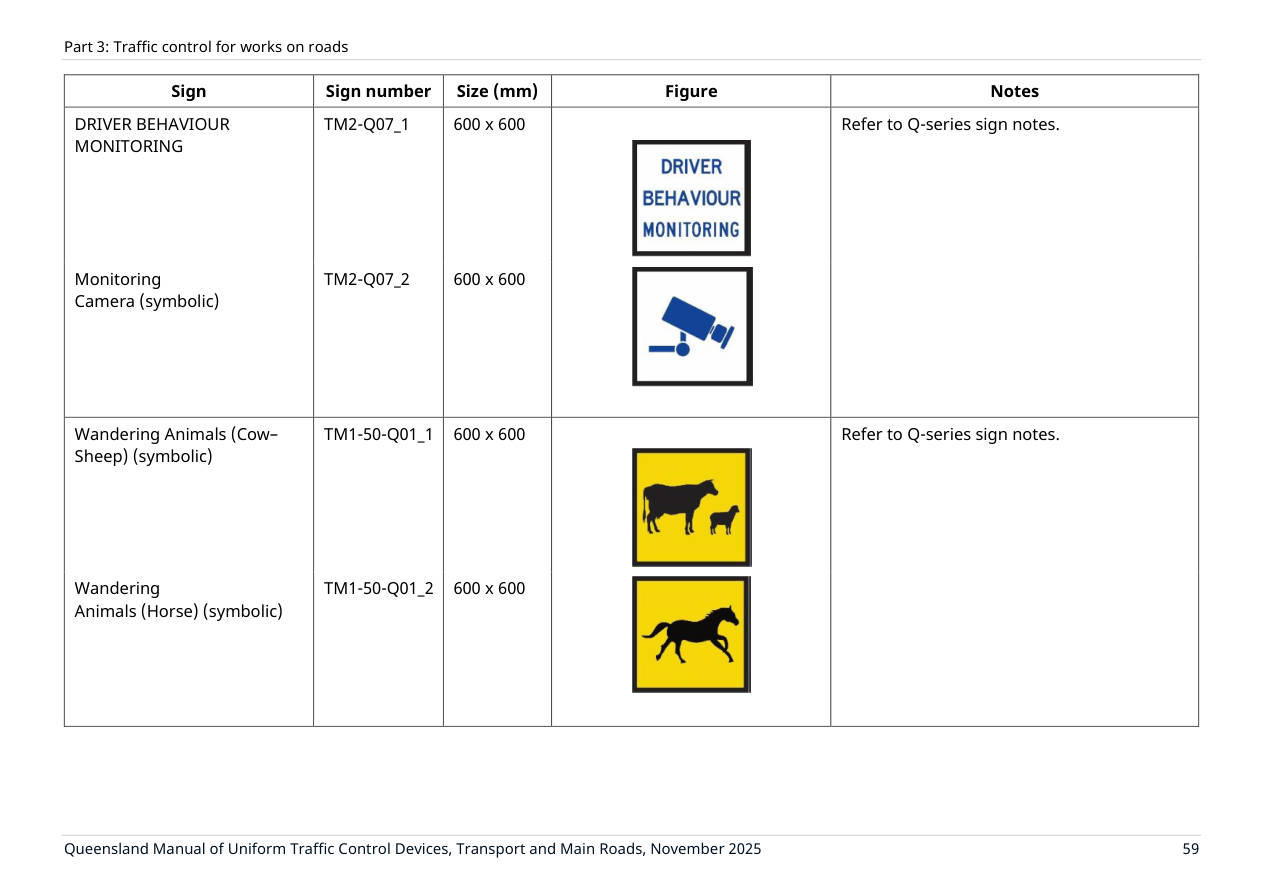

DRIVER BEHAVIOUR MONITORING Monitoring Camera (symbolic)
Refer to Event traffic management design guidelines Clause 3.2.2.
EVENT IN PROGRESS
ETM02 2 _
1200 x 600
Refer to Event traffic management design guidelines Clause 3.2.3.
END EVENT
ETM03 2 _
1200 x 600
Refer to Event traffic management design guidelines Clause 3.2.4.

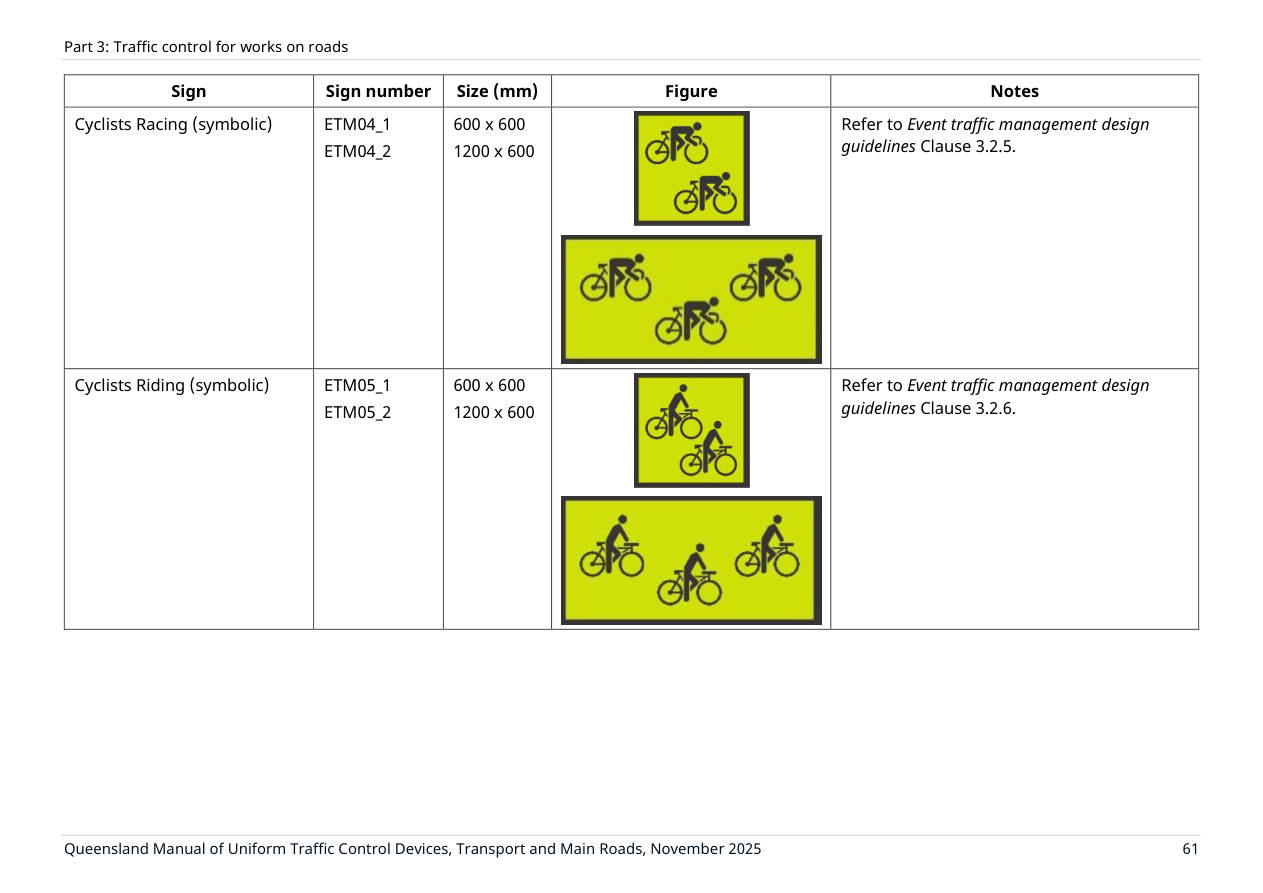

Cyclists Racing (symbolic)
ETM04 1 _ ETM04 2 _
600 x 600 1200 x 600
Refer to Event traffic management design guidelines Clause 3.2.5.
Cyclists Riding (symbolic)
ETM05 1 _ ETM05 2 _
600 x 600 1200 x 600
Refer to Event traffic management design guidelines Clause 3.2.6.
Table in words

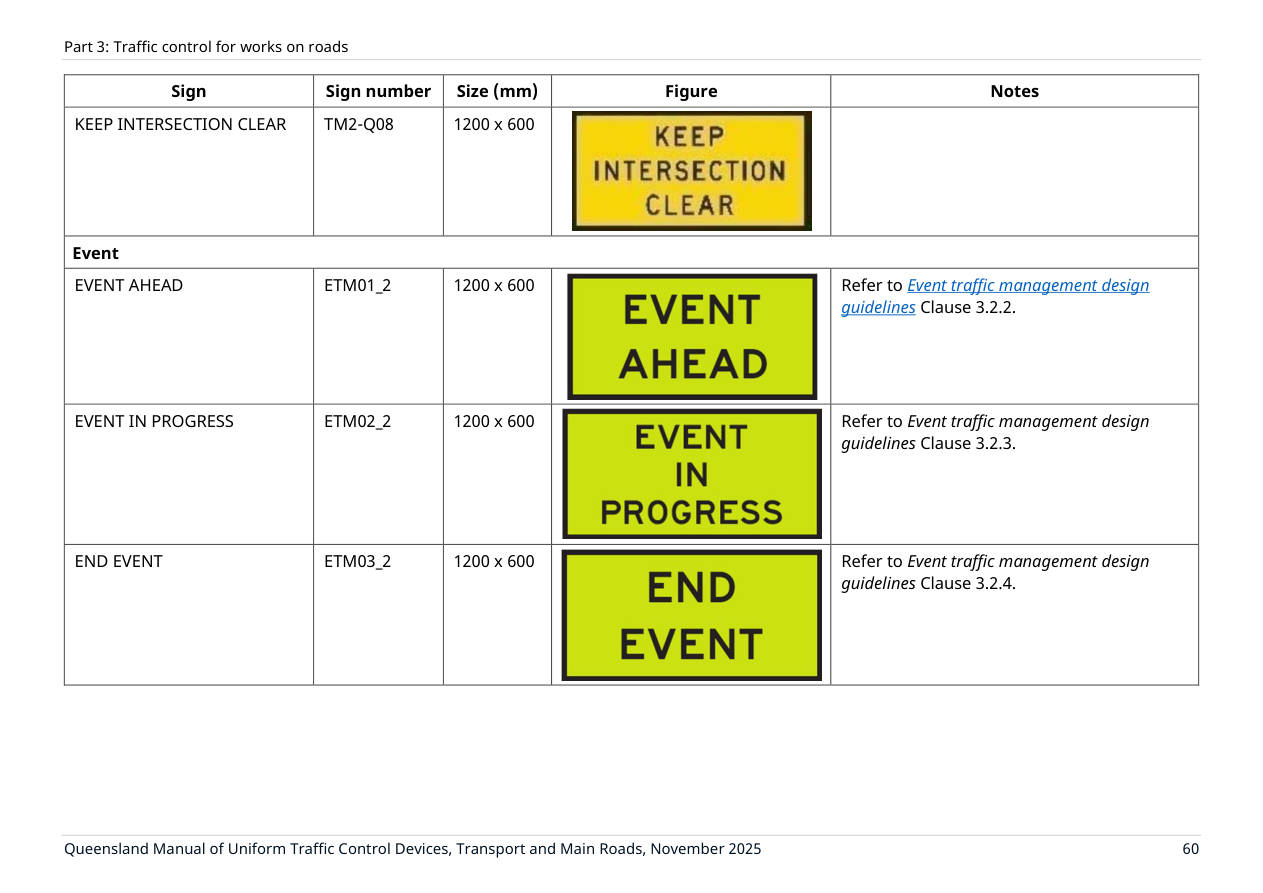

The sign KEEP INTERSECTION CLEAR has sign number TM2-Q08 and size 1200 x 600 mm.
The sign EVENT AHEAD has sign number ETM01 2 _ and size 1200 x 600 mm; refer to Event traffic management design guidelines Clause 3.2.2.
The sign EVENT IN PROGRESS has sign number ETM02 2 _ and size 1200 x 600 mm; refer to Event traffic management design guidelines Clause 3.2.3.
The sign END EVENT has sign number ETM03 2 _ and size 1200 x 600 mm; refer to Event traffic management design guidelines Clause 3.2.4.
The Cyclists Racing (symbolic) sign has sign number ETM04 1 _ ETM04 2 _ and size 600 x 600 1200 x 600, and the notes state: Refer to Event traffic management design guidelines Clause 3.2.5.
The Cyclists Riding (symbolic) sign has sign number ETM05 1 _ ETM05 2 _ and size 600 x 600 1200 x 600, and the notes state: Refer to Event traffic management design guidelines Clause 3.2.6.
Sign
Sign number
Size (mm)
Figure
Notes

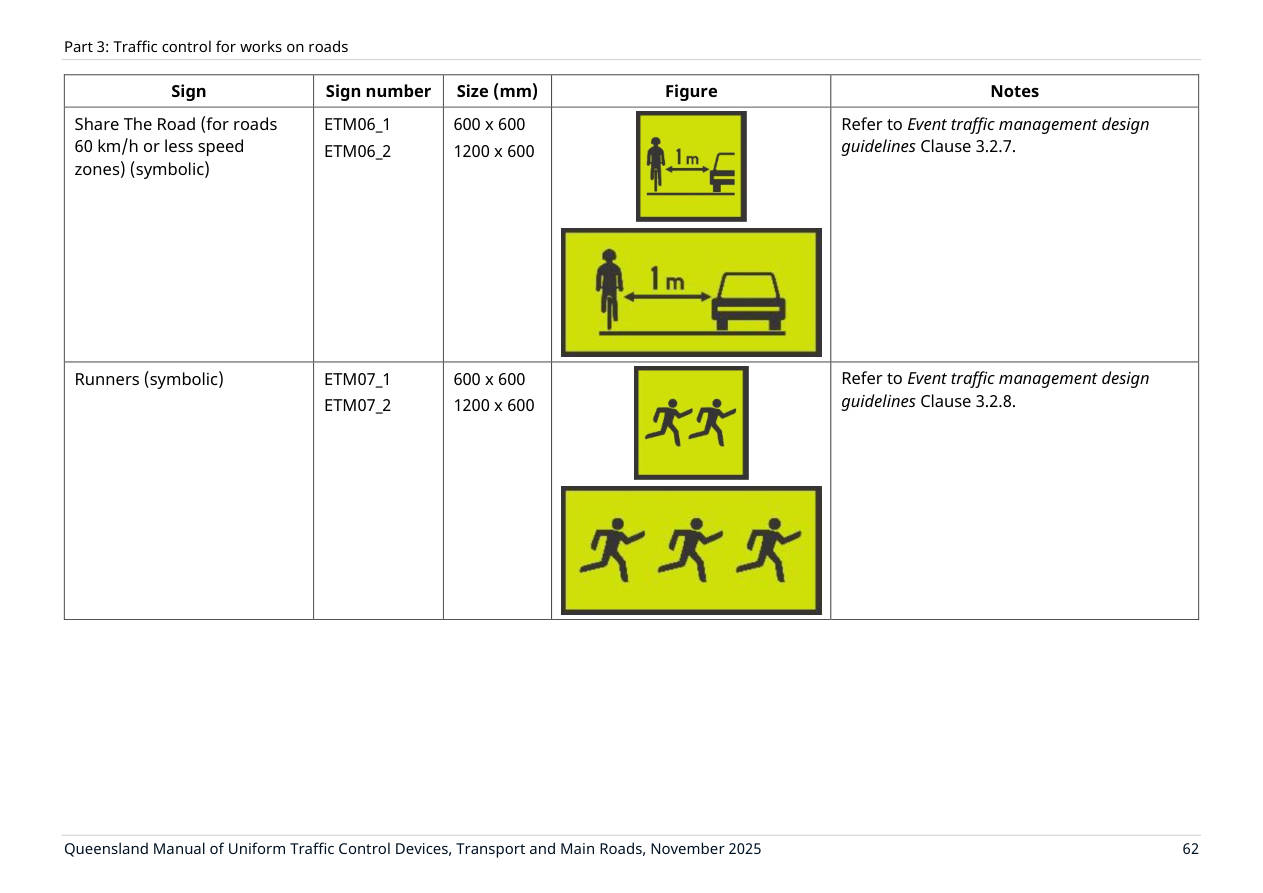

Share The Road (for roads 60 km/h or less speed zones) (symbolic)
ETM06 1 _ ETM06 2 _
600 x 600 1200 x 600
Refer to Event traffic management design guidelines Clause 3.2.7.
Runners (symbolic)
ETM07 1 _ ETM07 2 _
600 x 600 1200 x 600
Refer to Event traffic management design guidelines Clause 3.2.8.
Sign
Sign number
Size (mm)
Figure
Notes

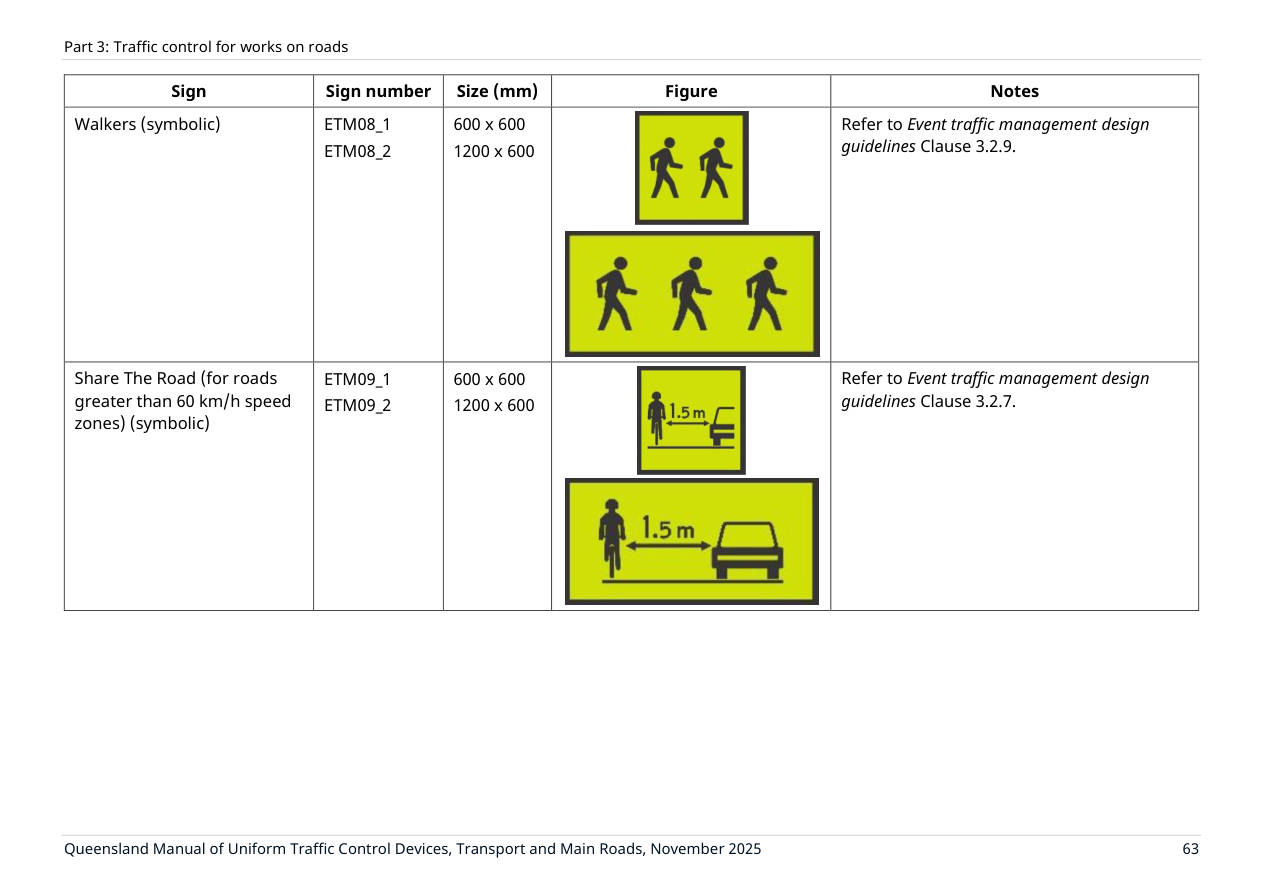

Walkers (symbolic)
ETM08 1 _ ETM08 2 _
600 x 600 1200 x 600
Refer to Event traffic management design guidelines Clause 3.2.9.
Share The Road (for roads greater than 60 km/h speed zones) (symbolic)
ETM09 1 _ ETM09 2 _
600 x 600 1200 x 600
Refer to Event traffic management design guidelines Clause 3.2.7.
Sign
Sign number
Size (mm)
Figure
Notes

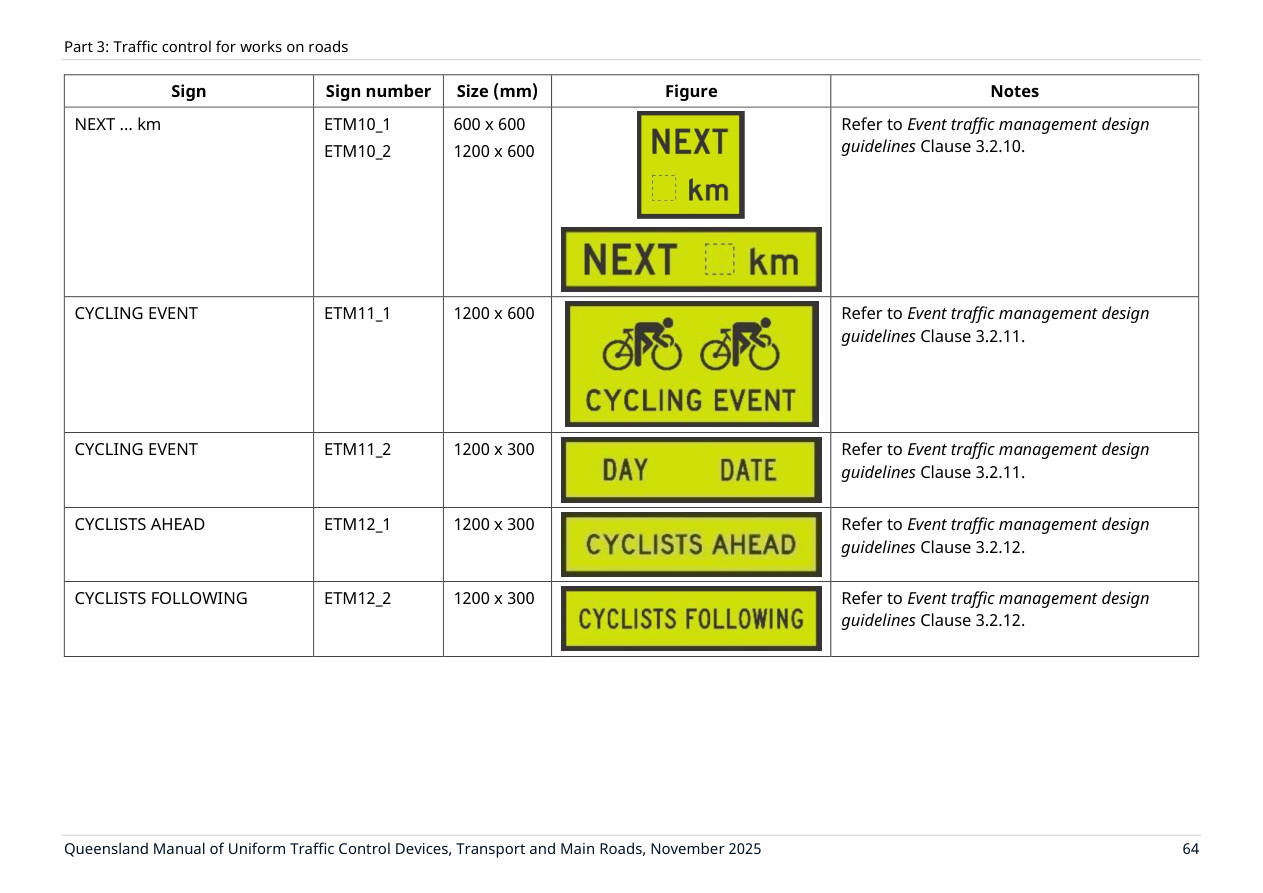

NEXT … km
ETM10 1 _ ETM10 2 _
600 x 600 1200 x 600
Refer to Event traffic management design guidelines Clause 3.2.10.
CYCLING EVENT
ETM11 1 _
1200 x 600
Refer to Event traffic management design guidelines Clause 3.2.11.
CYCLING EVENT
ETM11 2 _
1200 x 300
Refer to Event traffic management design guidelines Clause 3.2.11.
CYCLISTS AHEAD
ETM12 1 _
1200 x 300
Refer to Event traffic management design guidelines Clause 3.2.12.
CYCLISTS FOLLOWING
ETM12 2 _
1200 x 300
Refer to Event traffic management design guidelines Clause 3.2.12.
SHARE THE ROAD
ETM13 1 _ ETM13 2 _
600 x 600 1200 x 300
Refer to Event traffic management design guidelines Clause 3.2.7.
EVENT Parking
ETM15
600 x 600
The EVENT Parking panel may be used with the Direction Arrow (TM10-1A) or the long arrow (TM5-8B) to indicate a direction to the Event Parking. The direction arrow shall not point toward the Parking symbol. Example
