4Bicycle provisions on expressway type roads#
4.3Application of signs to freeway interchanges#
Difference
- Replace NOTE with

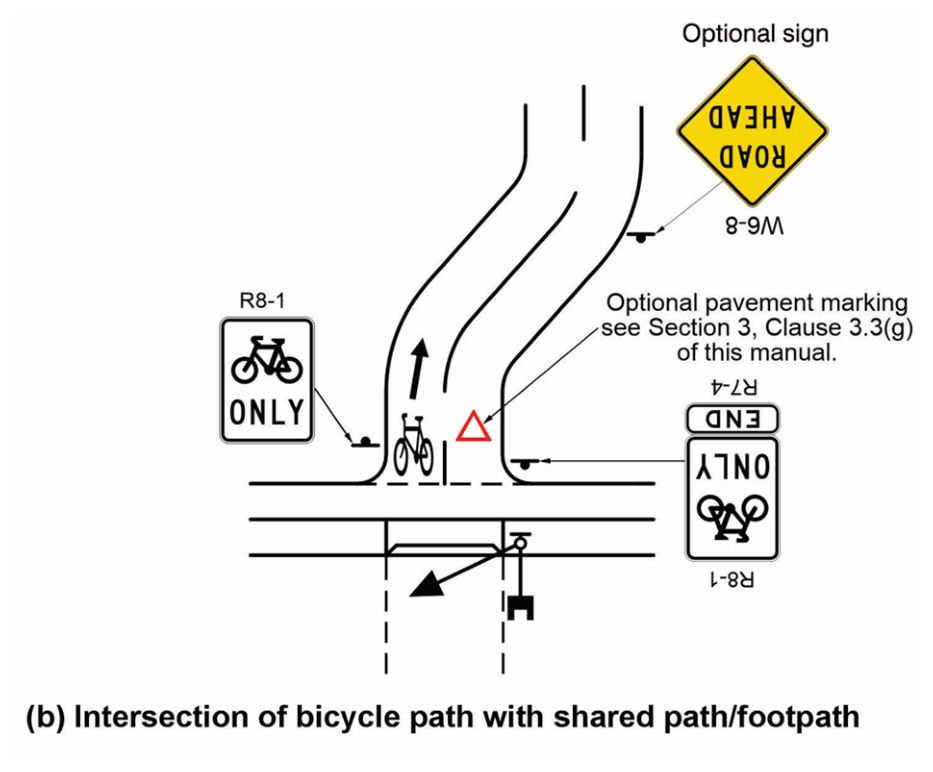

- Figure 4.3 NOTE: replace 'forced off' with 'directed off'.
4.4Pavement markings#
New
Where bicycles are known to use a rural freeway and appropriate interchange signing is provided for cyclists, bicycle pavement symbols or warning signage may be considered for use. Bicycle pavement symbols at up to 1 km spacing will generally be adequate.
Where provisions are made for cyclists to cross a freeway ramp (see Figure 4.1 in AS 1742.9), a bicycle pavement symbol may be placed on the shoulder in advance of the crossing location. If used, the bicycle symbol shall be yellow in colour. For size and shape, refer to Figure 2.2(1) Bicycle pavement symbol for road use in Section 2.3.2 of AS 1742.9.
