4.3-1S-lane#

The Transport and Main Roads regions and local governments may introduce S-lanes and associated signing along arterial roads to provide continuity of through traffic lanes at locations where separate right-turn lanes are required. The need for separate right-turn lanes is assessed by considering safety matters during off-peak periods and capacity requirements during peak periods. The supply, installation and maintenance of the S-lanes and associated signing is the responsibility of the Transport and Main Roads or local government as appropriate.

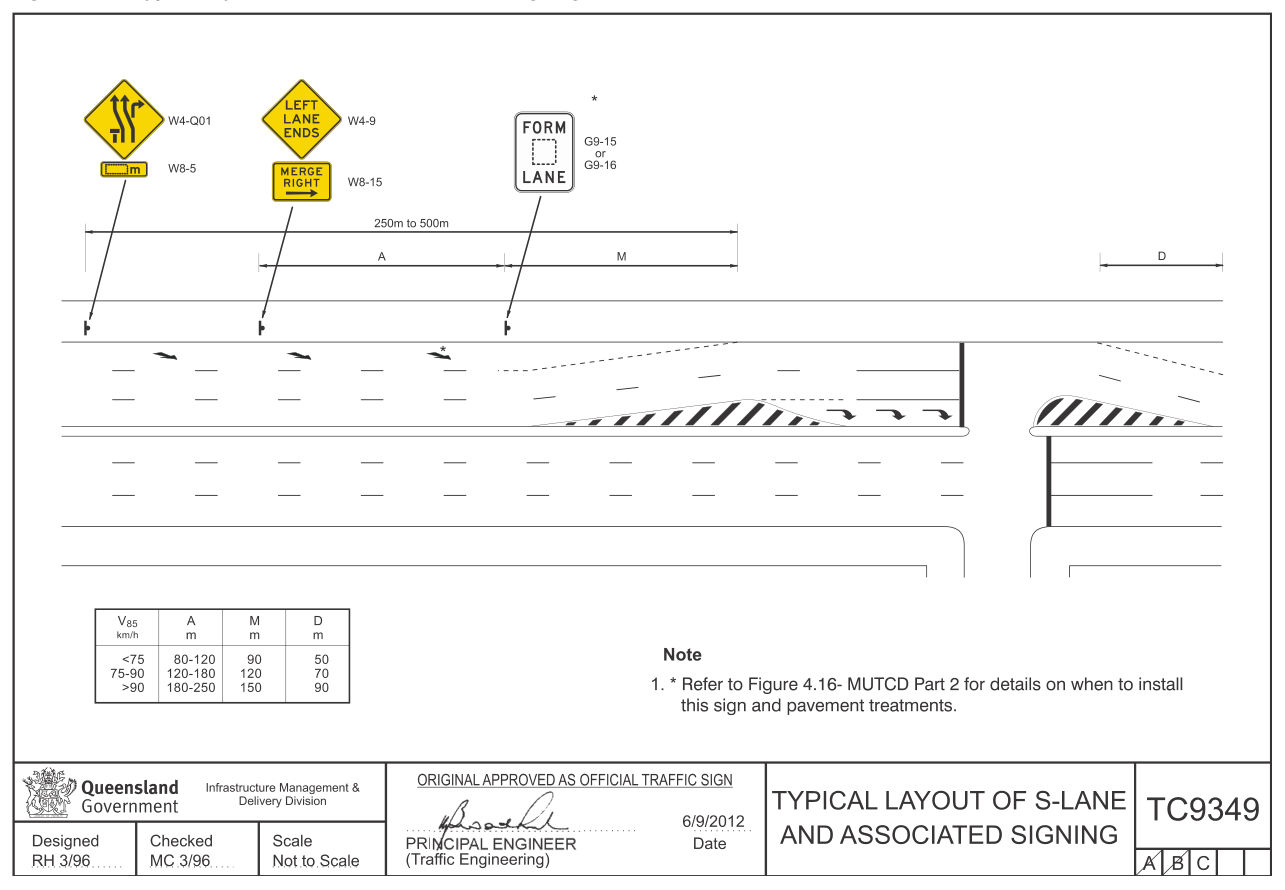

Figure 1-A – Typical layout of S-lane and associated signing
Figure 1-A – Typical layout of S-lane and associated signingp. 19

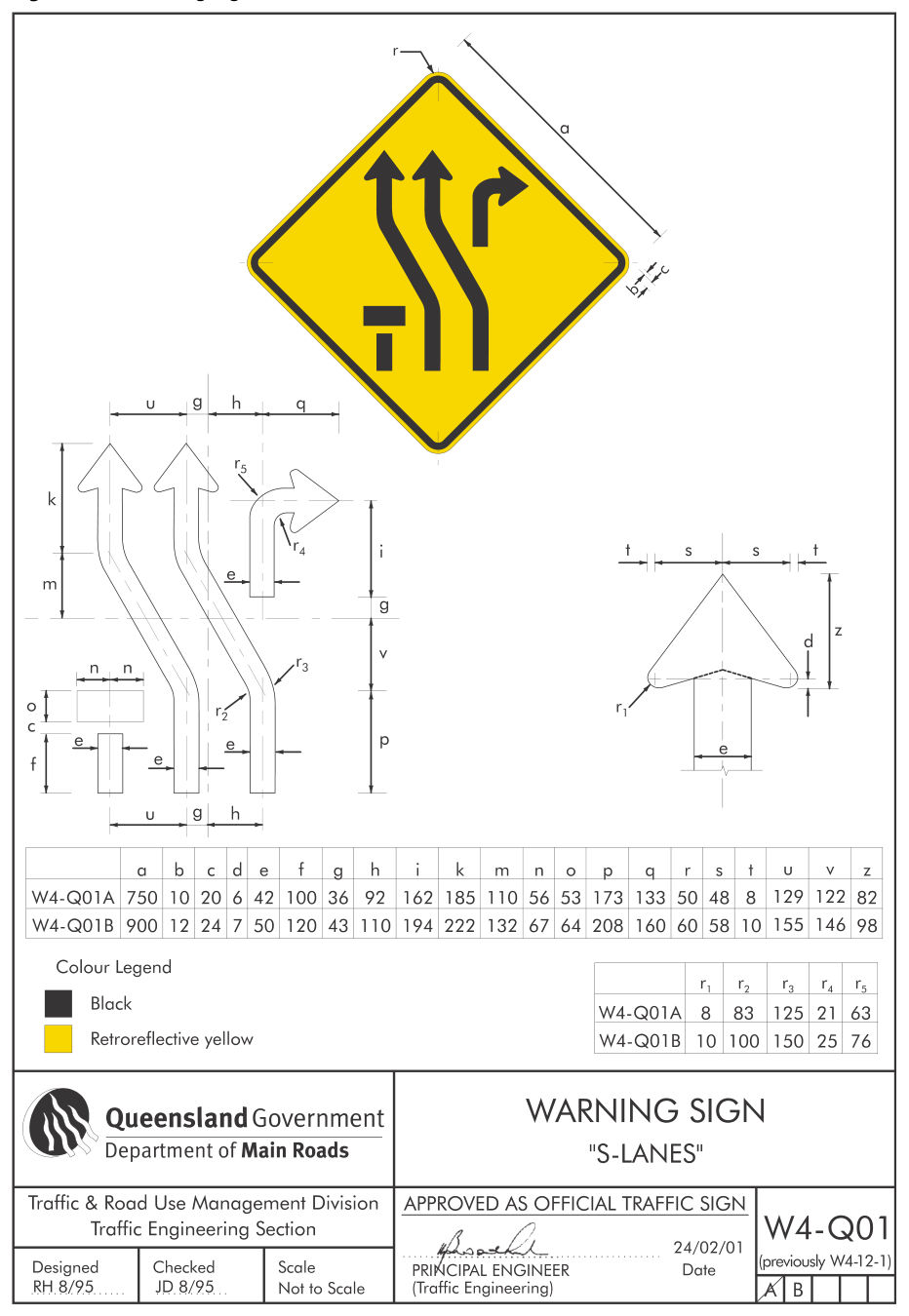

Figure 1-B – Warning sign ‘S-lanes’
Figure 1-B – Warning sign ‘S-lanes’p. 20

Drawings from the original pages

Figure A2 – 3-2-1 Green delineator set-outp. 18
