Appendix A#

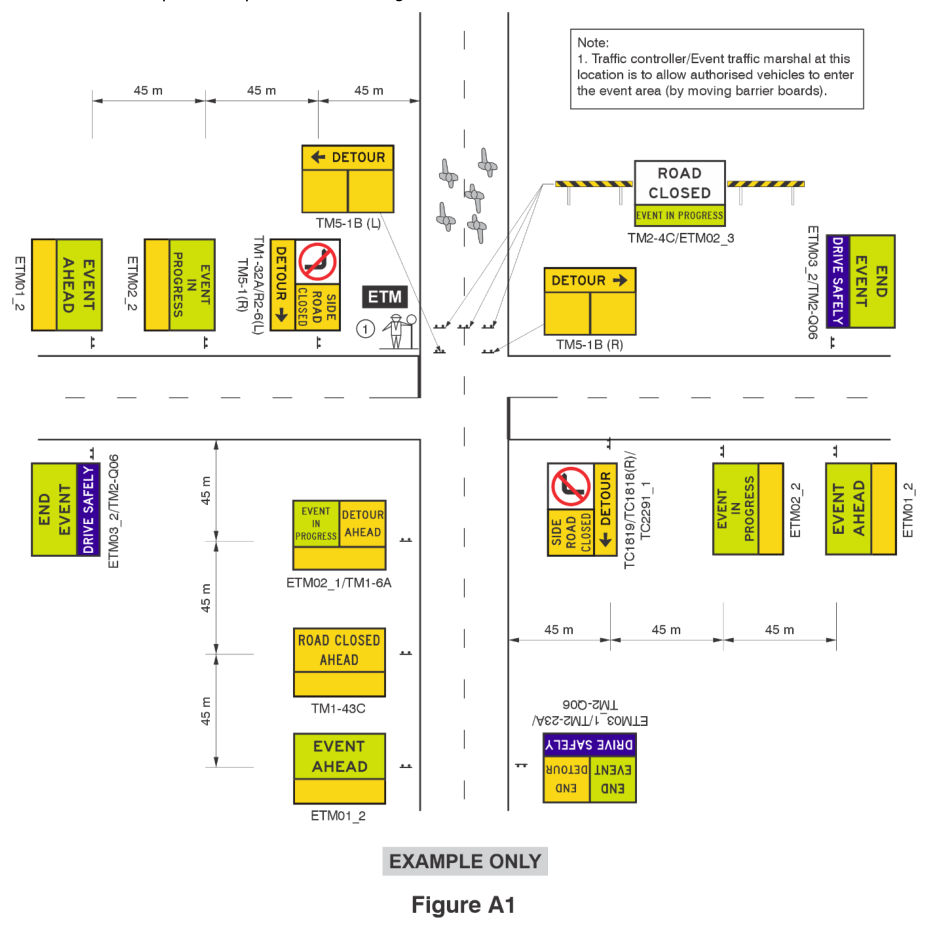

Figure A1 – Unsignalised intersection: through road closed
Figure A1 – Unsignalised intersection: through road closedp. 56

Through road closed at an intersection.

Figure A1 indicates an example of the event signs, the Queensland MUTCD Part 3 and the QGTTM signs required for this situation (based on Figure 3.4(f) for a 60km/h urban environment). The DETOUR signs will be dependent on the available detour routes around the road closure. Signs and other devices required for pedestrian management are not shown.

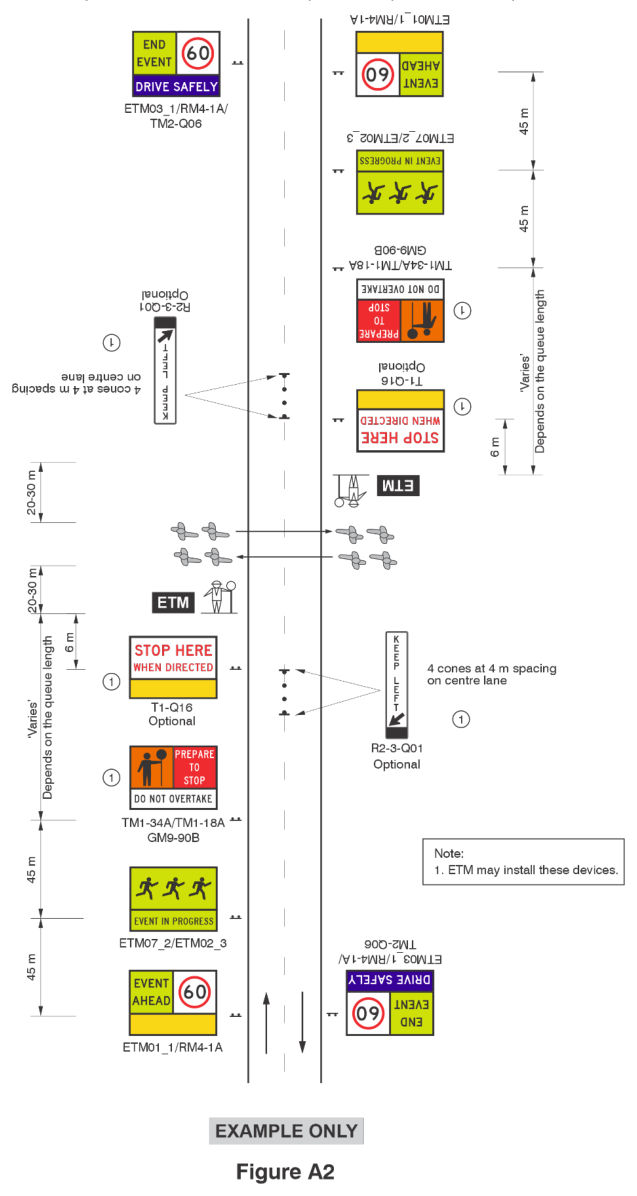

Figure A2 – Pedestrian / cyclist crossing facility: mid-block
Figure A2 – Pedestrian / cyclist crossing facility: mid-blockp. 57

Event participants crossing a road at a mid-block location (that is, away from an intersection).

Figure A2 indicates an example of the event signs, the Queensland MUTCD Part 3 and the QGTTM signs required for this situation (based on Figure 3.4(j) for an 60km/h, two-lane, two-way road. Signs and other devices required for pedestrian / spectator management are not shown.
