5.12Approved signals for traffic controllers#

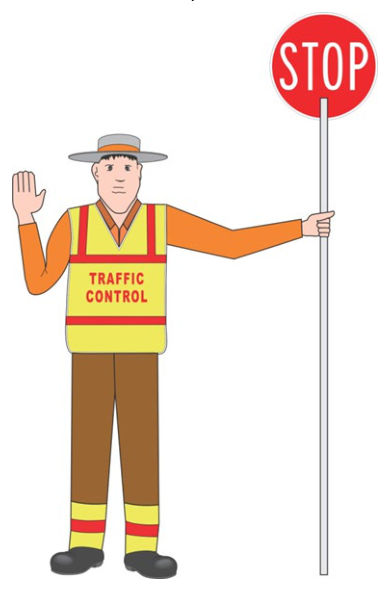

Figure 5.12(a) – Approved signals for traffic controllers
Figure 5.12(a) – Approved signals for traffic controllersp. 30

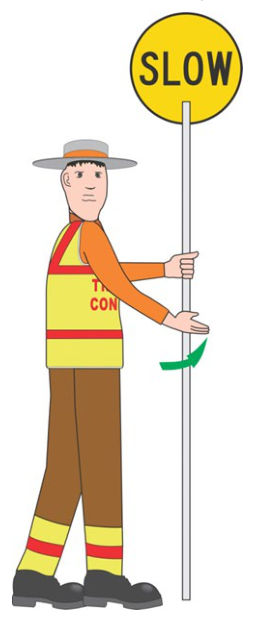

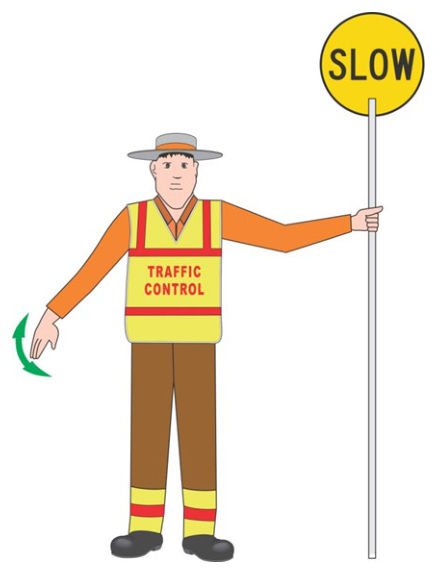

To stop traffic · To slow traffic · To direct traffic to go

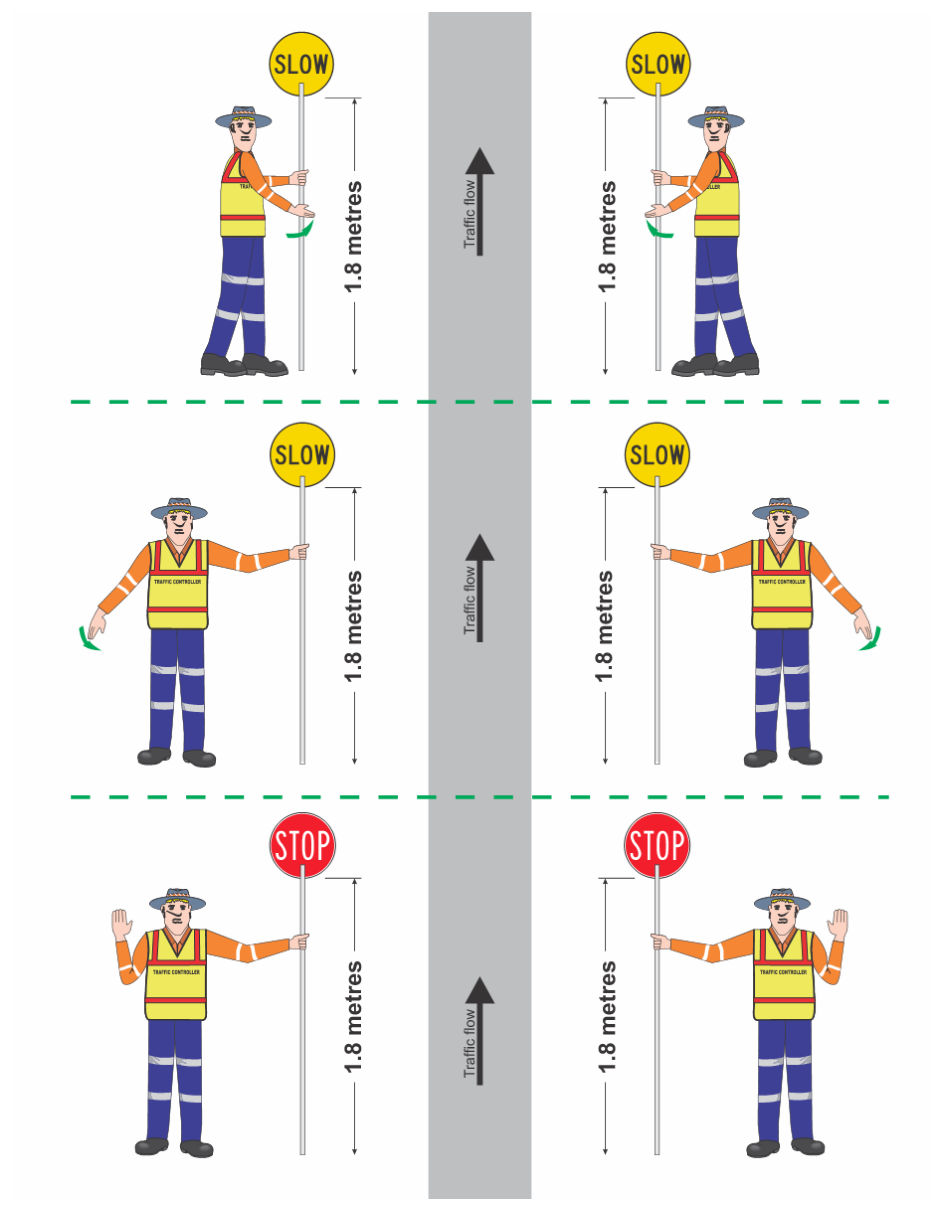

Figure 5.12(b) – Traffic controller operations showing traffic flow direction
Figure 5.12(b) – Traffic controller operations showing traffic flow directionp. 31

The bat should be displayed in the hand closest to the lane carrying traffic, unless otherwise determined by a site-specific risk assessment.

Drawings from the original pages

Drawing on page 30 of TCAS Approved Procedurep. 30Drawing on page 30 of TCAS Approved Procedurep. 30
