Appendix AAdditional multi-message signs (normative)#
A.3List of additional multi-message sign panels#
Difference
The following replaces the corresponding signs included in Table A.1 in AS 1742. These revised multi message sign panels are for use in Queensland only.
Table A.1 — List of additional multi-message sign panels
| Sign | Sign number | Size (mm) | Figure | Notes |
|---|---|---|---|---|
| ROAD PLANT ON SIDE ROAD | TM1-48C | 1200 x 600 | This sign is the same as TM1-27C. Refer to Clause 4.6.7 for requirements. | |
| SIDE ROAD CLOSED | TM2-43A | 600 x 600 | Refer to Clause 4.6.9 for requirements. | |
| WATER OVER ROAD | TM3-21A | 600 x 600 | This sign shall only be used to indicate that the road is trafficable with care although there is water over the road. |
Table A.1 — List of additional multi-message sign panels
| Sign | Sign number | Size (mm) | Figure | Notes |
|---|---|---|---|---|

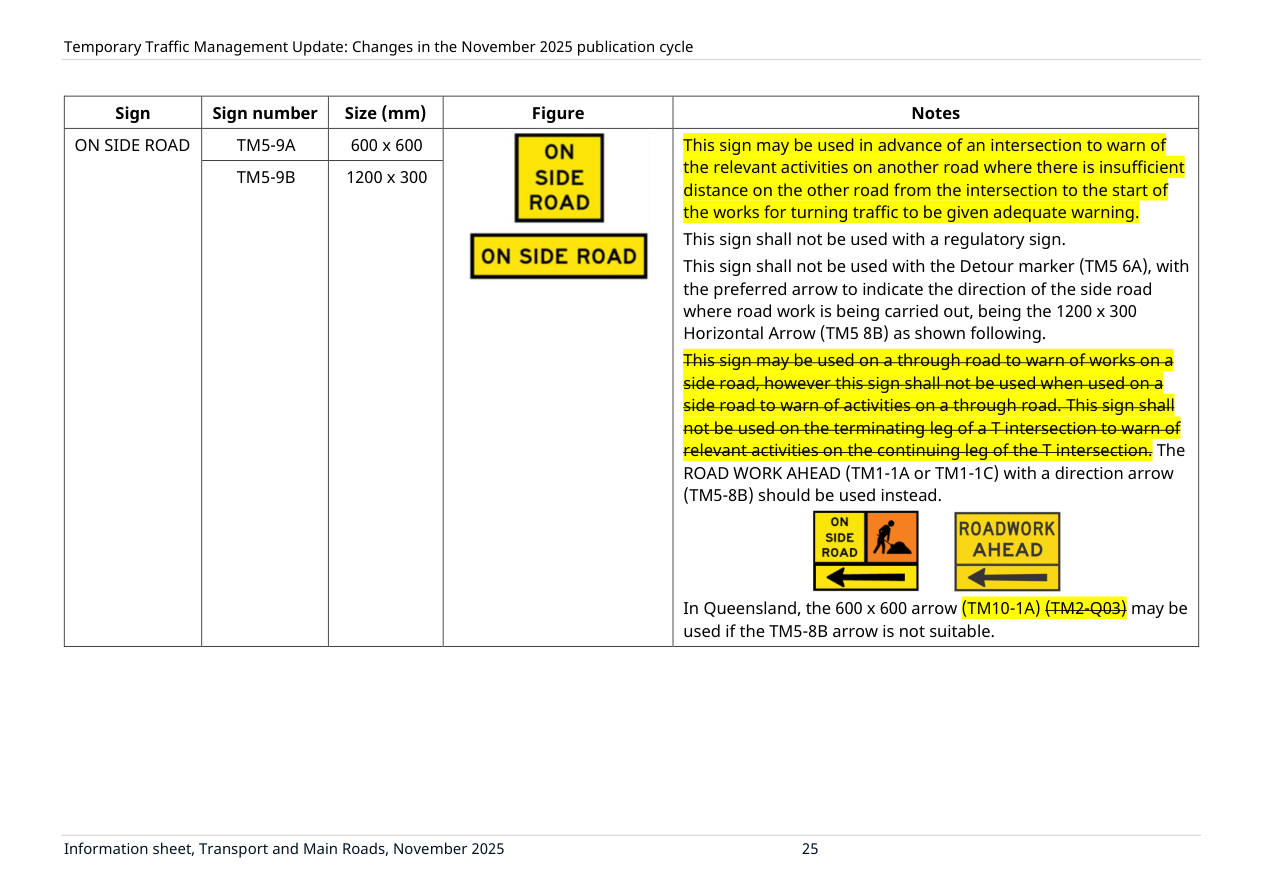

| ON SIDE ROAD | TM5-9A | 600 x 600 | This sign may be used in advance of an intersection to warn of the relevant activities on another road where there is insufficient distance on the other road from the intersection to the start of the works for turning traffic to be given adequate warning. This sign shall not be used with a regulatory sign. This sign shall not be used with the Detour marker (TM5 6A), with the preferred arrow to indicate the direction of the side road where road work is being carried out, being the 1200 x 300 Horizontal Arrow (TM5 8B) as shown following. This sign may be used on a through road to warn of works on a side road, however this sign shall not be used when used on a side road to warn of activities on a through road. This sign shall not be used on the terminating leg of a T intersection to warn of relevant activities on the continuing leg of the T intersection. The ROAD WORK AHEAD (TM1-1A or TM1-1C) with a direction arrow (TM5-8B) should be used instead. In Queensland, the 600 x 600 arrow (TM10-1A) (TM2-Q03) may be used if the TM5-8B arrow is not suitable. | |
| TM5-9B | 1200 x 300 |
Table A.1 — List of additional multi-message sign panels
| Sign | Sign number | Size (mm) | Figure | Notes |
|---|---|---|---|---|

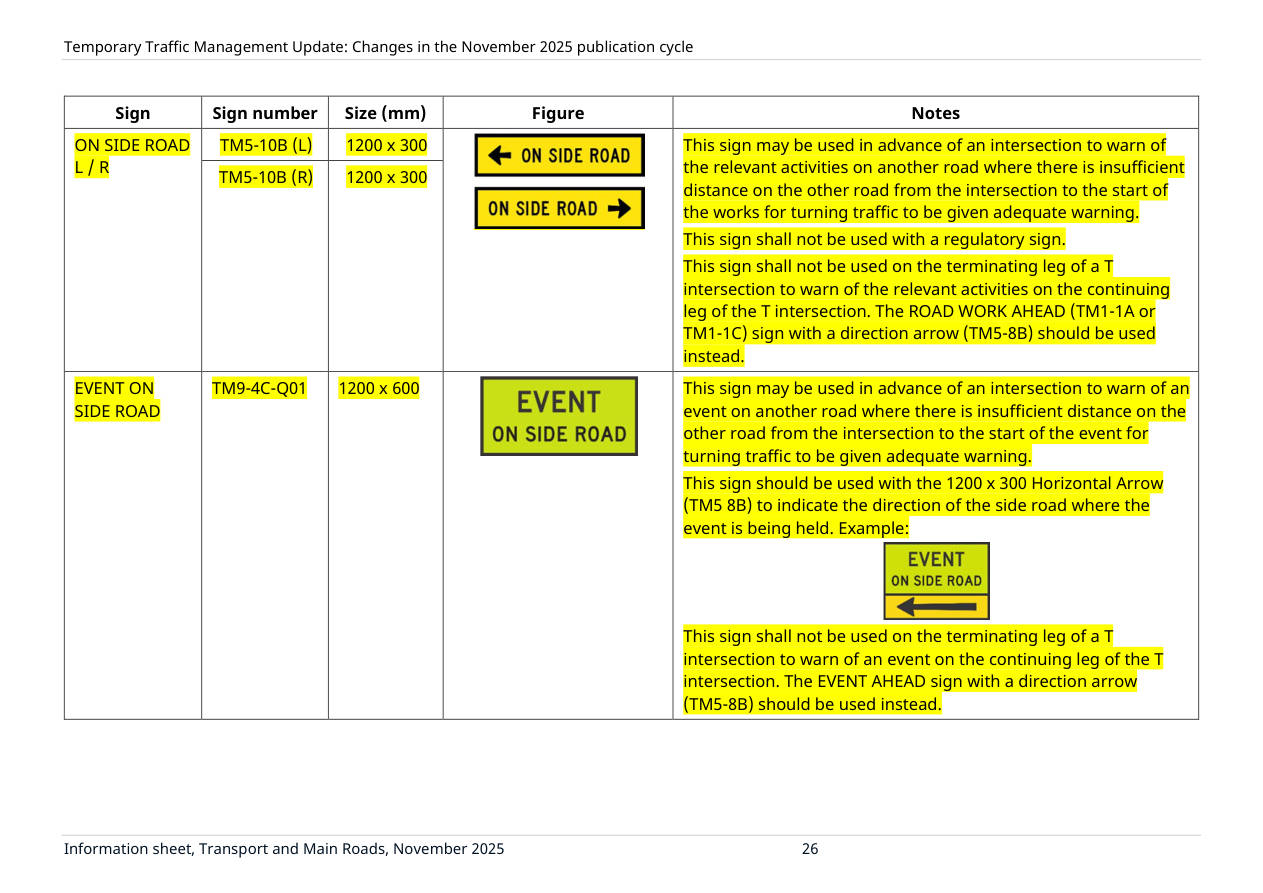

| ON SIDE ROAD L / R | TM5-10B (L) | 1200 x 300 | This sign may be used in advance of an intersection to warn of the relevant activities on another road where there is insufficient distance on the other road from the intersection to the start of the works for turning traffic to be given adequate warning. This sign shall not be used with a regulatory sign. This sign shall not be used on the terminating leg of a T intersection to warn of the relevant activities on the continuing leg of the T intersection. The ROAD WORK AHEAD (TM1-1A or TM1-1C) sign with a direction arrow (TM5-8B) should be used instead. | |
| TM5-10B (R) | 1200 x 300 | |||
| EVENT ON SIDE ROAD | TM9-4C-Q01 | 1200 x 600 | This sign may be used in advance of an intersection to warn of an event on another road where there is insufficient distance on the other road from the intersection to the start of the event for turning traffic to be given adequate warning. This sign should be used with the 1200 x 300 Horizontal Arrow (TM5 8B) to indicate the direction of the side road where the event is being held. Example: This sign shall not be used on the terminating leg of a T intersection to warn of an event on the continuing leg of the T intersection. The EVENT AHEAD sign with a direction arrow (TM5-8B) should be used instead. | |
| EVENT ON SIDE ROAD L / R | TM9-5B (L) | 1200 x 300 | This sign may be used in advance of an intersection to warn of an event on another road where there is insufficient distance on the other road from the intersection to the start of the event for turning traffic to be given adequate warning. This sign shall not be used with a regulatory sign. This sign shall not be used on the terminating leg of a T intersection to warn of an event on the continuing leg of the T intersection. The EVENT AHEAD sign with a direction arrow (TM5-8B) should be used instead. | |
| TM9-5B (R) | 1200 x 300 |
Table in words
- The sign ON SIDE ROAD L / R has sign number TM5-10B (L) and size 1200 x 300 mm; this sign may be used in advance of an intersection to warn of the relevant activities on another road where there is insufficient distance on the other road from the intersection to the start of the works for turning traffic to be given adequate warning. This sign shall not be used with a regulatory sign. This sign shall not be used on the terminating leg of a T intersection to warn of the relevant activities on the continuing leg of the T intersection. The ROAD WORK AHEAD (TM1-1A or TM1-1C) sign with a direction arrow (TM5-8B) should be used instead.
- The sign has sign number TM5-10B (R) and size 1200 x 300 mm.
- The sign EVENT ON SIDE ROAD has sign number TM9-4C-Q01 and size 1200 x 600 mm; this sign may be used in advance of an intersection to warn of an event on another road where there is insufficient distance on the other road from the intersection to the start of the event for turning traffic to be given adequate warning. This sign should be used with the 1200 x 300 Horizontal Arrow (TM5 8B) to indicate the direction of the side road where the event is being held. Example: This sign shall not be used on the terminating leg of a T intersection to warn of an event on the continuing leg of the T intersection. The EVENT AHEAD sign with a direction arrow (TM5-8B) should be used instead.
- The sign EVENT ON SIDE ROAD L / R with sign number TM9-5B (L) and size 1200 x 300 may be used in advance of an intersection to warn of an event on another road where there is insufficient distance on the other road from the intersection to the start of the event for turning traffic to be given adequate warning.
- The sign EVENT ON SIDE ROAD L / R with sign number TM9-5B (L) and size 1200 x 300 shall not be used with a regulatory sign.
- The sign EVENT ON SIDE ROAD L / R with sign number TM9-5B (L) and size 1200 x 300 shall not be used on the terminating leg of a T intersection to warn of an event on the continuing leg of the T intersection.
- The EVENT AHEAD sign with a direction arrow (TM5-8B) should be used instead of the sign EVENT ON SIDE ROAD L / R with sign number TM9-5B (L) and size 1200 x 300.
- The sign EVENT ON SIDE ROAD L / R with sign number TM9-5B (R) and size 1200 x 300 may be used in advance of an intersection to warn of an event on another road where there is insufficient distance on the other road from the intersection to the start of the event for turning traffic to be given adequate warning.
- The sign EVENT ON SIDE ROAD L / R with sign number TM9-5B (R) and size 1200 x 300 shall not be used with a regulatory sign.
- The sign EVENT ON SIDE ROAD L / R with sign number TM9-5B (R) and size 1200 x 300 shall not be used on the terminating leg of a T intersection to warn of an event on the continuing leg of the T intersection.
- The EVENT AHEAD sign with a direction arrow (TM5-8B) should be used instead of the sign EVENT ON SIDE ROAD L / R with sign number TM9-5B (R) and size 1200 x 300.

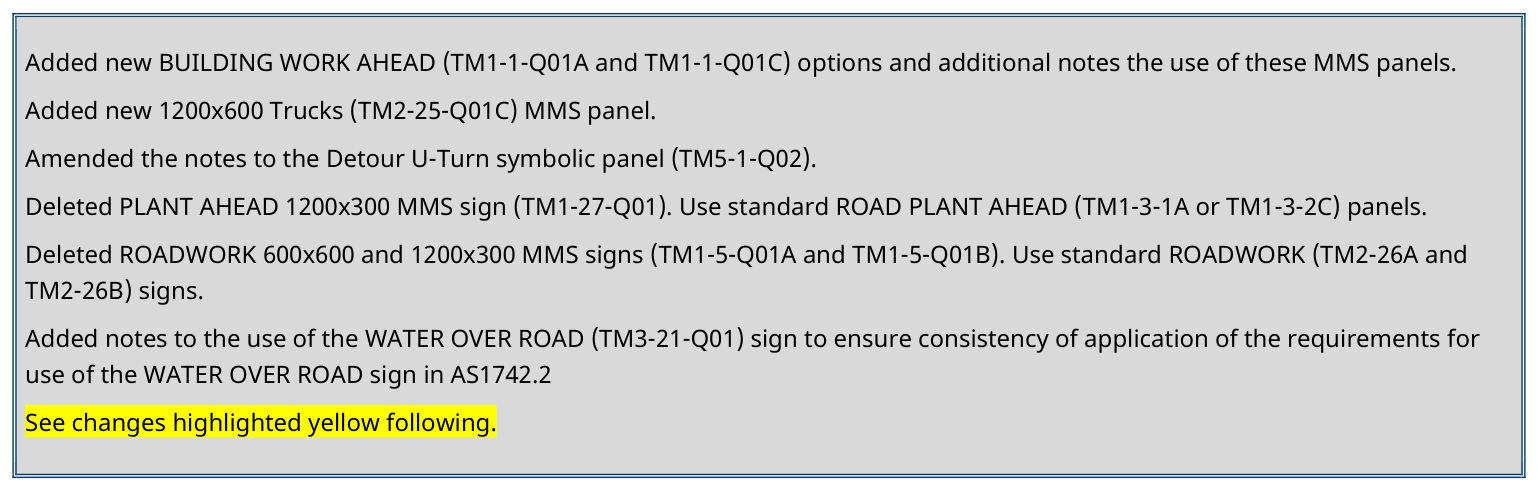

Added new BUILDING WORK AHEAD (TM1-1-Q01A and TM1-1-Q01C) options and additional notes the use of these MMS panels.
Added new 1200x600 Trucks (TM2-25-Q01C) MMS panel.
Amended the notes to the Detour U-Turn symbolic panel (TM5-1-Q02).
Deleted PLANT AHEAD 1200x300 MMS sign (TM1-27-Q01). Use standard ROAD PLANT AHEAD (TM1-3-1A or TM1-3-2C) panels.
Deleted ROADWORK 600x600 and 1200x300 MMS signs (TM1-5-Q01A and TM1-5-Q01B). Use standard ROADWORK (TM2-26A and TM2-26B) signs.
Added notes to the use of the WATER OVER ROAD (TM3-21-Q01) sign to ensure consistency of application of the requirements for use of the WATER OVER ROAD sign in AS1742.2
See changes highlighted yellow following.
Addition
The additional multi message sign panels detailed in Table A.2 are accepted for use in Queensland.
Table A.2List of additional multi-message sign panels for use in Queensland#
| Sign | Sign number | Size (mm) | Figure | Notes |
|---|---|---|---|---|
| Advance | ||||

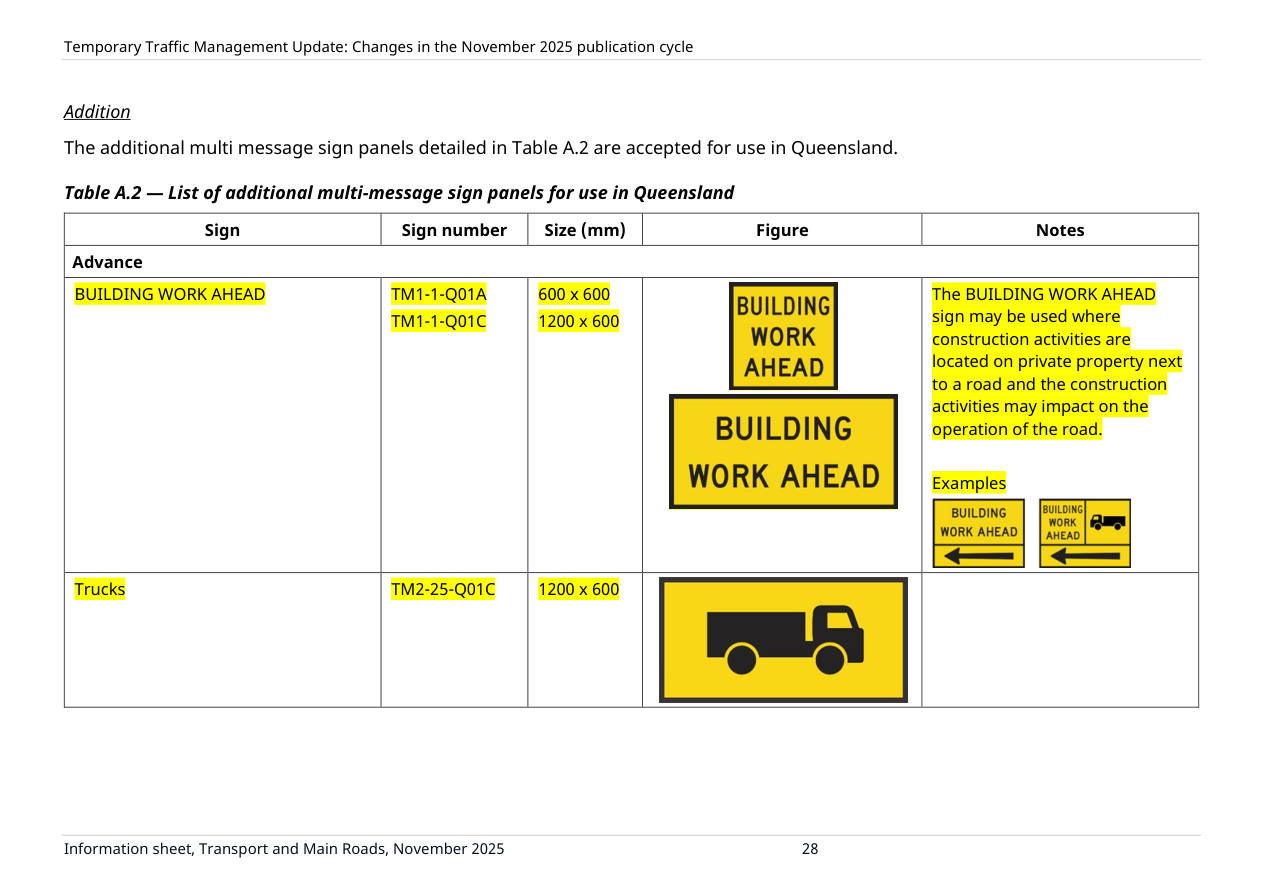

| BUILDING WORK AHEAD | TM1-1-Q01A TM1-1-Q01C | 600 x 600 1200 x 600 | The BUILDING WORK AHEAD sign may be used where construction activities are located on private property next to a road and the construction activities may impact on the operation of the road. Examples | |
| Trucks | TM2-25-Q01C | 1200 x 600 |
| Sign | Sign number | Size (mm) | Figure | Notes |
|---|---|---|---|---|

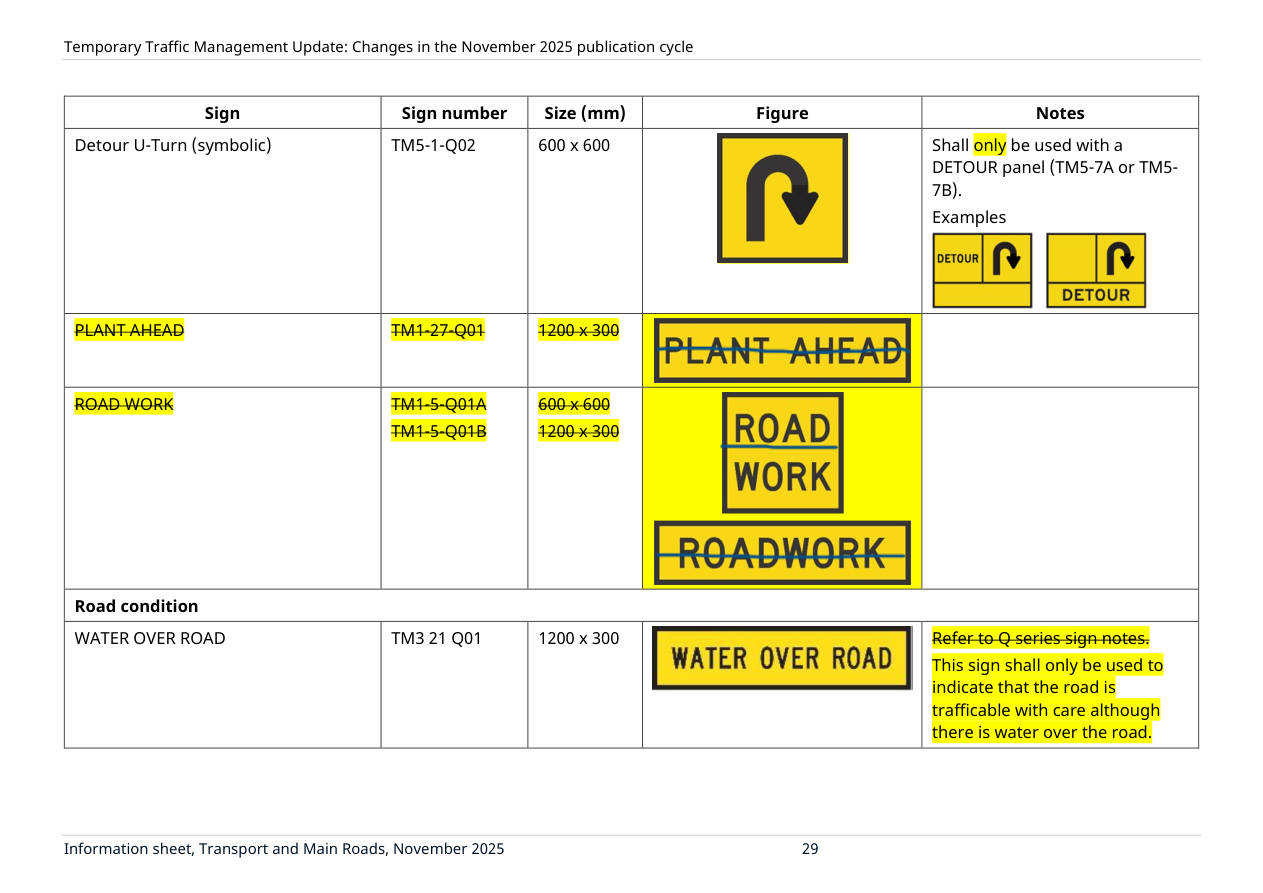

| Detour U-Turn (symbolic) | TM5-1-Q02 | 600 x 600 | Shall only be used with a DETOUR panel (TM5-7A or TM5-7B). Examples | |
| PLANT AHEAD | TM1-27-Q01 | 1200 x 300 | ||
| ROAD WORK | TM1-5-Q01A TM1-5-Q01B | 600 x 600 1200 x 300 | ||
| Road condition | ||||
| WATER OVER ROAD | TM3 21 Q01 | 1200 x 300 | Refer to Q series sign notes. This sign shall only be used to indicate that the road is trafficable with care although there is water over the road. |

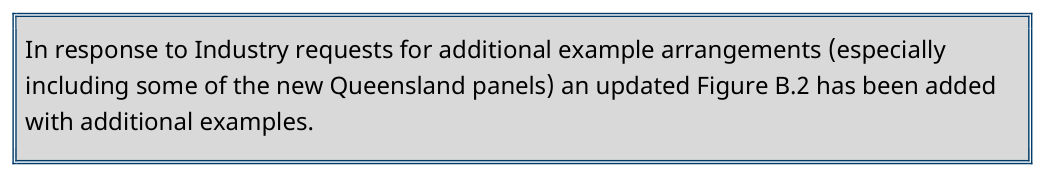

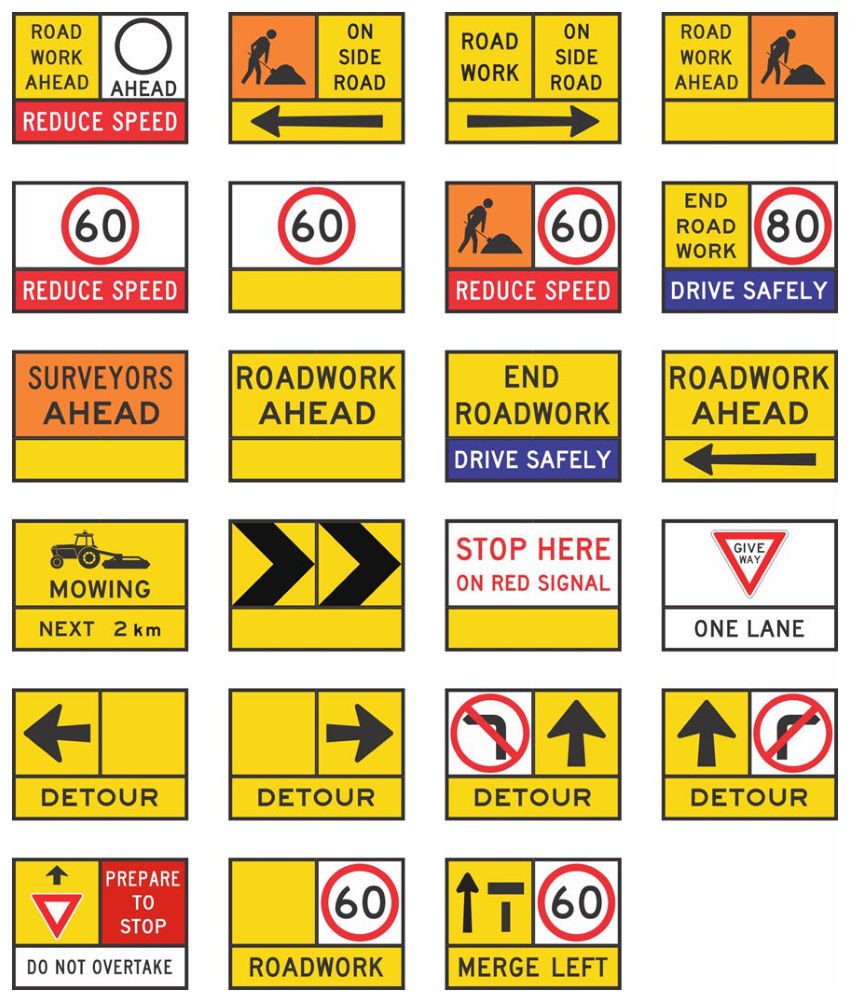

In response to Industry requests for additional example arrangements (especially including some of the new Queensland panels) an updated Figure B.2 has been added with additional examples.
