Appendix I: Sample Layouts (Worked Examples)#
Addition

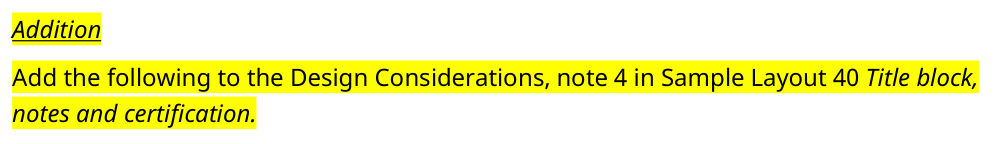

Add the following to the Design Considerations, note 4 in Sample Layout 40 Title block, notes and certification.
| The TMP and TGS(s) must be signed and dated by the person that designed it. This signature may be electronic. |
Difference
The following sample layout is not accepted in Queensland:
- Sample Layout 42 Application of AGTTM Part 3 Figure 5.1.
Addition
For worked examples and guidance on developing Traffic Guidance Schemes in Queensland, refer to TN195 Traffic Guidance Schemes worked examples.
