7.1General#

This section provides guidance on the design of direction signs for toll roads. The general design principles for direction signing of toll roads are mostly the same as for non-tolled roads.

Figure 7.1(a) provides an example of the toll road patch and colour scheme for direction signs located on or on the immediate approach to a toll road

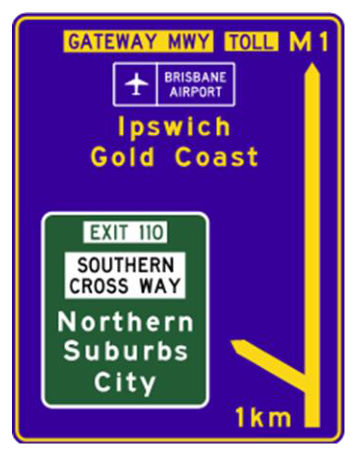

Figure 7.1(a) – Example, Toll road patch and colour scheme – immediate approach
Figure 7.1(a) – Example, Toll road patch and colour scheme – immediate approachp. 16

Figure 7.1(b) provides an example of the toll road patch and colour scheme for direction signs which are not on or on the immediate approach to a toll road, but which include information which would involve travel on a toll road.

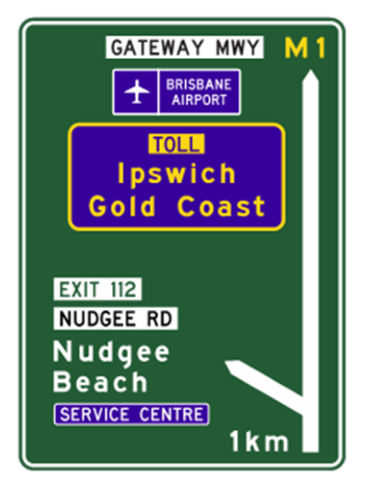

Figure 7.1(c) – Example, Toll road patch and colour scheme, not on immediate approach
Figure 7.1(c) – Example, Toll road patch and colour scheme, not on immediate approachp. 16
