7.5Stacked style direction signs#

For a stacked style direction sign:

  • the main background colour of each sign panel shall be determined in accordance with Section 7.4, based on the direction of travel in each panel
  • if the main background colour of a panel is green and this panel includes a destination(s) which is reached by travelling on a toll road and through a toll point, the destination(s) shall be in a yellow on blue patch (including the TOLL patch) – blue patches shall have a yellow border, and
  • the border between a blue background panel and a green background panel shall be yellow.

Figure 7.5 shows some examples.

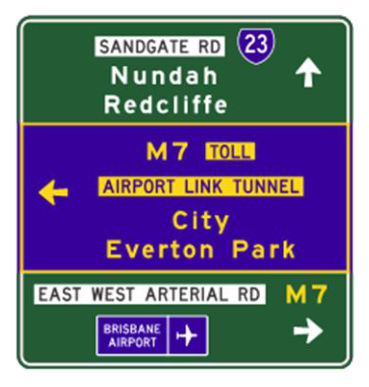

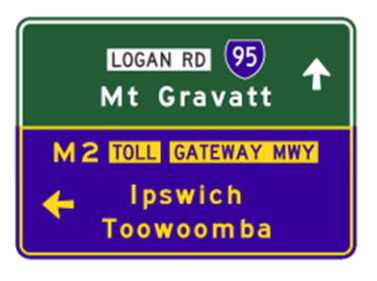

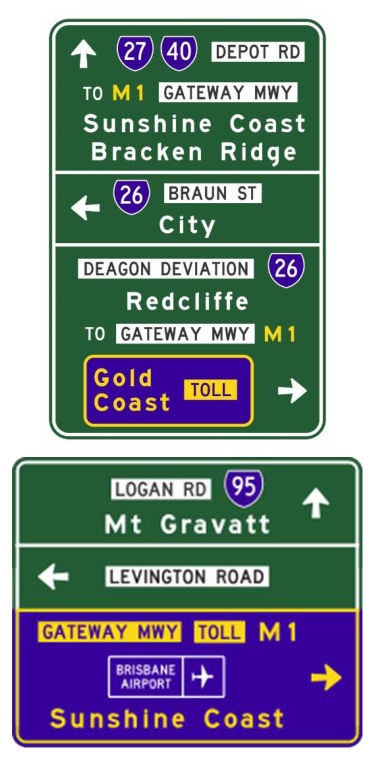

Figure 7.5 – Examples of stacked style direction signs
Figure 7.5 – Examples of stacked style direction signsp. 27
