7.8Exit direction signs#

For exit-style direction signs (including advance exit, exit direction, supplementary exit, overhead exit signs and exit signs at the gore):

  • The main background colour shall be determined in accordance with Section 7.4, based on the direction of travel indicated.
  • See sections 7.12 and 7.13 for information when a toll point is located on or near an off ramp and Section 7.14 where a toll point is located on an on ramp.
  • If the main background colour of the sign is green and this sign includes a destination(s) which is reached by travelling on a toll road and through a toll point, the destination(s) shall be in a yellow on blue patch (including the TOLL patch). Blue patches shall have a yellow border.
  • For overhead direction exit signs on the one gantry, the background colour of each individual sign is based on the direction of travel indicated.

Figure 7.8 shows examples.

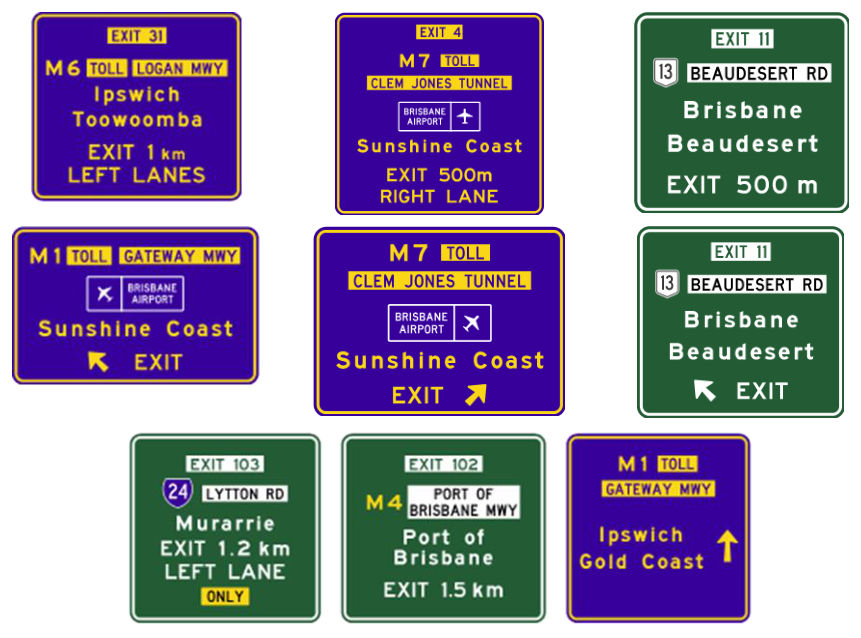

Figure 7.8 – Examples of exit direction signs (Overhead signs on one gantry)
Figure 7.8 – Examples of exit direction signs (Overhead signs on one gantry)p. 31
