7.14Direction signs for an ENTRY to a toll road with a toll point on the on ramp#

If an entry to a toll road has a toll point located on it (for example, on the on ramp), the direction signs for that entry point will be designed in accordance with Section 7.4 and the other requirements for the specific sign type. The toll point is for the toll road the driver is entering and will be signed as such. Figure 7.14 shows an example.

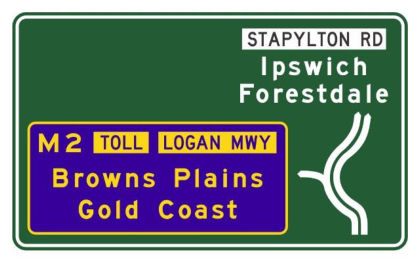

Figure 7.14 – Direction signs for an ENTRY to a toll road with a toll point on the on ramp
Figure 7.14 – Direction signs for an ENTRY to a toll road with a toll point on the on rampp. 38

Drawings from the original pages

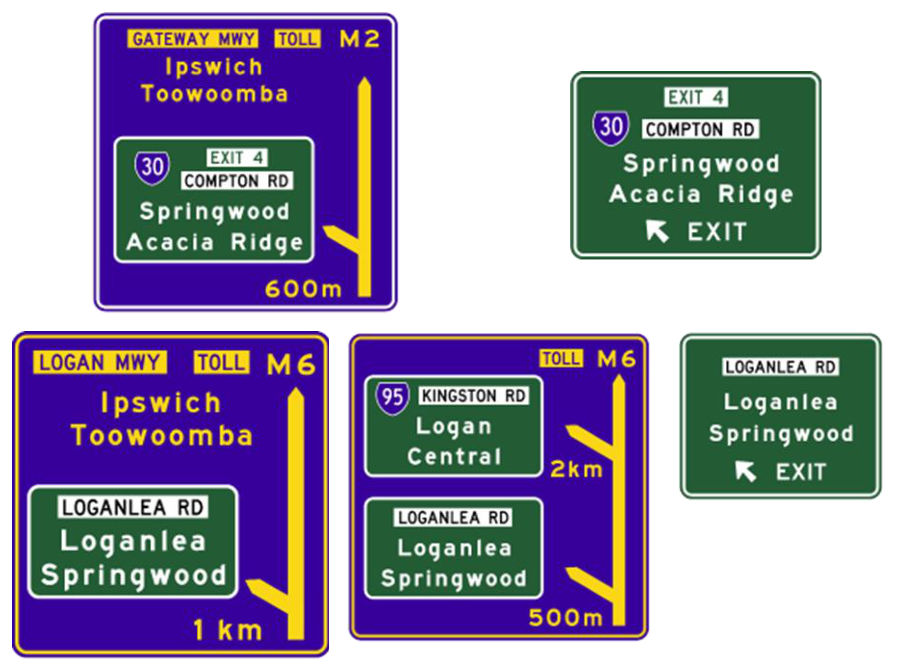

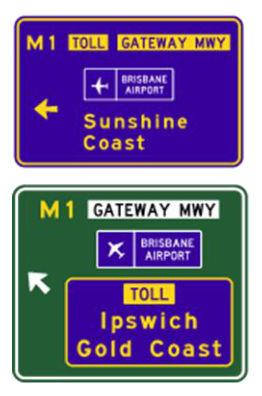

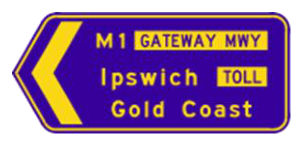

Figure 7.13 – Examples of direction signsp. 37Drawing on page 38 of TRUM Vol 3 Part 10p. 38Drawing on page 38 of TRUM Vol 3 Part 10p. 38Figure 7.15 – Examples of intersection direction signsp. 38
