7.6Diagrammatic advance direction signs#
For a diagrammatic advance direction sign:
- The main background colour of a diagrammatic advance direction sign shall be determined in accordance with Section 7.4 based on the straight ahead direction of travel.
- If the main background colour is green and includes a destination(s) which is reached by travelling on a toll road and through a toll point, the destination(s) shall be in a yellow on blue patch (including the TOLL patch). Blue patches shall have a yellow border.
- If the main background colour of the direction sign is blue and includes an exit destination(s) which is reached without travelling on a toll road (and through a toll point), all information relating to this destination(s) shall be in a white on green patch. Green patches shall have a white border.
- − If, within this white on green patch, there is a destination(s) which is reached by travelling on a toll road, all information relating to this destination(s) shall be in a yellow on blue patch (including the TOLL patch) within the background green colour patch. The blue patch shall have a yellow border.
- See sections 7.12 and 7.13 for information when a toll point is located on or near an off ramp and Section 7.14 where a toll point is located on an on ramp.

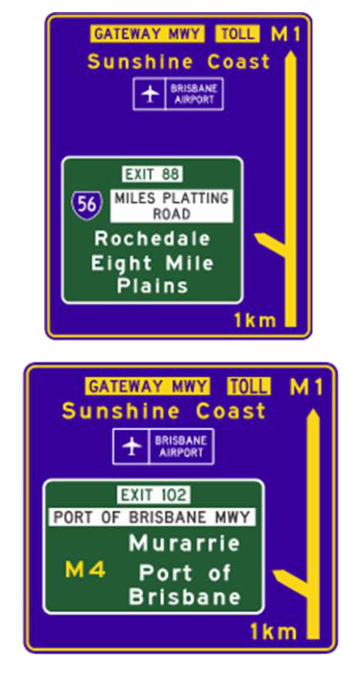

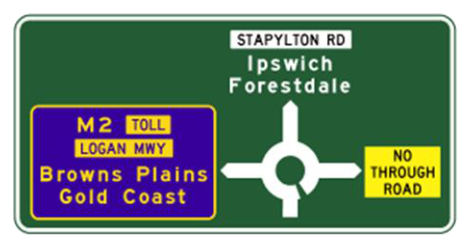

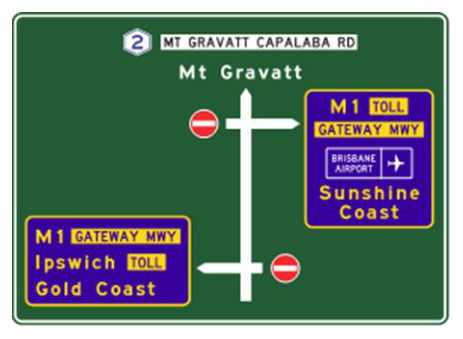

Figure 7.6 shows examples.
