7.7Overhead lane designation style direction signs#

For an overhead lane designation style sign:

  • The main background colour of each of the sign panels (above the lane arrow panel) shall be determined in accordance with Section 7.4, based on the direction of travel in each panel.
  • If the main background colour of a panel is green and this panel includes a destination(s) which is reached by travelling on a toll road and through a toll point, the destination(s) shall be in a yellow on blue patch (including the TOLL patch). Blue patches shall have a yellow border.
  • The border between a blue background panel and a green background panel shall be yellow.

Figure 7.7 shows examples.

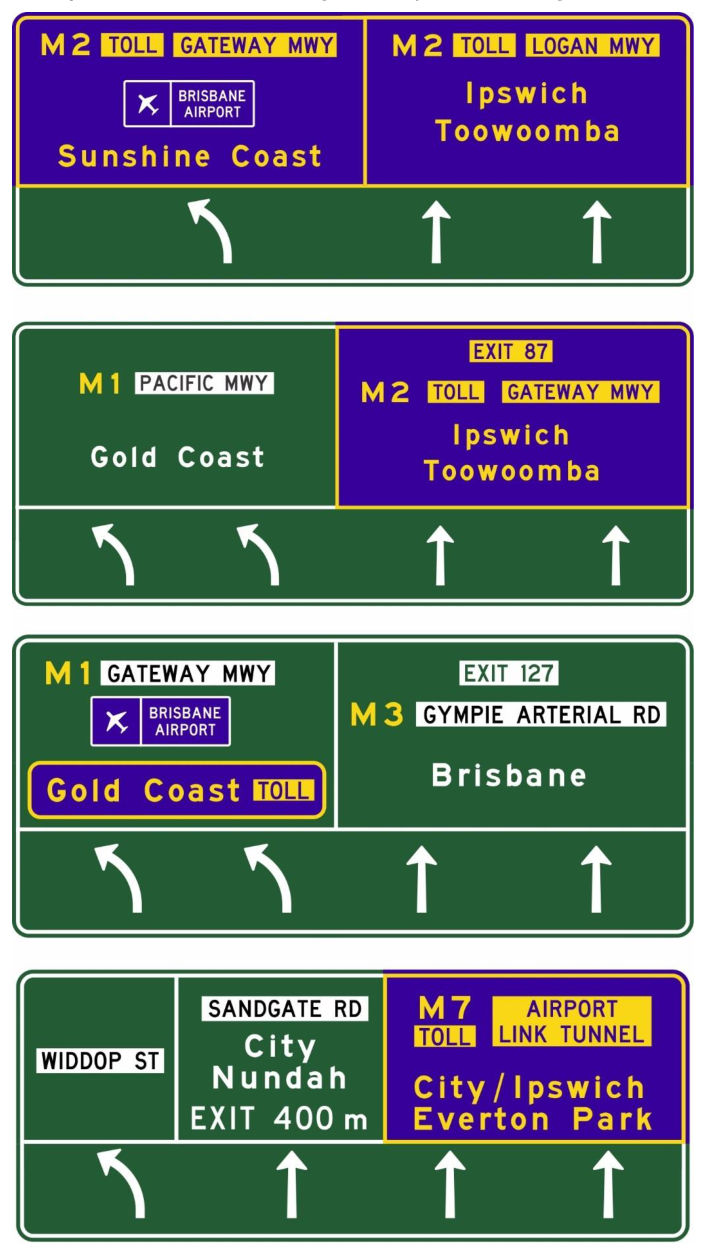

Figure 7.7 – Examples of overhead lane designation style direction signs
Figure 7.7 – Examples of overhead lane designation style direction signsp. 30
