9Install cables in ports#

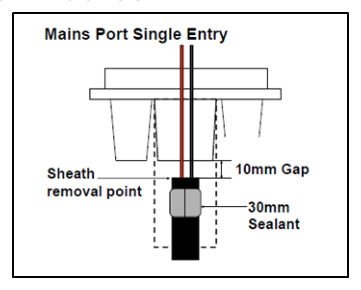

9.1Mains port – single entry (large)#
APPLY TAPE – Apply sealant tape to outer insulation.
INSERT CABLE – Place mains cable into enclosure through heat shrink sleeve, allowing a 10 mm gap from sheath cut-off point to port opening to allow for upward cable movement during heating.

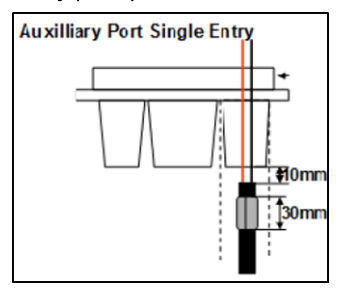

9.2Auxiliary port – single entry (small)#
APPLY TAPE – Apply sealing tape to outer sheath.
INSERT CABLE – Place cable into enclosure through heat shrink sleeve allowing a 10 mm gap from sheath cut-off point to port opening to allow for upward cable movement during heating.

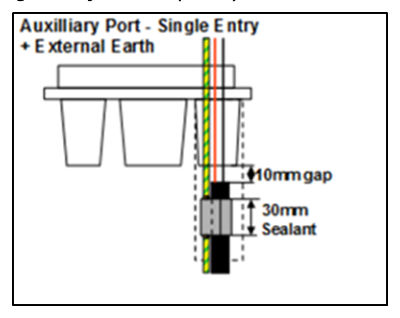

9.3Auxiliary port – single entry + earth (small)#

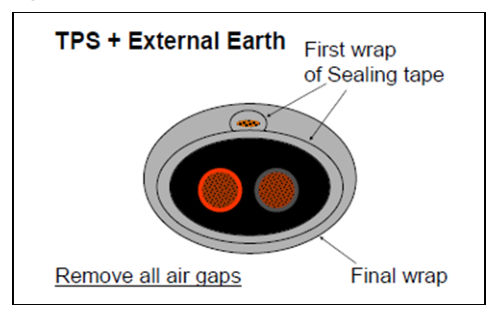

COMBINE CABLES – The external earth cable must be installed along with a TPS cable.
INSERT CABLES – Place both cables into enclosure through heat shrink sleeve, allowing a 10 mm gap from sheath cut-off point to port opening to allow for upward cable movement during heating.
